Paper Cup Machine Fully Automatic Double Wall Paper Product Making Machinery for Coffee Cup, Disposable Cup Paper Making Machine
| US$9,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CW-85S
Cup Size(Ounce)
2-12OZ
Speed
80-100pcs/min
Required Paper
Double Side PE Coated Paper
Automation
Automatic
Certification
CE
Customized
Customized
Condition
New
After-sales Service
Yes
Model
Cw-85s
Paper Cup Size
2-12oz
Paper Material
140-320G/M2
Machine Speed
Max Speed:105PCS/Min,Stable Speed :85PCS/Min
Power Source
380V 50Hz
Total Power
7.5kw
Weight
2200kg
Overall Size
2.23X1.14X1.8m
Opeartion Space
About 3000*3000mm
Specification
2.23X1.14X1.8m
Trademark
Chinaworld
Origin
China
Product Description

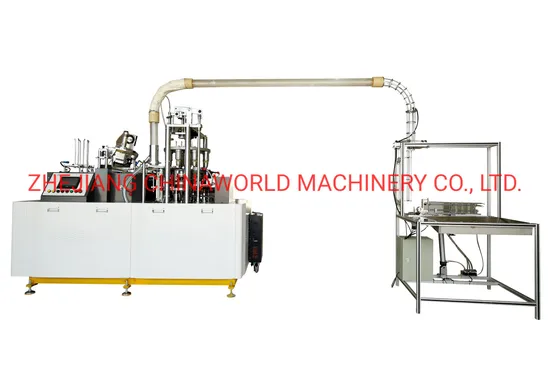

CW-85S Paper Cup Making MachineProduct Description
Machine equip with Ultrasonic,collecting table,PLC and Touch screen.
1.One disk,direct bottom
2.Auto bottom paper feeding
3.Auto waste bottom paper conveyor
4.Auto lubrication
5.High speed ,max speed 105pcs/min.stable speed 85pcs/min
6.No cup fan material alarm,
7.No cup cone alarm,
8.Drop cup alarm
Product Parameters
| Paper Cup Size | 2-12oz |
| Paper Material | 140-320g/m2,One Side PECoated Paper Or Double |
| Speed | Max Speed:105pcs/min,Stable speed :85Pcs/min |
| Power source | 380V 50HZ |
| Heating total power | 5KW |
| Main motor | 1.5KW |
| Total Power | 7.5kw |
| Weight | 2200kg |
| Overall size | 2.23X1.14X1.8m |
| Air pressure | ≤0.4MPa(used for auto bottom paper feeding) |
| Operation person | 1person and more machines |
| Opeartion space | About 3000*3000mm |
| Note | Can be customized according to your requirements |
| Configuration list | ||||
| Name | Model | Origin | Remarks | QTY |
| Main motor | CH-25-1.5 | Taiwan | Chenggang | 1 |
| Frequency converter | Em60-1.5kw | Japan | Panasonic | 1 |
| Photoelectricity | PSE17-5DN | Korea | Ottonico | 3 |
| AC contactor | 0910 | France | France | 3 |
| Thermal couple | Domestic | Huibang | 5 | |
| Temperature control instrument | AI-208G | Domestic | Yudian | 5 |
| Botton | NP2-BA31 | Domestic | Chint | 12 |
| Relay | JZX-22F(D)/2Z | Domestic | Chint | 5 |
| Switching power supply | LRS-200-24 | Taiwan | Ming Wei | 1 |
| Circuit breaker | DZ47-60 1P C10 | Domestic | Chint | 6 |
| Circuit breaker | DZ47-60 3P D60 | Domestic | Chint | 1 |
| Exchange | CJX2-1810 220V | Domestic | Chint | 5 |
| Exchange | CJX2-4011 220V | Domestic | Chint | 2 |
