Ztcl Hydraulic Manlift 18 Meter Articulated Boom Lift

Product Description

Product Description
Trailer boom lift is used for lifting equipment with high-altitude works. It can overcome the obstacles to do the aerial work, the platform can rotate 360 degrees, compact structure, flexible steering, its chassis width can ensure the equipment into the narrow channel and crowded work area. Standby power equipment can operate the work platform reset, with a convenient transport mode that can be drawn into any place. The control panel is easy to identify, multiple securities, advanced integrated hydraulic electrical integration system.
Product Parameters

Model		ZTTM-8	ZTTM-10	ZTTM-12	ZTTM-14	ZTTM-16	ZTTM-18	ZTTM-20
1	Lift height	8m	10m	12m	14m	16m	18m	20m
2	Working height	10	12m	14m	16m	18m	20m	22m
3	Load capacity	200kg	200kg	200kg	200kg	200kg	200kg	200kg
4	Platform size	900*700mm	900*700mm	900*700mm	900*700mm	900*700mm	900*700mm	900*700mm
5	Rotation	360°	360°	360°	360°	360°	360°	360°
6	Working radius	4.5m	5.5m	6.5m	8.5m	10.5m	11m	11m
7	Product length	5200mm	6300mm	7300mm	6650mm	6800mm	7600mm	6900mm
8	Product width	1700mm	1700mm	1700mm	1700mm	1700mm	1800mm	1900mm
9	Product height	1900mm	2100mm	2100mm	2100mm	2200mm	2250mm	2250mm
10	Weight	1500kg	1700kg	2000kg	2350kg	2600kg	4300kg	4450kg
11	Wind resistance level	<6 level
12	Span of outriggers	3.4*3.2m	3.7*3.45m	3.7*3.45m	3.97*4.18m	4.2*4.3m	4.97*4.76m	5.14*4.76m
13	Tyre	185/75R14C	185/75R14C	185/75R14C	215/75R16C	215/75R16C	245/75R16C	245/75R16C
14	Control model	Hydraulic control
15	Diesel power	10HP	10HP	10HP	12HP	12HP	15HR	15HR
16	DC power pack	24v/4.5kw	24v/4.5kw	24v/4.5kw	24v/4.5kw	24v/4.5kw	24v/4.5kw	24v/4.5kw
17	DC battery	4*6v180AH	4*6v180AH	4*6v180AH	4*6v180AH	4*6v180AH	4*6v210AH	4*6v210AH
18	Electric power	380v1.5kw or 220v2.2kw
19	Gasoline Engine	Honda GX200

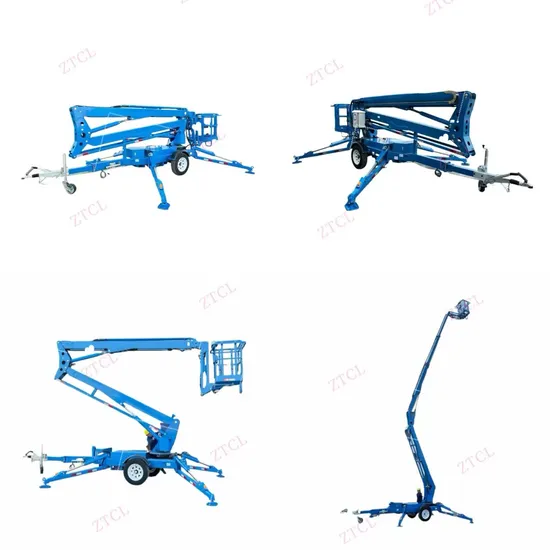

Product show

Our Advantages
1. Outriggers
Guarantee the boom lift and worker safety during working.
2. hydraulic lock
Each outrigger is installed one hydraulic lock, prevent outrigger back, in case of the hydraulic oil pipe damaged. It will protect worker safety at top platform
3. Warning alarm
During boom lift work, warning alarm will work to remind surround people mind safety
4. Turntable system
Turn able platform with big load capacity. And slewing bearing adopt fence-mounted. (could be rotated 360°)
Function:Guarantee the boom lift stability during rotation,waterproof and dust proof. IP65
We used is big, strong and durable turntable system .
5. Balance valve
There is a balancing valve on each hydraulic cylinder
Function: If the hydraulic pipe rupture, balance valve will prevent oil over flow and prevent the lift platform down suddenly.
If meet emergency situation, we could down the platform by balance valve. Boom lift with balance valve main parts imported from Italy
6. Hands prevent folder on the platform
The platform with protect bar to protect the hand from clamping, if the platform near the any obstacle.
7. Boom lock
Fixed folding boom,prevent the machine from shaking during movement. (Lock only the first arm)
8. trailing system
The function of the small wheel is to control the direction when the machine is moving manually. The little wheel will rise when the truck goes.
9. Brake
Double brake system
It is imported from Italy with two kinds brake system:
(1)Mechanical brake,One brake line connect to the truck, if the truck stop, boom lift will stop against inertia
(2)Electric brakes,Boom lift could be connect the truck brake light, if truck brake light working, the boom lift will be brake automatically.
10. Emergency stop
The boom lift will be stopped in case of any emergency

11. Trailer has need special tow hook
connect with trucking well, and move or turning smoothly.
12. Transport
10m, 12m, 14m,16m,18m,20m,22m height towable boom lift load in one 20GP container only.or 40GP load 2-3sets.
Packaging & Shipping
FAQ
Q1. What about the delivery time?
Answer: It usually takes about 10 working days after we receive the deposit.
Q2. What kind of payment do you support?
Answer: T/T, L/C, West Union, T/T is usually.
Q3. How to proceed an order for the lift?
Answer: Firstly, tell us your requirements, if you can send a photo where you will use the lift, it will be better.
Secondly, we send you our suggestions and quote according to the practical.
Q4. How to transfer the lift machine?
Answer: It is usually shipped by sea. Plywood package and LCL in a 20' container.
Q5. Is it OK to print my LOGO on the lift?
Answer: Yes. Please inform us formally before our production and send us your high pixel LOGO.
Q6. How can I get the after-sales service?
Answer: Contact with us if you have any question or need professional support. We will try to solve your problem in 24 hours, and arrange the delivery of spare parts in 48 hours.
