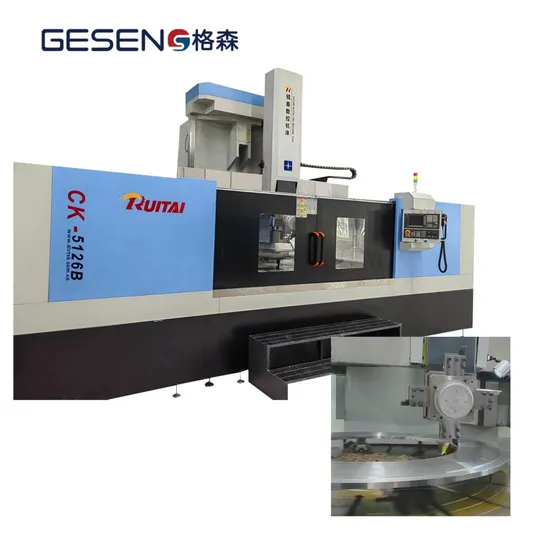

Ck5126b 2 Axis CNC Turning Machine Tools Vertical Lathe for Sale

Product Description

CNC SINGLE COLUMN VERTICAL TURNING LATHE
SINGLE COLUMN VERTICAL TURNING LATHE is suitable for:
1. High speed steel and hard alloy tools,
2. Processing all kinds of ferrous metal,
3. Non-ferrous metal and some non-metallic materials of the workpiece.

SINGLE COLUMN VERTICAL TURNING LATHE can do machining:
1. Finish roughing and fining the inner and outer cylindrical surface,
2. Inner and outer conical surface, flat surface, curved surface,
3. Grooving, threading and other processes
CK5116B turret
CK5120B turret CK5126B turret CK5116 ram

Parameters Single column CNC vertical lathe
No.	Items	Unit	CK5112	CK5116	CK5120	CK5123	CK5126
1	Worktable diameter	mm	1000	1400	1800	2000	2300
2	Max. turning diameter	mm	1250	1600	2000	2300	2600
3	Max. turning height	mm	1000	1200	1250	1350	1500
4	Max. Weight of work piece	t	3.2	5	8	8	8
5	Range of table speeds	r/min	6.3-200	5-160	4-125	3.2-100	2.5-80
6	Worktable max. torque	Kn/m	17	20	25	25	28
7	Max.cutting forceof tool post	Kn	18	25	22	25	25
8	Ram horizontal stroke	mm	700	915	1110	1210	1260
9	Ram vertical stroke	mm	650	800	800	800	800
10	Fast moving speed of tool post	mm/min	1800	2000	2000	2000	2000
11	Lift and down speed of beam	mm/min	440	440	440	440	440
12	Tool bar size	mm	40×40	40×40	40×40	40×40	40×40
13	Main motor power	Kw	22	30	30	30	37
14	Machine weight(about)	t	8.5	12.5	17.5	18.5	25

CUSTOMIZATION SERVICE
Professional machine design to meet various working demands.
Vertical tool rest/tool turret/working height/worktable/CNC or manual/color

Worktable rotary speed range 5-160r/min 4grade stepless speed change

Turret fast moving speed 2000mm/min Vertical turret max. cutting force 25Kn

HT300 worktable QT500 spindle Precision gear hobbing

Kindly contact us to get your vertical lathe machine tool.
