CNC Enclosed 3kw Dual Palllet 3000X1500 mm Fiber Laser Cutting Machine

Product Description

Princebend Laser
Fiber Laser Cutting Machine
Performances and Features
Small focusing spot, cut fine lines;
The fiber machine power consumption is only 20-30% of similar CO2 laser cutting machine. Can use air cutting all kinds of sheet metal;
Simple and friendly man-machine control interface, modular design, automatic identification mainstream mapping file; Surrounded by design. Closed outside the protection, improve the working environment cleanliness, personnel safety, operator European CE standards;

Imported ac servo drive, Fully sealed gear rack driving, Imported linear guide direction, Gantry structure, High damping lathe bed,Aluminum alloy extrusion bunton, Can withstand the high velocity and acceleration; With modern industry's leading platform switching device, Can achieve 10 seconds, double platform swaps; Standard interpublic fiber laser generator.
The service life of 100000 hours, basic maintenance free, non-contact laser cutting head configuration import capacitance height tracking system, guarantee the cutting focus position, avoid collsions with board processing.
Fiber Laser cutting machine can cut a variety of metal plates, mainly suitable for fast cutting of stainless steel, carbon steel, manganese steel, galvanized sheet, various alloy sheets, rare metals and other materials. Widely used in: kitchen electrical, sheet metal chassis, machine frame equipment, lighting hardware, advertising signs, auto parts, display equipment, various metal products, sheet metal cutting and processing industries.

Detailed Information

Main pictures:

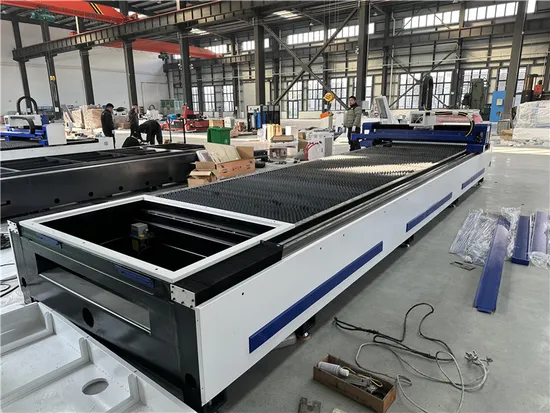

1.machine picture:

PARAMETERS: Model PM 6000W Fiber Laser cutting machine Laser Type Max Laser Wavelength 1070nm Laser Maximum Power 6000W Max. Cutting thickness Carbon steel 25mm Stainless steel 13mm Brass 8mm Total Power Consumption <40KW Working Size 3000X1500mm Max.cutting speed 0-80m/min(Depending on the material and thickness) X, Y, Z Axis Orientation Precision ≤±0.05mm/m X, Y, Z Axis Repeat Precision ≤±0.03mm /m Min line width ≤0.15mm Maximum Empty Running Speed 120m/min Driving way Japanese Fujiservo motors system Transmission way Y-axis imported gear rack double driver, X-axis imported ball screw Cooling System Water Cooling Continous working time 24 Hours Environment temperature 0-35°C Power requirements 220V /50Hz or 60Hz

Applications: High precision Metal material cutting (Fine cutting for precision parts and various crafts, cutting surface is bright and clean, no need subsequent treatment)

Our Services
(1) 36 months quality guaranty
(2) free lifetime maintenance
(3) free training course in our factory.
(4) 18 hours on line service each day
(5) Strict quality control,3 times of testing
(6) engineers avaiable to go abroad
FAQ
Price : Give me reply, i will give you my favorable price immediately !
Payment term : 30% deposit and the balance paid against copy of B/L in 3 days .
Package : Standard exporting package .
Operation manual and video disc :
When delivery machine, the related operation instruction of model will delivery together with machine. And in the instruction, there is teaching video disc .
After-sales service :
1.machine is simple, generally, user can understand how to operate. There is operation instruction and disc .
2.welcome to our factory to learn how to operate our machine, we will give good training .
3.our engineer is available for user. If there is requirement, our engineer can go to user factory, and adjust machine, give good training to user .
Contact us:0086-19121690215
