Dt-8806s Non-Contact IR Thermometer Clinical Forehead Body Infrared Thermometer for People

Product Description

DT-8806S Non-Contact IR Thermometer Clinical Forehead Body Infrared Thermometer For People
Non-Contact Clinical Forehead Infrared Thermometers
Non-Contact Forehead IR Thermometer is specially designed to take the body temperature of a person regardless of room temperature.
Safety Conformance
• ASTM E1965-1998
• EN 980: Graphical symbols for use in the labeling of devices
• EN 104: Information supplied by the manufacturer with devices
• EN 60601-1: electrical equipment Part 1: General requirements for safety (IEC: 60601-1:1998)
• EN 60601-1-2: electrical equipment Part 1-2: General requirements for safety Collateral standard Electromagnetic compatibility Requirements and test (IEC 60601-1-2:2001)
General description
The 8806 is specially designed to take the body temperature of a humanbeing.
For this, use the BODY mode.You can also use the 8806 to measure the temperature of an area for anobject, a food, a liquid or a room temperature.
For this, use the SURFACE TEMP mode.
Features l Precise non-contact measurements
l Selectable Body and Surface temp
l User selectable ºC or ºF
l Set Alarm value
l Memorization of the last 32 measurements
l Automatic Data Hold & Auto power off
l Automatic selection range and Display Resolution 0.1ºC(0.1ºF)
l Backlight LCD display
Field of View
Meter's field of view is 5---15CM, other distances are shown below in the field of view diagram.
Refer to the chart printed on the meter for more information.
Technical Data

Body Temp range	30.0 to 43ºC/86ºFto 109ºF
Surface Temp range	0 to 60ºC(32ºFto 140ºF)
Basic Accuracy	+0.3ºC/+0.6ºF
Measuring distance	5-15CM
RESPONSE TIME	0.5 second
OVER RANGE INDICATION	LCD will show "HI"/"Lo"
EMISSIVITY	0.95 fixed value
SPECTRAL RESPONSE	6~14um
POWER OFF	Automatic shut off after 7 seconds, approx.
OPERATING TEMP.	0ºC to 50ºC (32ºFto 122ºF)
STORAGE TEMP.	-20oC to 60oC(-4oF to 140oF)
RELATIVE HUMIDITY	10%~90%RH operating, <80%RH storage
POWER SUPPLY	9V battery, NEDA 1604A or IEC 6LR61, or equivalent

Note: Accuracy is given at 23 oC to 28 oC (73 oF to 82 oF), less than 80%RH. Emissivity: 0.95 fixed value Field of View: Make sure that the target is larger than the unit's spot size. The smaller the target, the closer you should be to it. When accuracy is critical, make sure the target is at least twice as large as the spot size.

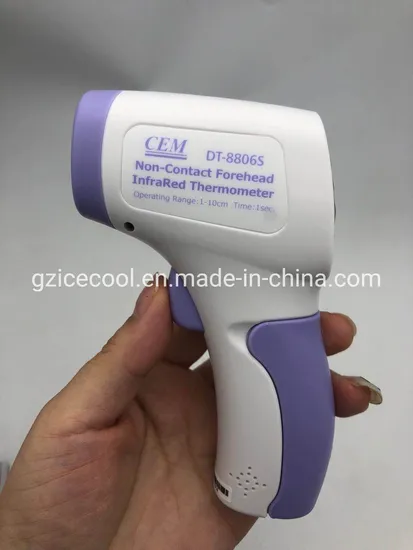

Product Photos
FAQ 1. Where is your company?
we are located in Guangzhou, the capital city of Guangdong Province, near to Shenzhen, Foshan & Hong Kong, very convenient for shipping.
2. How about the MOQ?
1 unit is ok.
3. Shipping methods and lead time?
By Express: 5-7 working days to your door (DHL, UPS, TNT, FedEx...).
By Air: 7-10 working days to your airport.
By Sea: Pls advise your port of destination, the exact days will be confirmed by our forwarders, and the following lead time is for your reference.Europe and America (25 - 35 days), Asia (3-7 days), Australia ( 16-23 days).

4. What is the term of Payment?
T/T, L/C,Western Union, Paypal;
30% T/T in advance,70% before delivery.

5. What are your main products?
Compressor;
Refrigeration gas;
Refrigeration spare parts ;
Cold room panels and equipments .

6. Packaging & Shipping:
Packing: wooden pallet, wooden case or with outer carton, or as per customers' specific requirements
