Crushing Plant Impact Crusher Series Mobile Crusher in Small Size for Quarry

Product Description

NFI

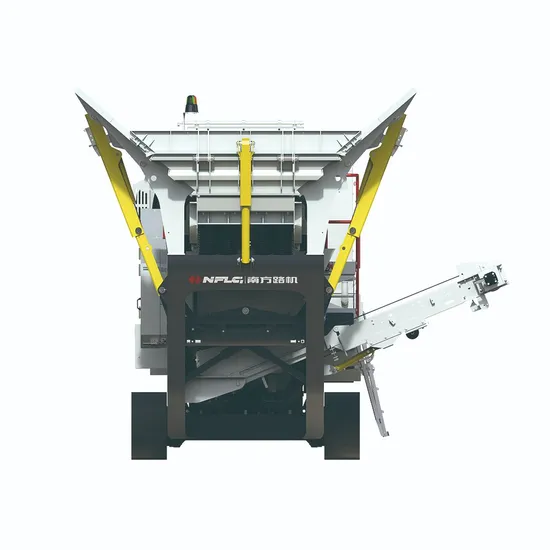

Series Tracked Mobile Impact Crusher
NFLG tracked mobile impact type crusher, equipped with the latest upgrade IH series counterattack broken rotor-heavy-duty type rotor and crushing cavity, and the perfect combination of high wear-resisting material, in the limestone, dolomite, soft hardness, low abrasive natural materials such as coal mine and construction when broken solid waste recycling can show the large crushing ratio and high production capacity. At the same time, high quality finished materials are produced Product Description
Product Parameters

Model	Crusher		Feeding port dimension(mm)	CSS of upper impact plate(mm)	CSS of lower impact plate(mm)	Drive method	Power	Transportation dimension(m)	Weight(t)
NFI1111	IH1111	320	1130×800	60-150	20-75	clutch direct drive	242	14.5×2.6×3.5	32.8 standard configuration
NFI1111RS	IH1111	320	1130×800	60-150	20-75	clutch direct drive	242	16.3×3.1×3.5	41.4 standard configuration
NFI1313	IH1313	420	1060×1100	40-330	20-185	Hydraulic coupling drive	328	14.7×3.0×3.8	49 standard configuration
NFI1313RS	IH1313	420	1060×1100	40-330	20-185	Hydraulic coupling drive	328	17.3×3.2×3.8	59 standard configuration
NFI200RS	IH1213	450	1300×850	120-300	5-100	Hydraulic coupling drive	371	20×3.6×3.77	67 standard configuration

Detailed Photos
Famous brand engine provides power, stable and reliable;
Industry advanced bearing type multi cylinder cone structure, large capacity, low energy consumption, low failure rate;
Adjust the CSS in real time without stopping;
Liner wear automatic calibration, record and display, with reminding replacement function;
Ultrasonic level monitor the crushing chamber, real-time control of feeding speed, maximum feeding;
The feeder is equipped with a metal detection device to automatically detect and protect the crusher;
Various chamber types of crushing machine can be selected to meet different application requirements;
PLC intelligent control system, intelligent operation, save time and effort.
Company Profile
After Sales Service
FAQ
1 : Are you original manufacture?
A:Yes. we are NFLG, an official leading manufacture in construction machinery in China.
Core products cover:
A. Asphalt Mixing, Concrete Mixing and Dry Mortar Mixing (Engineering Mixing);
B. Mobile Crusher & Screen, Stationary Crusher & Screen and Sand Making and Shaping Equipment (Materials Processing);
C. Construction Waste Processing Solution, Waste Sludge & Soil Recycling Solution and Decoration Waste Processing Solution(Construction Waste Processing).
2:What kind of payment can be accepted?
A:Normally we can work on T/T term or L/C term.
3:Do you provide equipment operation training?
A:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
4:What about the delivery time?
A:45 days after receving the deposit
5:What about the warranty time?
A:12 months after shipment
6.What about the Minimum Order Quantity?
A:The MOQ is 1 pcs.
