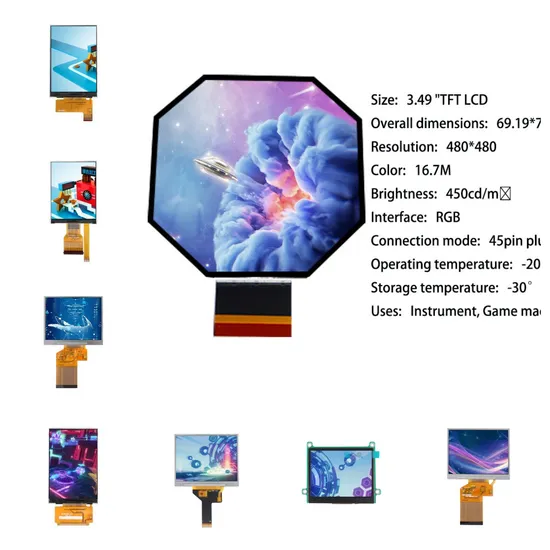

Manufacturers on Sell 3.5-Inch 480X480 240X320 320X480 640X480 1440X1600 LCD Display Industrial Control Panels Screen

Product Description

Introduction The 3.5inch TFT-LCD Module is a Color Active Matrix TFT LCD panel using LTPS (Low Temperature Poly-silicon) TFT's (Thin Film Transistors) as an active switching devices. This module has a 3.5 inch diagonally measured active area with 1440*1600 resolutions (1440 horizontal by 1600 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type. Features High PPI Fast response time High frame ratio High luminance, low reflection and wide viewing angle RoHS,Halogen Free Compliant Application
Virtual Reality Device Augmented Reality Device
General Specification

LCD Active Area	59.4(H) × 66.0(V) mm
Screen size	3.5 (88.79mm) inch diagonally
Number of pixels	1440(H) × 1600(V) pixels 615 ppi
Pixel pitch	13.75(H) × 41.25(V) um
Pixel arrangement	RGB stripe
Display colors	16.7M colors
Interface	MIPI DSI (Video Mode)
LCM Outline Dimension	62.2(H) × 73.6(V) × 1.7 (T) mm

Absolute Maximum Ratings

Items	Symbol	Rating
Logic voltage	VDDI	-0.3 to +1.8 V
Positive Analog Power Supply Voltage	AVDD	-0.3 to +5.7 V
Negative Analog Power Supply Voltage	AVEE	- -5.7 to +0.3 V
LED forward current	ILED	50 mA each LED 10% on duty
Humidity (ambient temeprature=Ta)	Ta≤55ºC, 90% RH Max.

Note 1: If the module exceeds the absolute maximum ratings, it may be damaged permanently. Also, if the module operated with the absolute maximum ratings for a long time, its reliability may drop. It is not allowed for any of these ratings to be exceeded. Make sure all the design characte ristics are adequate before the panel is initialed. Note 2: Temperature and relative humidity range are shown in the figure below. Wet bulb temperature should be 39 ºC max. and no condensation of water.
