CNC Aluminum Window Machine for Drilling Holes Slots

Product Description

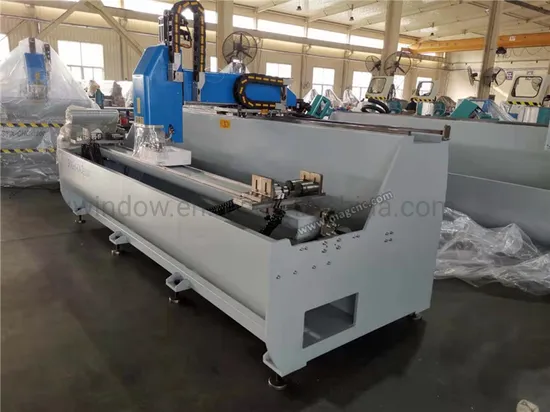

Aluminum CNC Drilling Machine SKX-CNC-3000
Product Description
1. The machine is used for drilling holes, milling grooves, processing round holes and special-shaped holes,plane engraving of aluminum alloy profiles.
2. Adopted Taiwan Syntec CNC Control system.
3. Adopted the electric spindle, high precision, high safety and reliability.
4. X axle adopts high precision helical gear and rack, Y and Z axiss adopt high-precision ball screw trassmission, steady transmission and high precision.
5. By using programming software to transform and process G code automatically, easy operation, high efficiency and low labour intensity.
6. workbench can turn 180°,-90°0°+90°, it can realize material three-sides section processing by clamping one time, it can process deep and special-shaped holes through workbench turning, high efficiency and precision
Product Parameters

Parameter
Air Pressure	0.5~0.6MPa
X/Y/Z Axis stroke	3000mm*300mm*280mm
Input Voltage	380V 50Hz or As Customer need
Input Power	3Kw
Handle type	ER25*Φ8
Processing range	100*140
Overall size	4000×1500×1950mm
Weight	1300kg

Main accessory
Control system	Taiwan Syntec
Solenoid valve	Germany
Cylinder	PC( Joint Venture Brand)
Motor	Anhui Sanyang (Best Chinese Motor Brand)
Air Filter Device	STNC
Electrical Button and Switcher	FAMOUS BRAND
AC Contactor and Circuit Breaker	FAMOUS BRAND
Approach Switch	Taiwan Delta
Guide rail	Taiwan Hiwin

Remarks
1. All the electrical elements,Circuit breaker protection and AC contactors are world famous brand.
2. International CE standard high flexibility, high shielding cables.
3. Warranty time: 1 year
4. Quotation Valid: 90 days
5. Payment terms: 30%T/T as deposit, 70% balance made before shipment by T/T
6. Delivery time: 30 days upon receipt of 30% deposit by T/T
7. Packaging: Film packaging and fumigation-free wooden case(if delivery by full container load, then without wooden box, just use the tray)
8. After sales service:
1)24 hours service on Internet and Telephone, free instructions and problem solving
2) Free training to make sure a master of the operating of cnc router for the person who come to our factory
3)User-friendly English manual or operating video for machine using and maintaining
4) on-the-spot training, installation and repairing can be met if required.(If so, need the buyer afford the visa and air ticket and 100USD/DAY Salary)
