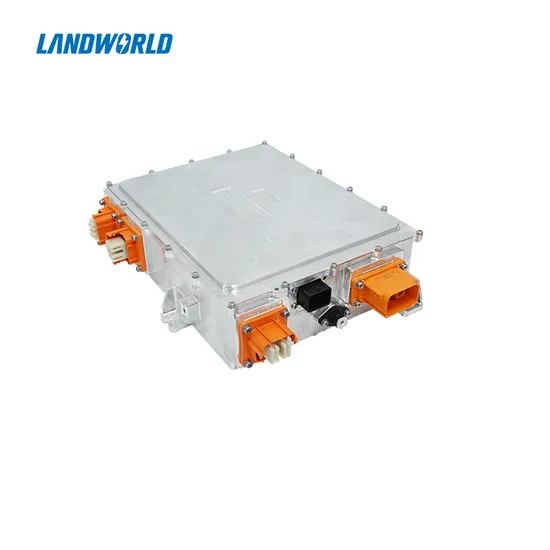

Landworld 11kw Obc+3kw DC/DC+PDU EV DC/DC Charger Samll Size Passenger Car
| US$3,500.00-4,000.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
LW3HD3KCB11KB-D14C380-W
Usage
EV Power Supply
Specification
350x214x197mm
Trademark
LANDWORLD
Origin
China
Packaging & Delivery
Package Size
40.00cm * 40.00cm * 40.00cm
Package Gross Weight
10.500kg
Product Description
Product Features: Body Size: 350x214x197mm Weight:≤18KG Cooling method:Liquid cooled, flow rate≥8L/min IP rating:IP67 Support inverter function Support on-line upgrading and fault diagnosis Compatible with single and three phase charging station Full digital software design, Redundant protection function design Main Technical Parameters
| Items | Technical Specification | Remarks | |
| DCDC | OBC | ||
| Nominal output power | 2.5kW | 6.6kW | |
| Input Voltage | 250-450Vdc | 90-264Vac | |
| Output voltage range | 14Vdc | 200-450Vdc | |
| Voltage accuracy | ±0.2Vdc | ±1% | |
| Output current | 180A | 20A | |
| Current accuracy | ±1% | ±1% | |
| EFF | ≥94% | ≥94% | |
| Voltage ripple | ≤500mVPK-PK | \ | |
| Inverter features | |||
| Input voltage range | 200-450Vdc | ||
| Output voltage | 220Vac(±5%)/50Hz | ||
| Power | 6.6kVA | ||
| Efficiency | ≥93% | ||
| Output harmonics(THDv) | <3%(LINERAR LOAD) | ||
| Dynamic response | 60ms(LINERAR LOAD) | ||
| Leakage current protection threshold | ≤30mA | ||
| Other Electrical Features | |||
| Operating temp. | -40-80ºC/-40-65ºC | Coolant inlet temperature | |
| Low voltage wake-up | 12/24Vdc(200mA WAKE_UP signal)/CAN,CC/CP,AC | Wake up BMS/VCU | |
| emc | GB/T 18655-2010,EN 55022 | ||
| Interface | CC,CP,CC_Out,European standard and American Standard | ||
