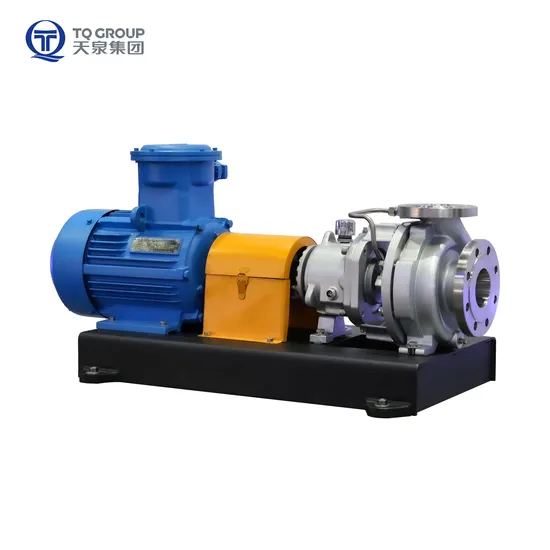

1.5 Inch Ti ISO Chemical Process Centrifugal Pump with Stainless Steel 304/316/316L for Petroleum & Oil & Gas
| US$800.00-4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TI 40-25-125/160/200
Max.Head
>150m
Max.Capacity
>400 L/min
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
High Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Horizontal Split Pumps
Mounting Height
Suction Centrifugal
Impeller
Semi-Open
Usage
Pump
Standard
ISO2858 / ISO5199
Material
Staineless Steel/ Duplex Stainless Steel
Motor Frequency
50Hz/60Hz
Mounting Type
Foot Mounted
Configuration
Long Coupled
Sealing Type
Mechanically Sealed
Transport Package
Wooden Case
Specification
650*450*660
Trademark
tqpumps
Origin
China
HS Code
84137099
Packaging & Delivery
Package Size
50.00cm * 50.00cm * 50.00cm
Package Gross Weight
50.000kg
Product Description
Product DescriptionTI ISO chemical process pumps conform to ISO 2858 and ISO 5199 design standards and aim to solve the most demanding fluid applications. The wet end material can be cast steel, stainless steel, duplex stainless steel, and special materials upon request.
It is primarily used in boiler feed, acid transfer, pulp and paper, food and beverage processing, pharmaceuticals, mining, wastewater treatment, seawater, and other special chemical media applications.
Product Structural Drawing
| Item No. | Part name | Material | Standard | Application |
| 1 | Pump casing | Ductile cast IRON QT400-18 | GB/T 1348-2019 | By contract |
| Cast carbon steel ZG230-450 | GB/T 11352-2009 | |||
| Austenitic stainless steel | GB/T 2100-2017 | |||
| Super duplex stainless steel | JB/T 6405-2018 | |||
| Ultra-low carbon high alloy austen stainless steel | GB/T 2100-2017 | |||
| 2 | Impeller | Cast iron HT250 | GB/T 9439-2010 | By contract |
| Austenitic stainless steel | GB/T 2100-2017 | |||
| Super duplex stainless steel | JB/T 6405-2018 | |||
| Ultra-low carbon high alloy austen stainless steel | GB/T 2100-2017 | |||
| 3 | Pump casing cover | Ductile cast IRON QT400-18 | GB/T1348-2019 | By contract |
| Cast carbon steel ZG230-450 | GB/T 11352-2009 | |||
| Austenitic stainless steel | GB/T 2100-2017 | |||
| 4 | Sealing gland | Super duplex stainless steel | JB/T 6405-2018 | By contract |
| Ultra-low carbon high alloy austen stainless steel | GB/T2100-2017 | |||
| 5 | Shaft sleeve | 20Cr13 | GB/T1221-2007 | Standard configuration |
| Ultra-low carbon high alloy austen stainless steel | Optional | |||
| 6 | Shaft (solid) | 316 stainless steel | GB/T 2100-2017 | Standard configuration |
| Super duplex stainless steel | JB/T 6405-2018 | Optional | ||
| Shaft (with shaft sleeve) | carbon steel 45 | GB/T699-2008 | Standard configuration | |
| 7 | Seal | Single end, double end,cartridge | Optional | |
| 8 | Middle Bracket | HT250 | Standard configuration | |
| ZG230-450 | ||||
| carbon steel | Optional | |||
| 9 | Bearing Bracket | HT250 | Standard configuration | |
| ZG230-450 | ||||
| carbon steel | Optional | |||
| 10 | Adjustable bearing block | ZG230-450 | GB/T 11352-2009 | Standard configuration |
| 11 | Supporting Foot | Q235 | GB/T 700-2006 | Standard configuration |
Product Advantage
Impeller Design
Each pump is available with a semi-open impeller or a reverse vane impeller, which are fully interchangeable. The semi-open impeller is the preferred choice for fibrous and high-viscosity applications. In contrast, the reverse vane impeller has an external micrometer impeller adjustment, ideally suited for hazardous processes.
Advanced Seal Design
TI is available with single, double, or cartridge mechanical seals to suit application requirements.
External micron-level impeller adjustment device
The innovative external micron-level impeller adjustment device is easy to use to reduce maintenance time and cost.The device is superior to top wire adjustment by accurately setting the reverse blade impeller clearance in 20 seconds, both in the workshop and in the field.
Model Meaning
Hydraulic Coverage
Product Parameters
| Pump Model | Impeller structure | Flow (m³/h) | Head (m) | Speed (r/min) | Efficiency (%) | Shaft Power* (kW) | NPSHr (m) |
| 40-25-125 | F | 17 | 20 | 2900 | 48 | 1.930 | 1.0 |
| R | 17 | 20 | 48 | 1.930 | 1.0 | ||
| 40-25-160 | F | 12 | 6 | 1450 | 29 | 0.677 | 0.4 |
| R | 11 | 5.6 | 24 | 0.699 | 1.3 | ||
| F | 20.6 | 28 | 2900 | 48 | 3.275 | 1.1 | |
| R | 21.2 | 24 | 46 | 3.014 | 1.5 | ||
| 40-25-200 | F | 13 | 11 | 1450 | 38.5 | 1.012 | 0.9 |
| R | 13 | 10 | 35 | 1.012 | 1.4 | ||
| F | 24 | 46 | 2900 | 49.5 | 6.078 | 2.1 | |
| R | 24 | 42 | 50 | 5.494 | 5.9 |
