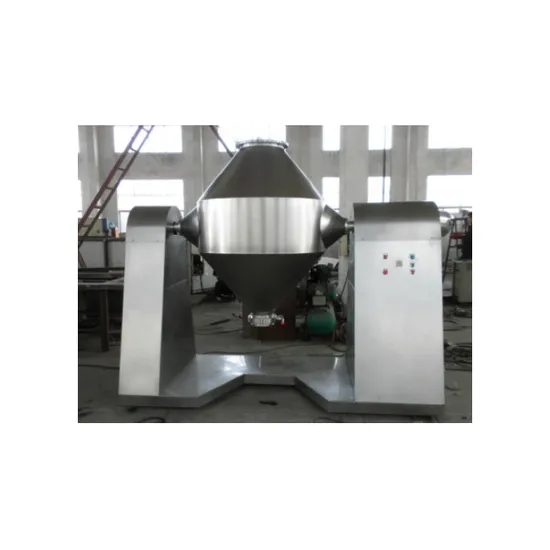

500L Szh Series Double Cone Blender
| US$9,200.00-20,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
SZH series
Application Area
Agricultural Chemicals
Certification
CE, ISO
Condition
New
Control System
Button Control
Cooling Method
Air Cooling
Heating Method
Electric Heating
Main Material
Stainless Steel
Mixing Capacity
250-500L
Speed Control
Dual Speed
Speed Range
30-39 R/min
Stirring Type
Diving
Temperature Control
With Cooling System
Working
Diffusion Mixer
Brand Name
Unimach
Model
Szh
Layout Type
Horizontal
Mixing Drum Shape
Double Cone
Operating Type
Cycle Operating
Mixer Type
Double Cone Blender
Transport Package
Wooden Case
Specification
ISO GMP
Trademark
SUPM
Origin
China
Production Capacity
500 Sets/Year
Packaging & Delivery
Package Size
1.25cm * 0.45cm * 1.06cm
Package Gross Weight
160.000kg
Product Description
500L Szh Series Double Cone BlenderApplications
It is suitable for mixing the powder and grain state materials in pharmaceutical, chemical, food,
Building materials and other industries.
This mixer/blender/agitator is used for mixing/blending/agitating some powders/granules together, this mixer/blender/agitator is applicable for pharmaceutical, chemical, foodstuff, feed, pigment and electronic industries and etc. It has remarkable effect in mixing powders and particles with relatively good fluidity.
Features
Through the vacuum conveyor the machine, send the powder or grain state materials into the double-taper container, or send the materials into the container manually.
It's energy saving, easy for operation, the labor tensity is low, and the working efficiency is high.
| Model | Total Volume | Loading Volume (kg/batch) | Mixing Time | Barrel Speed | Motor | Weight | Overall dimension (L × W × H) |
| SZH-30 | 30L | 15L | 8-15min | 15(rpm) | 0.37kw | 160kg | 1250*450*1060(mm) |
| SZH-100 | 100L | 50L | 8-15min | 15(rpm) | 1.1kw | 220kg | 1620*500*1480(mm) |
| SZH-300 | 300L | 150L | 8-15min | 15(rpm) | 1.1kw | 280kg | 1800*600*1850(mm) |
| SZH-500 | 500L | 250L | 8-15min | 15(rpm) | 3kw | 320kg | 1900*650*1850(mm) |
| SZH-1000 | 1000L | 500L | 8-15min | 12(rpm) | 4kw | 550kg | 2500*800*2050(mm) |
| SZH-1500 | 1500L | 750L | 8-15min | 12(rpm) | 5.5kw | 950kg | 2850*1050*2450(mm) |
| SZH-2500 | 2500L | 1250L | 8-15min | 12(rpm) | 11kw | 1200kg | 3400*1100*3100(mm) |
| SZH-4000 | 4000L | 2000L | 8-15min | 10(rpm) | 15kw | 1880kg | 3200*1300*3600(mm) |
| SZH-6000 | 6000L | 3000L | 8-15min | 10(rpm) | 18.5kw | 2350kg | 3500*1300*3800(mm) |
| SZH-8000 | 8000L | 4000L | 8-15min | 10(rpm) | 22kw | 3200kg | 5500*1300*4380(mm |
