Hot Sale Plastic Extruder Machine for Making PVC HDPE PPR Pipe Tube UPVC Door Board Window Profile WPC Decking Ceiling Wall Panel with Factory Price

Product Description

Product Description
Conical twin screw/ double screw plastic extruder machine for PVC WPC
Description:
Conical twin-screw extruder(SJZ series) is composed of barrel, screw, gear transimssion system, measurable feeding, vacuum system, heating, cooling and electronic control components.
It is mainly used in plasticizing,extruding and forming PVC pipe, plate, sheet, film, profile, and granule, etc.
Advantages:
1. Low shearing rate, uneasy degradation,plasticization uniform and agglomeration.
2. Reliable quality ,wide application range and long servicing life.
3. Automatic temperature control, vacuum gas exhaustion, oil cooled screws.
4. forced feeding and self-cleaning mechanism.

Model	Motor Power(kw)	Capacity(kg/h)
SJSZ 51/105	18.5	80-120
SJSZ 55/110	22/30	120-180
SJSZ 65/132	37	200-250
SJSZ 80/156	55	350-400
SJSZ 92/188	90/110	600-800
SJSZ 110/220	160	950-1100

Single screw plastic extruder machine for PP PE HD LD PPR PC ABS PET etc. Description:
Single Screw Plastic extruder is used for producing PE pipe, PP-R pipe, HDPE tube, PVC hose and so on, also it can be used for recycling and making plastic pellets like PE/PP/ABS/PET etc.

Model	Motor Power(kw)	Capacity(kg/h)
SJ 45	11	30-35
SJ 50	15	45-50
SJ 65	55	180-250
SJ 75	110	400-500
SJ 120	160	1000-1200

Machine Application:
Used for making plastic pipe
Used for making plastic profile
Used for making plastic sheet/board
Used for pelletizing system for making PVC/PP PE/PET granules
Detailed Photos

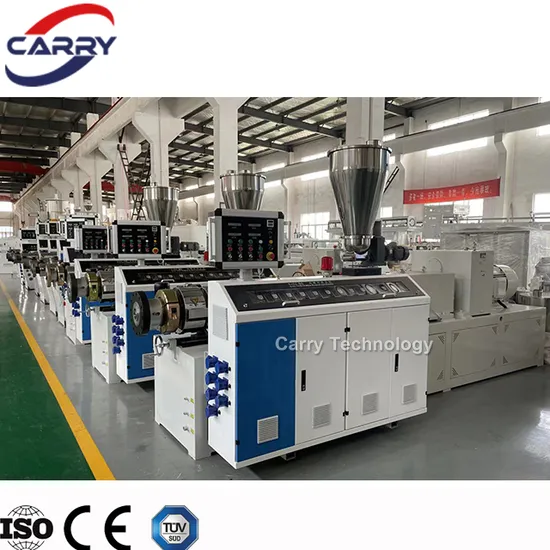

Plastic extruder machine
Single screw extruder
Double screw extruder
Screw and barrel of SJSZ double screw extruder
1. Coninal twin screw, material is Bimetallic.
2. Barrel front part wraps copper wire to control the barrel temperature, which is good for producing high intensive designed products, such as PVC windows and doors profile.
3. Screw core adopt oil temperature control.
Barrel Heater:
We have aluminium heater / ceramic heater / energy saving far-infared heater for your choice.
Gear box reducer :
We have horizontal type and vertical type for your choice.
Our machine main motor is Siemens brand, inverter ABB, temperature controller Omron, all international famous brand components:
Related Machines
You may also like, click for more details
PVC pipe production line HDPE/PPR pipe production line PVC compounding pelletizing line

Company Profile
Certifications
Customer Cases
Welcome to visit my factory to check machine
1.5 hours driving time from Shanghai to my city
Packaging & Shipping

FAQ
Q: What about the payment terms?
----Always 30% down payment as deposit,70% balance payment after inspection before shipping.
Q: What is your guarantee time?
----Our guarantee time is 12 months.
Q: If you will send engineer coming to our factory to install and test the machines?
----Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q: If you have CE,SGS,ISO certificate?
----Yes,except these,if you also need other certificates,we also can help to apply.
Q: If we buy your machines, can you offer us wear-out spare pats?
----Yes,We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q: What is the machine voltage?
----380V 50hz 3 phase or any other voltage according to client's requirement.
