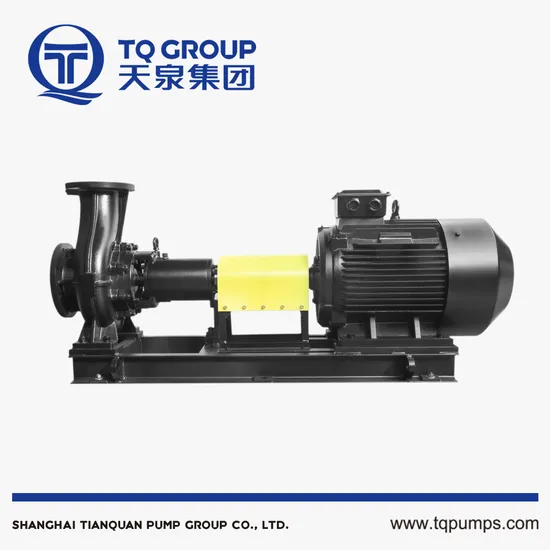

Tqpumps Twx Horizontal End Suction Centrifugal Pump Water Pump Long-Coupled DN300 Variants -1450rpm Nkg Substitutes 12inch
| US$2,000.00-4,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
300TWX52-200/4
Max.Head
10-30m
Max.Capacity
300-400 L/min
Driving Type
Motor
Impeller Number
Single-Stage Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Horizontal Pump
Mounting Height
Suction Centrifugal
Impeller
Closed
Usage
Pump, Pumps, Circulating Pump
Pump Case Material
Ductile Iron
Diameter of Suction
350
Iameter of Discharge
300
Standard
ISO2858
Transport Package
Wooden
Trademark
Tian Pump
Origin
China
HS Code
8413701010
Packaging & Delivery
Package Size
2890.00cm * 789.00cm * 670.00cm
Package Gross Weight
780.000kg
Product Description
Product DescriptionTQ PUMP TWX end-suction long-coupled pumps are non-self-priming, single-stage, centrifugal volute pumps with axial-suction port, radial-discharge port, and horizontal shaft. The structure is similar to Grundfo's NKG.
Application
Product Advantage
Product Structural Drawing
Hydraulic Coverage
Product Parameters
| Type | Capacity | Head | Speed | Eff. | Shaft Power | Motor Power | (NPSH)r | Weight | |
| Q | H | n | η | Pa | PM | (m) | (kg) | ||
| (m3/h) | (L/s) | (m) | (r/min) | (%) | (kW) | (kW) | |||
| 300TWX38-110/4 | 560 | 155.6 | 43.7 | 1480 | 74 | 90.12 | 110 | 8 | 1520 |
| 680 | 188.9 | 41.6 | 79 | 97.58 | 8.2 | ||||
| 800 | 222.2 | 38 | 81 | 102.27 | 9.1 | ||||
| 880 | 244.4 | 35.1 | 80 | 105.21 | 9.8 | ||||
| 960 | 266.7 | 32.2 | 77 | 109.40 | 10.5 | ||||
| 300TWX42-132/4 | 616 | 171.1 | 47.7 | 1480 | 74 | 108.20 | 132 | 7.4 | 1620 |
| 748 | 207.8 | 45.6 | 79 | 117.65 | 8.2 | ||||
| 880 | 244.4 | 42 | 81 | 124.34 | 9.5 | ||||
| 968 | 268.9 | 38.9 | 80 | 128.26 | 10 | ||||
| 1056 | 293.3 | 35.2 | 77 | 131.55 | 11 | ||||
| 300TWX46-160/4 | 687 | 190.8 | 51.7 | 1480 | 73 | 132.58 | 160 | 7.2 | 2150 |
| 835 | 231.9 | 49.6 | 78 | 144.69 | 8.1 | ||||
| 982 | 272.8 | 46 | 81 | 151.97 | 9.4 | ||||
| 1080 | 300 | 42.9 | 82 | 153.97 | 10.3 | ||||
| 1178 | 327.2 | 39.2 | 81 | 155.35 | 11.5 | ||||
| 300TWX50-185/4 | 724 | 201.1 | 55 | 1480 | 77 | 140.92 | 185 | 7 | 2200 |
| 880 | 244.4 | 53.3 | 81 | 157.79 | 8 | ||||
| 1035 | 287.5 | 50 | 83 | 169.90 | 9.3 | ||||
| 1139 | 316.4 | 47 | 82 | 177.90 | 10.5 | ||||
| 1242 | 345 | 44.6 | 81 | 186.35 | 12 | ||||
| 300TWX52-200/4 | 766 | 212.8 | 57.6 | 1480 | 77 | 156.15 | 200 | 6.8 | 2220 |
| 930 | 258.3 | 56 | 81 | 175.21 | 8 | ||||
| 1094 | 303.9 | 52 | 83 | 186.77 | 9.8 | ||||
| 1203 | 334.2 | 50 | 82 | 199.89 | 11.2 | ||||
| 1313 | 364.7 | 45 | 81 | 198.77 | 12.5 | ||||
Product Attributes
| Attribute | Attributes | Value | Optional |
| Installation | Inlet diameter (mm) | DN350 | / |
| Outlet diameter (mm) | DN300 | / | |
| Direction of rotation | Clockwise from the motor to the pump | / | |
| Entrance orientation | level in | / | |
| Exit orientation | level out | / | |
| Base form | / | ||
| Motor | Motor model | ||
| Number of motor phases | 3 | / | |
| Rated voltage (V) | 380 | ||
| Power frequency (Hz) | 50 | 60 | |
| Insulation class | F | ||
| Protection class | IP54 | IP55 | |
| Installation Type | |||
| Energy efficiency rating | IE3 | IE4/IE5 | |
| Flange Grade | GB/T17241.6/EN1092-2 | PN16 |
