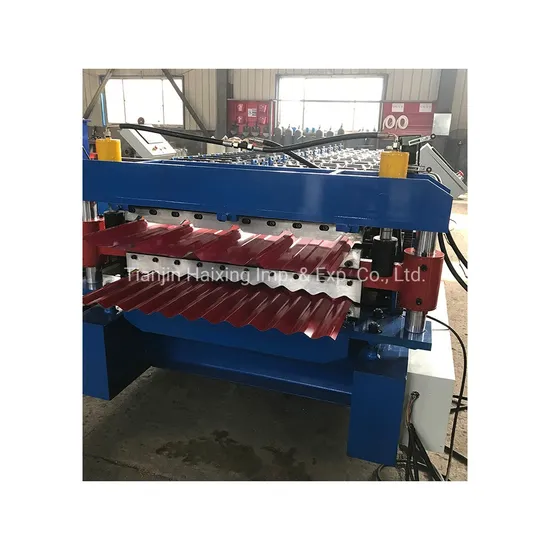

Double-Layer Roof Tile Cold Roll Forming Machine

Product Description

Product description:
Double-Layer Roof Tile Cold Roll Forming Machine's technical parameters

Length of the main part	About10500*1650*1500mm
Weight of main part	About 9.5 ton
Voltage	380V/50HZ/3Phase (as customer`s request)
Roller fixer	Middle plate welded
Frame	350H steel welded
Middle plate thickness	20mm/18mm/16mm/14mm/12mm
Drive mode	Chain Drice//Gear Drive
Material of rollers	45# steel, surface hard chromium plating.
Material of shafts	45# steel
Diameter of shafts	Φ80mm(depend on different design)
Number of rollers:	29 rollers
Main power	5.5kw
Cutting&Hydraulic	Double guide pillar
Hydraulic motor power	3kw,4kw
Hydraulic Pressure	10-12MPa
Cutting drive	Decelerating motor + Chain drive gear all by high-frequency
Control System	PLC system: Mitsubishi, Panasonic,Dental,Siemens,Schneider
Feeding Material width	Better as your drawing or from our designer
Feeding Thickness	0.8~1.5mm
Effective width	Better as your drawing or from our designer
Productivity	8-12/min
Package of machine	Waterproofing membrane, standard export packing

Double-Layer Roof Tile Cold Roll Forming Machine's introduction and feature
1. The main parts: roll forming machine; molding press; cutting machine; PLC computer control; hydraulic system.
2. The machine is stable, with no noise, no shake.
3. Controlling by computer, PLC display, the operation is easy, running is steady and reliable, endurable.
4. Cutting machine is characterized by stable driving, easy operation.
5. The hydraulic system uses the CDF-10 hydraulic pump, long operating life, no noise.
6. Material: galvanized, colored steel or aluminum coil.
7. We can make and design the kinds of roll forming machines according to customer's requests.
Packaging Details
1. Need one 40ft container.
2. Fit for ocean shipping.
3. The main body of the roll forming machine will be naked packing into the container, covered with plastic film.
4. Steel wire fixes the machine into the container, in case of any damage when shaking on the sea.
5. The spare parts will be packed into the carton box.
6. The received goods table put into a carton box.
7. Manual decoiler naked package.
Our Service
Direct customers to our company personally test our equipment;
Our engineers accompanied the test machine until customer satisfaction;
Our engineers free of charge for customer training guide customers to operate and maintain equipment;
Customers can ask engineers to client countries for machine installation and commissioning, clients pay the flight cost and the cost of our engineer.

1	Professional: rich experience in product and export process!
2	Low price: Save your money from every part!
	a. Low labor cost;
	b. Convenient transportation;
	c. Complete supporting industries.
3	PLC: Ensuring high accuracy and easy to operate!
	Fully automatic: Just enter the length of the paper and the required number of sheets, and the machine can run automatically.

Company profile
Tianjin Haixing Imp & Exp Co., Ltd. is a manufacturer and exporter specializing in the design, development and production of cold roll forming machines. The company is located in the northwest of Tianjin, China, and cooperates with a number of production plants and related companies.
The company is specialized in manufacturing roof roll forming machines, floor deck roll forming machines, leveling and shearing machines, decoilers, C and Z purlin roll forming machines, slitting production lines, light steel keel roll forming machines, sandwich panel roll forming machine, highway guardrail roll forming machine, downspout & rain gutter roll forming machine, shutter door & door frame roll forming machine, and other associated equipment. We also provide products such as galvanized steel coils, galvalume steel coils aluminum coils, color steel coils.
As a production base of cold roll forming machines with a long history, we have cooperated with a number of production plants and related enterprises to focus on the design, development, and production of cold-formed machines. All products meet international quality standards and are highly evaluated in different markets around the world, including Asia, Africa, Europe, South America, Oceania and more.
FAQ 1. Q: Are you a manufacturer?
A: Yes, we are a manufacturer for cold roll forming machine over 12 years.
2. Q: if you can accept OEM? Design and manufacture according to our photo.
A: Yes, we can accept OEM, we owned an expert engineer team, professional design CAD drawings and use famous brand components according to your demands. 3. Q: What's the warranty for your machine?
A: We provide 2 years guarantee and provide lifetime technical support. 4. Q: How many workers are needed for the machine operation
A: One worker is enough, the machine uses an automatic PLC control system. 5. Q. Do you have after-sales support?
A: Yes, Our engineer can supply remote-video technical support and online support to teach your worker.
6. Q. Can you be responsible for transport?
A. Yes, we owned an expert export team, we can arrange for you to your destination port or address.
7. Q: What service can you provide before order?
A: About the pre-sale service, We provide professional solutions according to your demands, such as design, technical parameter, delivery flow, etc. At the same time, we can supply an invitation letter for your visit to our factory and showing the machine operation for you. 8. Q: What is the after-sale service?
A: We will supply lifetime technical support,quick-wear parts within 2 years, we also can provide field maintenance and repair service. 9. Q: Any other service?
A: We can help you purchase raw material for machine, help you check ship date, update for your ship date, etc. 10. Q: Any certification
A: Yes, we have SGS ISO certification.
