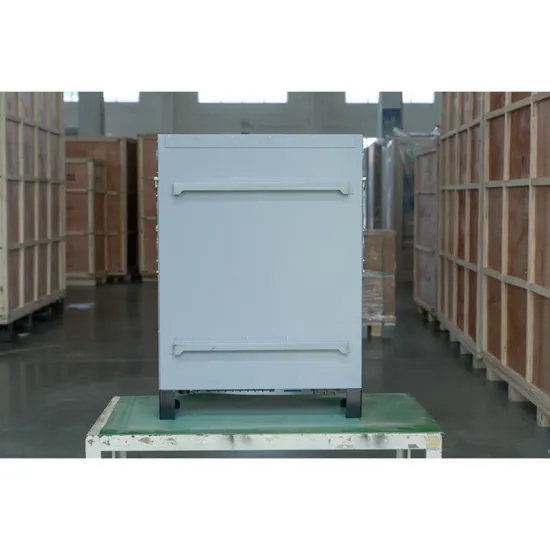

6000W Pure Sine Wave Power Inverter Charger 6kw 24V DC to 120/240 VAC Split Phase 6000 Watt Inverter off Grid Low Frequency

Product Description

Product Parameters

Type		XSX10KS	XSX20KS	XSX50KS	XSX100KS	XSX250KS
AC side parameter
Rated capacity		10kW	20kW	50 kW	100 kW	250kW
Overload		11kW	22 kW	55 kW	110 kW	275kW
On-grid charging mode
Rated grid voltage		380 Vac
Grid voltage range		310~450Vac
Grid frequency		50Hz/60Hz
Total harmonic distortion(THD)		<3%
Power factor		≥0.99
off-grid mode
Rated output voltage		380 Vac
Output voltage accuracy		<3%
Output frequency		50Hz/60Hz
Output overvoltage		>450 Vac
Output under-voltage		<310 Vac
DC voltage range
Max DC power		11kW	22 kW	55 kW	110 kW	275kW
DC voltage range		450-750Vdc
Max DC current		25A	50A	122A	244A	611A
DC current ripple		<5%
System
Max efficiency	96.6%
Temperature	-25~+60°C
Humidity	0~95%,non condensing
Noise	<50dB
Protection	Polarity inverse,short circuit,island efficiency.overheat,overload.ground fault protection
Cooling method	Forced cooling
Protect degree	IP20
Indication	Touching screen
Communication	RS485(MODBUS protocol)
W×D×H(mm)	580*515*1250		650*610*1560	800*600*2060	1000*800*2060	2000*800*2060
Weight (kg)	150		300	700	900	1300

Product Description
Bi-directional inverter can not only convert the DC power into AC power,but also can invert the AC power to DC power.Bi- directional inverter mainly control the battery's charging and discharging,at same time it is the core control equipment.Bi-directional inverter can apply in the grid ties power system which has the requirement of power storage function.The power storage system is for the the emerging load or important load charging.It can combine with the string inverter and then construct the separated PV power system. Bi-directional inverter charged by batteries ,convert the DC power into AC power.Constructing the grid at the basis of the AC general line.String grid inverter can automatically test the solar battery array with enough power or not.Testing the grid whether meet the need of grid power.When meeting the need can go into the grid power mode,feeding power to the AC general line.,then the work of starting the system was completed.When normally operating .Bi-grid inverter will test the power using of the load .The power feeding to the grid from string grid inverter firstly for the load charging.If there is rest power ,BI-grid inverter will convert it into DC power and charge the battery.If the power feeding to the grid is not enough for the load,Bi-grid inverter will convert the DC power supplied by battery into AC power and feed into the AC general line for the using of the load. Hot Product

Company Profile

Jinan Xinyuhua Energy Technology Co., Ltd. Firmly grasps the direction of "low-carbon economy and green development", takes "building a first-class new energy enterprise in China and even in the world" as its strategic goal, carries forward the enterprise spirit of "harmony, innovation and pursuit of excellence", strives to contribute clean energy, improve the power structure and fulfill social responsibility. A multi field, large-scale and powerful new energy leading enterprise constantly shows its unique charm and elegant demeanor. It will continue to serve the country with industry, repay the society with value, base on the market with reputation, and gallop into the future with strength, and advance hand in hand with all walks of life to create brilliance together!

The company is committed to the application of new energy industry in industrial, civil, military and other fields. Its products include solar system, wind turbine system, marine shore power supply system, DC power supply, rectifier, voltage and frequency stabilizer, military power supply, Jinan Xinyuhua Energy Technology Co., Ltd. Firmly grasps the direction of "low-carbon economy and green development", takes "building a first-class new energy enterprise in China and even in the world" as its strategic goal, carries forward the enterprise spirit of "harmony, innovation and pursuit of excellence", strives to contribute clean energy, improve the power structure and fulfill social responsibility. A multi field, large-scale and powerful new energy leading enterprise constantly shows its unique charm and elegant demeanor. It will continue to serve the country with industry, repay the society with value, base on the market with reputation, and gallop into the future with strength, and advance hand in hand with all walks of life to create brilliance together!

Our business marketing network covers Europe, North America and Asia Pacific, covering more than 50 countries, including Singapore, Indonesia, Philippines, Bangladesh, Germany, Italy, Belgium, the United States, Spain, Australia and other major markets. For each new member of Xinyuhua, new energy is not only a business opportunity in the sunshine, but also a way of life to create a green future. We uphold the concept of "sunshine quality, serving the world", and share with you the joy of the growth of green energy in the world under the sunshine!
Our Advantages Why Choose US?
• Professional team for after-sale service 7*24• Experienced R & D team and profesional sales team• OEM & ODM service, we will evaluate, design and produce your customized products• Offer confidentiality agreement to protect your profit, with us your business will be in safe your money in safe.
Warranty:
As our customer, you enjoy the following services:
(1)One year repair for free of the complete machine;(2)technical Support(3) Within 24 hours for respond after receiving notification;(4) Cost maintenance forever.
Customer on-site photos
Packaging & Shipping
FAQ1. Q:Are you manufacturer?
We are a professional power supply manufacturer with high reputation in this field.
2.Q.Do you have certificates for your products?
Yes,we have CE, standard certifications.
3. Q:Can we print our logo?
We can print your logo on both power adapter and package.
4. Q: How is your production management and quality control system?
All our product process follows up ISO9001. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
