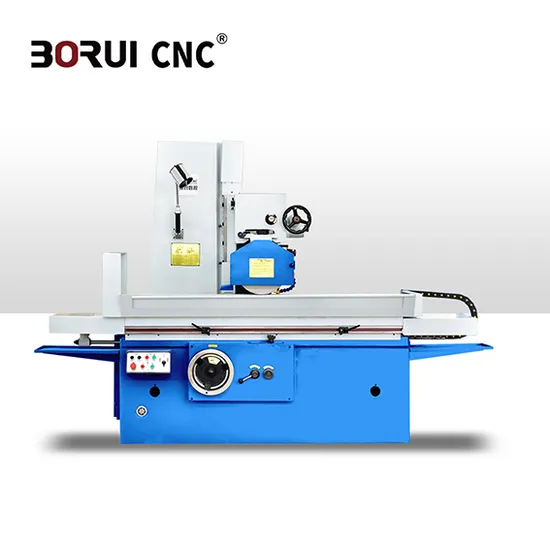

M7132 Metal Sheet Surface Grinding and Finishing Machine 350*40*127mm Grinding Wheel
| US$15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M7132
Type
Surface Grinding Machine
Processing Object
Thread
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
M7140 Surface Grinding Machine
Model
M7140
Grinding Wheel Size
350*40*127
Table Size
1000X320, 1600X320, 2000X320
Machine Tool Weight
3700, 4300, 4900
Max. Longitudinal Travel
1100, 1700, 2100
Table T Slot No*Width
3*18
Table Speed (Infinite)
3--25m/Min
Grinding Head Feed Per Turn of Handwheel
1.00mm
Transport Package
The Machine Willi Be Packed in Plywood Case.
Specification
2700*1700*2100
Trademark
BORUI
Origin
Shan Dong
Production Capacity
500
Product Description
M7132 metal sheet surface grinding and finishing machine 350*40*127mm grinding wheelProduct Description
STRUCTURAL FEATURES:
The machine tool adopts the t-type layout form, the guide rail on the column is equipped with a drag plate, the middle position of the guide rail is equipped with a vertical feed mechanism, the transmission accuracy is high, the interchangeabil- ity is good, the cross joint is connected in the transmission process, can compensate the center error of the lead screw and the reducer shaft. Closed hydraulic system is adopted for the movement of the worktable. The front and rear feed can be manually fed, the hydraulic feed can be automatically fed, and the lead screw can be fed automatically intermittently driven by a variable frequency motor. Adopt high strength cast iron foundation, grinding head spindle adopt bobbin or high rigidi- ty sleeve structure, the machine overall rigidity is strong, the quality is stable, the operation is stable.
Product main technical specifications:
| Model | M7132-1000 | M7132-1600 | M7132-2000 | |
| Table size (length×width) | mm | 1000×320 | 1600×320 | 2000×320 |
| Max. longitudinal stroke of worktable | mm | 1100 | 1700 | 2100 |
| T-slot of worktable number of slots×width of slot | 3×18 | 3×18 | 3×18 | |
| Table speed (infinite) | m/min | 3--25 | 3--25 | 3--25 |
| Max. distance from the center of the grinding wheel shaft to the worktable | mm | 570 | 570 | 570 |
| Max. stroke of grinding head Horizontal (manual and hydraulic) | mm | 350 | 350 | 350 |
| Max. stroke of grinding head Vertical (manual) | mm | 400 | 400 | 400 |
| Rotating Speed of Grinding Wheel Shaft | rpm | 1440 | 1440 | 1440 |
| Grinding wheel size (outer diameter×width×inner diameter) | mm | 350×40×127 | ||
| Vertical feed handwheel dial value | mm | 0.01 | 0.01 | 0.01 |
| Grinding head feed per turn of handwheel | mm | 1.00 | 1.00 | 1.00 |
| Total motor power | kw | 11 | 12 | 12 |
| power | kw | 7.5 | 7.5 | 7.5 |
| Rotating speed | r/min | 1440 | 1440 | 1440 |
| power | kw | 0.37 | 0.37 | 0.37 |
| Rotating speed | r/min | 1440 | 1440 | 1440 |
| Oil pump motor | kw | 3 | 4 | 4 |
| Rotating speed | r/min | 960 | 960 | 960 |
| Cooling pump motor | kw | 0.125 | 0.125 | 0.125 |
| Rotating speed | r/min | 2800 | 2800 | 2800 |
| flow | L/min | 100 | 125 | 125 |
| Work pressure | MPa | 1.5 | 1.5 | 1.5 |
| Parallelism of the machined surface to the base surface | mm | 1000:0.015 | 1000:0.015 | 1000:0.015 |
| Surface roughness | μm | Ra0.63 | Ra0.63 | Ra0.63 |
| net weight/Gross weight | kg | 3700/4300 | 4300/4900 | 4830/5300 |
| Overall dimensions (length×width×height) | mm | 2700×1700×2100 | 4400×1700×2100 | 5400×1700×2300 |
Details Display
