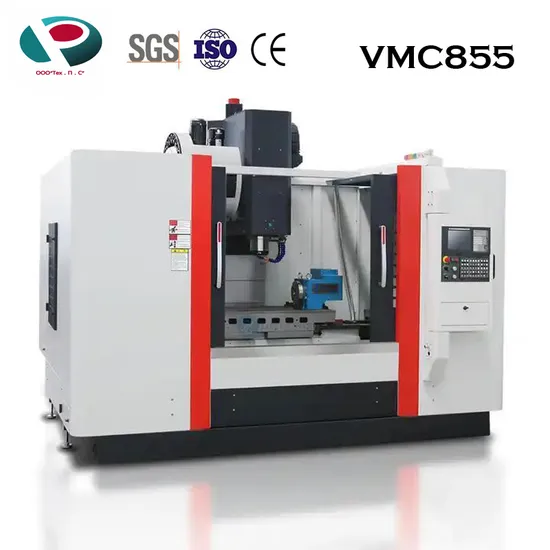

CNC Vertical Machining Center Equipment Vmc855

Product Description

Vertical machining center Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japan NSK bearing
Germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Vertical machining center use:
This VMC is suitable for the mechanical processing and mold making. Andit can adapt to the processing requirement from rough machining to finishmachining. It can also finish many working procedures like milling, drilling,tapping, boring etc.
Product main technical specification:

Specifications	Unit	VMC650	VMC1050	VMC1160
Table size	mm	800*400	1000*530	1200*600
Table Maximum load	kg	350	600	800
X/Y/Z axis travel	mm	650*400*500	1000*500*600	1100*600*600
Distance between spindle center and column guide surface	mm	476	580	650
Distance between spindle end face and worktable surface	mm	100-600	140-740	120-720
X/Y/Z Max.feed speed	mm/min	10000	10000	10000
X/Y/Z Max.Rapid traverse	m/min	24/24/20	20/20/15	36/36/24
The spindle maximum speed	r/min	8000	8000	8000
The spindle taper hole	type	BT40	BT40	BT40
Spindle motor	kW	5.5/7.5	7.5/11	11
X/Y/Z axis servo motor	kW	1.0/1.0/1.5	2.0/2.0/2.0	3/3/4.5
X/Y/Z Guide way type		Linear guide way	Linear guide way	Linear guide way
The workbench T slot	mm	3-18*125	5-18*90	5-18*125
Repeat positioning accuracy	mm	±0.004	±0.004	±0.005
Maximum tool weight	kg	7	8	8
Max. tool length	mm	250/300	250/300	300
Electric capacity	kVA	10	11	18
Machine dimension(L*W*H)	mm	2300*2000*2300	3200*2420*2400	3300*2550*2400
Net. weight(about)	kg	4500	6000	7000

Why choose us ?
1. Compared with other factories, casting material which produced by our company independently is really better than the others.
2.one year guarantee for whole machine .
3.24-hours technical support by E-mail or telephone
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
1.Q: Which trade term I can choose?
A: You can choose FOB,FCA
2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday.
3.Q: how can I make the payment?
A: You can pay by T/T . You can also pay to my company business bank account.
4.Q:What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
We want to know:
Please tell us your specific purchasing requirements, so that we can make specific quotations.
