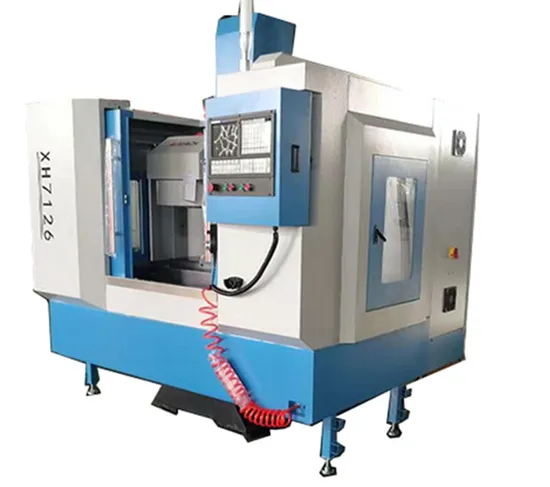

Fanuc Vertical Machining Center Mini CNC Millng Machine
| US$13,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
XH7126
Application
Metal
Process Usage
Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.02/0.012
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Name
CNC Vertical Milling Machining Center
Tool Changer Capacity
16PCS
X-Axis Travel
500mm
Y-Axis Travel
300mm
Z-Axis Travel
450mm
Spindle Noste to Table
80-520mm
Spindle Taper
Bt40
Size of Worktable
800X260mm
Main Motor Power
3.7kw
Max Table Load
200kg
Cutting Feed Speed
10000mm/Min
Weight
2600kg
Transport Package
Full-Closed Wooden Cases
Specification
CE, SIO9001, SGS
Trademark
UNI-TECH
Origin
China, Shandong
HS Code
84595900
Production Capacity
100sets/Month
Product Description
FANUC vertical machining center mini cnc millng machineSPECIFICATIONS
| Model | XH7126 | XK7126 |
| Main Motor Power KW | 3.7kw | 3.7kw |
| Spindle Max. Rotating Speed | 8000rpm | 8000rpm |
| T slot | 14x3x85 | 14x3x85 |
| table load | 200kg | 200kg |
| rapid movement speed X/Y/Z | 24/24/20m/min | 24/24/20m/min |
| cutting feed speed X/Y/Z | 10000mm/min | 10000mm/min |
| Spindle Taper | BT40 | BT40 |
| Worktable Size | 800x260 | 800x260 |
| Travel(Longitudinal X/Horizontal Y/Vertical Z) | 500x300x450mm | 500X300X400 |
| Distance of Spindle Axis to Guideway Plane | 370mm | 370mm |
| Distance of Spindle End to Worktable | 80-520mm | 80-520mm |
| Positioning Accuracy | ±0.015mm | ±0.02mm |
| Repeated Positioning Accuracy | ±0.006mm | ±0.01mm |
| Machine Overall Dimension (L*W*H) mm | 2200×1900×2200 | 2200×1900×2200 |
| Machine Net Weight KG | 2600 | 2500 |
| Magazine Capacity | 16PCS | |
| tool change time | 6s |
ACCESSORIES
| system | GSK980 or SIEMENS808 |
| Main motor | 3.7kw servo motor |
| Feeding motor | Sever motor |
| Spindle | TAIWAN 8000rpm |
| Leading screw | TAIWAN |
| tool magazine | TAIWAN 12PCS |
| Tool magazine | 12pcs umbrella type from TAIWAN |
| 3 axis linear guideway | TAIWAN ABBA |
| Spindle taper | BT40 |
Optional configuration & accessories must be included into quotation:
1. The 4th axis wiring;
2. Direct driven spindle (Speed: 10000rpm,);
3. Spindle oil cooler;
4. Air conditioner (A/C) for electrical cabinet;
5. Auto. Tool length measurement system;
6. Screw type chip conveyor;
7. High pressure water flush system;
8. Safety door;
9. Oil skimmer.
