3000kns Plate Bending Machine 12mm Sheet Metal Bending Machine

Product Description

CNC PRESS BRAKE/PLATE BENDING MACHINE
1. It adopts an all-steel welded structure with sufficient strength and rigidity.
2. It is hydraulically driven. The cylinders at both ends of the machine tool are placed on the sliding block to directly drive the sliding work.
3. The slider synchronization mechanism adopts a torsion shaft for forced synchronization.
4. Using a mechanical stop block structure, stable and reliable.
5. The stroke of the slider can be adjusted quickly and manually, and the counter is displayed.
6. Oblique wedge-type deflection compensation mechanism to ensure higher bending accuracy.
Features of CNC bending machine:
1. Direct angle programming with angle compensation function.
2. The grating ruler real-time detection feedback, copy correction, full closed-loop control, back gauge, and slider dead-gauge positioning accuracy is ±0.02mm.
3. The upper mold adopts a quick clamping device, and the lower mold adopts a wedge deformation compensation mechanism.
4. With a multi-step programming function, it can realize multiple automatic operation, complete multi-step parts one-time processing, and improve production efficiency.
5. The imported hydraulic system with stable performance and compact structure can be selected according to user requirements, and the back gauge can be driven by the ball screw and timing belt.
WE67K PRESS BRAKE -TECHNICAL PARAMETER

Model	Nominal Pressure(KN)	Length of the working table(mm)	Distance between uprights(mm)	Throat depth(mm)	Ram stroke(mm)	Motor Power(KW)
WE67K-40/2000	400	2000	1600	250	100	4
WE67K-40/2200	400	2200	1800	250	100	4
WE67K-40/2500	400	2500	2000	250	100	4
WE67K-63/2500	630	2500	2000	250	120	5.5
WE67K-63/3200	630	3200	2600	250	120	5.5
WE67K-80/2500	800	2500	2600	250	150	5.5
WE67K-80/3200	800	3200	2600	250	150	7.5
WE67K-100/2500	1000	2500	2000	320	150	7.5
WE67K-100/3200	1000	3200	2600	320	150	7.5
WE67K-100/4000	1000	4000	3000	320	150	7.5
WE67K-125/2500	1250	2500	2000	320	150	7.5
WE67K-125/3200	1250	3200	2600	320	150	7.5
WE67K-125/4000	1250	4000	3000	320	150	7.5
WE67K-160/3200	1600	3200	2600	400	180	11
WE67K-160/4000	1600	4000	3200	400	180	11
WE67K-160/6000	1600	6000	4800	400	180	15
WE67K-200/3200	2000	3200	2600	400	200	15
WE67K-200/4000	2000	4000	3200	400	200	15
WE67K-200/6000	2000	6000	4800	400	200	18.5
WE67K-250/3200	2500	3200	2600	400	250	22
WE67K-250/4000	2500	4000	3200	400	250	22
WE67K-250/6000	2500	6000	4800	400	250	22
WE67K-300/3200	3000	3200	2500	400	250	22
WE67K-300/4000	3000	4000	3200	400	250	22
WE67K-300/6000	3000	6000	4800	400	250	30
WE67K-400/3200	4000	3200	2500	400	250	30
WE67K-400/4000	4000	4000	3000	400	250	30
WE67K-400/6000	4000	6000	4800	400	250	37
WE67K-500/6000	5000	6000	4800	400	300	37
WE67K-500/7000	5000	7000	5400	400	300	37
WE67K-600/6000	6000	6000	4800	400	300	45
WE67K-600/7000	6000	7000	5600	400	300	45
WE67K-700/7000	7000	7000	5600	400	300	45
WE67K-800/6000	8000	8000	4600	400	400	55
WE67K-800/8000	8000	8000	6200	500	400	55
WE67K-1000/6000	10000	6000	5600	600	500	75

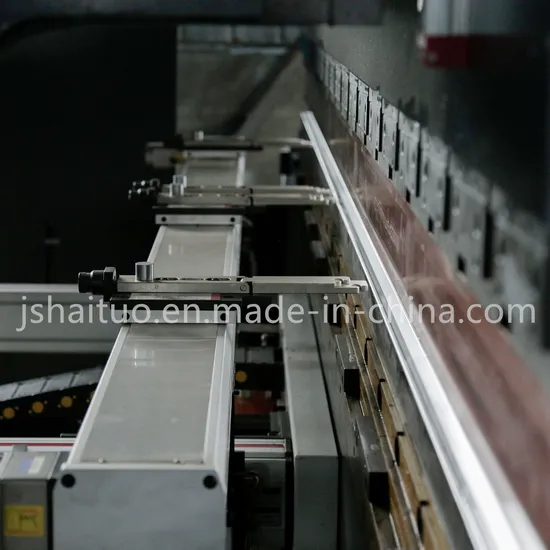

VIEW OF MACHINE
Optional CNC system
Sales team:
Application Consulting: Our consultants understand the application of bending and shearing technology. We are always ready to provide you with information about products, prices, technology, industry solutions, etc., and share our valuable knowledge to help you develop optimized solutions.
Inspection reception: You can make an appointment to visit the exhibition hall and visit the company on-site inspection. We will provide you with a professional receptionist.
Service after sale:
At the same time, we also attach great importance to services, the company's service mechanism: customer return visits, continuous improvement, rapid response, efficient and accurate, to ensure stable and efficient operation of products, to a large extent to help customers improve economic efficiency. The advanced nature of technology is the guarantee of product quality, and the company will have completely independent intellectual property rights.
Maintenance:
Two years of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.
Preventive maintenance:
Depending on your needs, we can perform a regular preventive overhaul on your machine or repair it when you need it. Regularly adjust and calibrate the guaranteed performance of the machine. Some potential problems can also be resolved before they break out to avoid affecting production efficiency.
Service outlets:
We have established a comprehensive marketing network in China and the international marketing network is constantly evolving. You can check out our service network on our official website. After-sales service response time is 24 hours. You can call a service call or send an email. The after-sales engineer will give a clear response within 24 hours or confirm whether it is necessary to go to the equipment site.
Online service:
We have established a variety of online service channels, you can contact us through customer service phone, customer service email, website online, website message, and other channels to get the services you need.
Spare parts:
To use original spare parts and consumables can optimize machine productivity. We can guarantee that there are enough spare parts and guarantee a preferential price and fundamentally to control the quality of the repair.
It is our commitment to fix all problems as quickly as possible after they are brought to our attention. If you have any questions about our support policies please contact us.
For more product details, please email us.
