XCMG Manufacturer Table Lift Xg0807dcw China Used 8m Electric Motorcycle Scissor Lift

Product Description

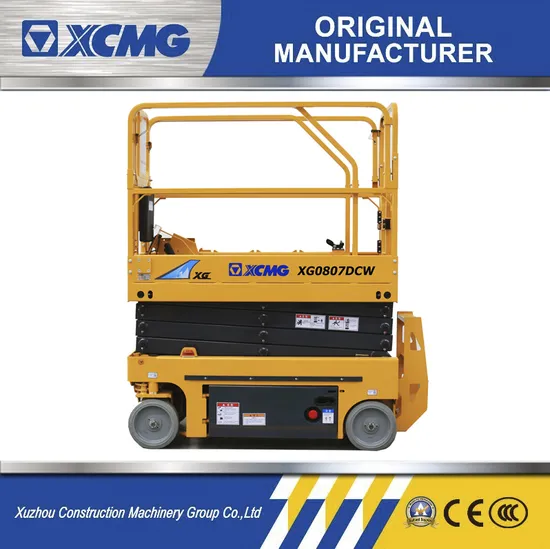

XCMG Manufacturer Table Lift XG0807DCW China Used 8m Electric Motorcycle Scissor Lift.
New aerial work platform developed by XCMG has the work height at 8m, the vehicle width at 0.81m, the rated load at 230kg, max. gradeability at 25%. This vehicle features compact structure, advanced performance, completed safety devices, specially suitable for construction. In addition. It is free of any pollution, with steady lifting / lowering, easy control and maintenance. Therefore, this kind of platforms are widely applied to warehouses, factories, airports, and train stations, especially the narrow work sites.
Advantages and features
1.Effective and energy-saving electric-drive system features zero emission and low noise.
2.Active protective mechanism such as pothole protective mechanism and the self-developed safety control system meeting the customer needing for safety, reliability and intelligence.
3.Narrow- structure design enables the complete vehicle to easily pass through a single gateway; foldable fence could make the transportation easier. "Zero Turning Radius "is unique and enable machine to corner in narrow room.
4.Max. payload at 230kg, leading the industry.Maximum traveling speed 4.5 km/h and 25% gradeability make the driving easier.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
Product Parameters

Item	Unit	XG0807DCW
Dimension of machine(LxWxH)	mm	1900x830x2160
Wheelbase	mm	1360
Wheel track	mm	710
Min. ground clearance (Pit protector ascending/descending)	mm	70/20
Dimension of working platform (LxWxH)	mm	1670x740x1235
Centroid position of machine Horizontal distance to front shaft	mm	750
Centroid position of machine Height of centroid	mm	570
Total mass of machine	kg	1580
Max. height of platform	m	5.8
Min. height of platform	m	1.05
Max. working height	m	7.8
Minimum turning radius (inner wheel/outer wheel)	m	0/1.75
Rated load	kg	230
Payload of extended platform	kg	115
Lifting time	s	13-30
Lowering time	s	25-35
Drive speed(lowered)	km/h	4.5
Drive speed(elevated)	km/h	0.8
Max. gradeability	%	25
Tilt warning angle (side/forward and backward)	°	1.5/3
Lifting / traveling motor Rated power	kW	3.3/0.75
Battery Voltage	v	24
Battery Capacity	Ah	225
Battery Manufacturer	-	Trojan/Leoch

Product Show
