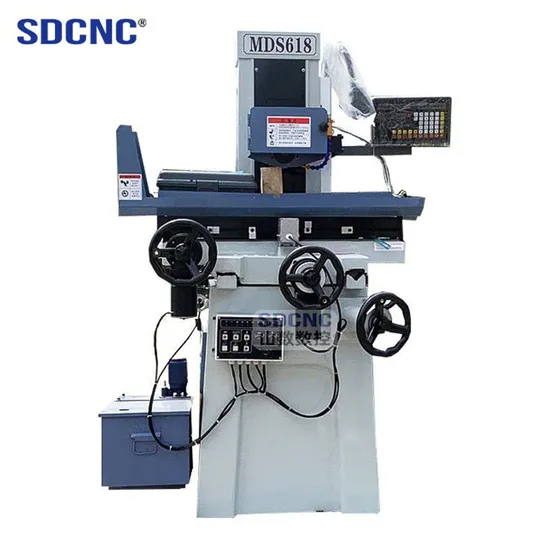

High-Precision Digital Display Small Manual Grinding Machine Universal Grinding Machine
| US$2,300.00-3,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MD618
Type
Surface Grinding Machine
Processing Object
Gear
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max.Work
500×190×335
Max. Grinding Length
500mm
Max. Grinding Width
190mm
Slide Way
V-Type Rail with Steel-Ball
Transport Package
Wood Packaging
Specification
1060*1170*1870
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
106.00cm * 117.00cm * 187.00cm
Package Gross Weight
650.000kg
Product Description
SPECIFICATIONS
| TECHNICAL PARAMETERS | UNITS | M618A | |
| Max.work piece to be Ground( L×W×H) | mm | 500×190×335 | |
| Max. Grinding Length | mm | 500 | |
| Max. Grinding Width | mm | 190 | |
| Distance From Table Surface To Spindle Center | mm | 335 | |
| Slide way | V-type rail with Steel-ball | ||
| V-type rail with Steel-ball | Kg | 200 | |
| Table Size (L×W) | mm | 460×180 | |
| Number of T -Slot | mm×n | 12×1 | |
| Speed OF Working Table | m/min | 3-23 | |
| Cross Feed On Handwheel | mm | 0.02/Graduation 2.5/revolution | |
| Vertical Feed On Handwheel | mm | 0.01/Graduation 1.25/revolution | |
| Wheel Size (dia.×width×bore ) | mm | 200×16×31.75 | |
| Spindle Speeds | 50Hz | rpm | 2850 |
| 0-6000 | |||
| Spindle Motor | Kw | 1.1 | |
| Coolant Pump | Kw | 0.4 | |
| Minimum of Numerical Display | mm | ||
| Machine Size (L×W×H) | mm | 1550×1060×1590 | |
| Packing Size (L×W×H) | mm | 1060×1170×1870 | |
| Gross,Net | T | O.75, 0.65 | |
COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong
Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The
company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC
machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe,
CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC
products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling
machine, vertical drill Bed and other machine tool
