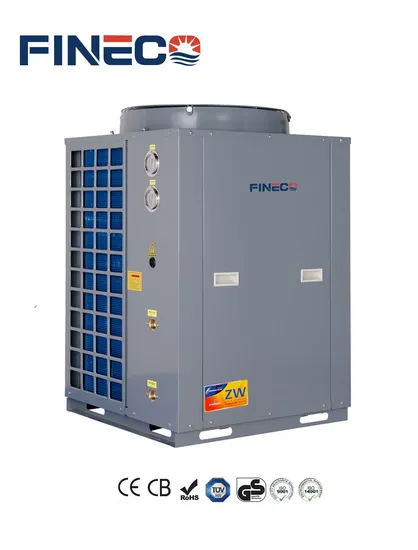

11-150kw Commercial Heat Pump Water Heater High Cop with Copeland Compressor

Product Description

Description:
This commercial heat pump water heater is the best solution for hot water supply of commercial project, can work with advantages of high safety, stability, much convenience, energy saving, and environmental friendly, it assures 24 hours comfortable hot water supplying. widely used in hot water project of school, hotel, hospital, factory dormitory and other large building, which needs large volume water supply.
Features: 1. Large Range Heating capacity 10-150kW.
2. American Copeland scroll compressor, quiet and high efficiency.
3. High efficiency tube in shell or tube to tube heat exchanger.
4. Intelligent controlling system.
5. Intelligent EE valve, Automatically defrosting, excellent efficiency at different ambient temp.
6. Intelligent control and Automatic data backup (With self-diagnosis function, auto-defrosting function, complete protection function)to ensure reliable operation.
7. Easy installation and long wiring LCD operation.
Spcecification:

Model		XD-BKR03	XD-BKR05	XD-BKR06	XD-BKR07	XD-BKR10	XD-BKR12	XD-BKR15	XD-BKR20	XD-BKR25	XD-BKR30
Heating mode		Circulating
Ambient temp. range		- 10~43ºC
Rated heating capacity	Kw	11	18.5	22						86	114
Rated power Input	KW	2.6	4.4	5.3	6.5	9.2	11	13	18.5	21	28.5
COP	W/W	4.23	4.32	4.15	4.15	4.13	4.09	4.00	4.05	4.10	4.00
Max. Working Current	A	11	14	16	20	25	31	38	45	56	62
Power Type	V/Ph/Hz	380-415 / 3 / 50(60)
Compressor QTY	Pics	1	1	1	1	2	2	2	4	2	4
Compressor brand / type		Mitsubishi/ Emerson Copeland Scroll
Fan QTY	Pics	1	1	1	2	2	2	1	2	2	2
Fan power input	W	90×1	250×1	250×1	250×1	250×2	250×2	550×1	550×2	550×2	980×2
Heat exchanger		High Efficien Shell in Tube heat exchanger
Evaporator		Inner threaded pipe + hydrophilic aluminum foil
4-Way valve		Sanhua / Saglnomiya
Electronic expansion Valve		Sanhua / Saglnomiya / Danfos/ Other
Contactor		Famous brand
Cabient materials		Galvanzied powder coated steel
Controller		7 m LCD controller
Safety function		High and low pressure protection, Overload protection, Temperature protection Power phase sequence protection, etc.
IP code		IPX4
Outlet water temperature	ºC	55-60 ºC
Water yield	L	240	400	475	560	817	950	1120	1600	1850	2300
Water flow	m3/h	2~3	4~5	5~6	6~7	7~10	9~12	10~ 13	14~20	18~25	24-30
Water pressure loss	Kpa	50
In/out water connection		D25	D25	D25	DN32	D32	D40	D40	D50	D65	DN80
Refrigerant type		R407c / R410a / R417a
Refrigerant quantity	Kg	2.2	3.4	3.5	4	6.6	7	8	13.2	14	16
Noise	dB(A)	≤55	≤59	≤59	≤65	≤65	≤65	≤65	≤68	≤68	≤72
Machine Size(L/W/H)	mm	655/695/810	710/710/1010	710/710/1010	710/710/1010	1450//710/1180	1440/800/1380	1100/900/2100	1800/1100/2150	2000/1100/2150	2000/1100/2150
Packing Size(L/W/H)	mm	685/725/940	740/740/1140	740/740/1140	740/740/1140	1480/740/1310	1470/830/1510	1350/605/1845	1830/1130/2280	2030/1130/2280	2030/1130/2280
Net weight	Kg	100	140	180	250	280	310	330	630	780	950
Gross weight	Kg	115	160	200	260	315	345	360	670	825	1010

Pipe line design and circuit layout:
Our pipeline design effectively avoids stress vibration points, avoids pipeline resonances so that ensures system life design, and reduces system noise.
The circuit layout is neat, and the strong and weak electric lines are clearly distinguished, which is convenient for system installation and maintenance. The important heat exchange components and pipes are covered with thick insulation cotton to reduce the heat loss of the system and ensure the efficient operation of the system.
Components and Installation Diagram:
About FINECO :
Guangdong Fineco New Energy Co., Ltd. is a professional manufacturer who has more than 20 years experience in refrigeration and heating industry, and long term tech cooperation with world-famous enterprises such as Panasoni, Emerson, Schneider,SWEP, Danfos etc in this field. Fineco focuses on the heat pump project since 1999, making full range heat pump products involving air to water heat pump, water to water heat pump ,heat pump drier , refrigeration ,industrial water cooled chiller and some other relative products .
Fineco products are strictly designed and tested to make sure the best efficiency and quality to international market. We carry out ISO9001 quality control system and ISO14001 environmental system to ensure providing the best quality products and service to our customers so that our sales network throughout Europe, South America, Africa, Middle East, Southeast Asia and so on. Most of our products have CE and CB certificates issued by TUV. We are looking forward for our cooperation.
Package & Container Loading:
Project Cases:
Customers Style:
-- FAQ --
Q1.What does Fineco new energy company do?
A:Guangdong Fineco New Energy Co., Ltd. is a professional manufacturer who has more than 20 years experience in refrigeration and heating industry since 1999. We make full range heat pump products involving air to water heat pump, water to water heat pump ,heat pump drier , industrial water cooled chiller ,swimming pool heat pump and some other relative products .
Q2. How about the delivery time?
A: Sample needs 12 days, mass production time needs 2-3 weeks for order quantity more than one container.
Q3. Can I buy one sample from Fineco ?
A: Yes, we welcome to order samples to do testing and check quality. Mixed samples are acceptable.
Q4. What's the MOQ for your products?
A: Low MOQ, 1PC for sample testing is available
Q5. What certificates did Fineco obtain?
A: The certificate we have include: CE, RoHS, SGS, ISO9001, ISO14001, CB ,national Lab inspecton report, technology patents and so on.
Q6. Which markets did Fineco products export to before?
A: Our sales network throughout Europe,South America, Africa, Middle East, Southeast Asia and so on.
Q7. What support can Fineco provide to business partner?
A: * Competitive & high quality products.
* New business opportunities & profits.
* Free brochures & technical data.
* Free training for products of technical,installation & marketing.
* End customer resources sharing in the territory.
* Offer 24 hours online service .
Q8. OEM order is ok ?
A: Yes. Legal OEM brand is accepted. Please provide your logo and brand authorization to us before production .
Q9: What's the warranty about products?
A: Yes, we provide 1% free spare parts together with mass order and offer 3 years warranty for main parts .
