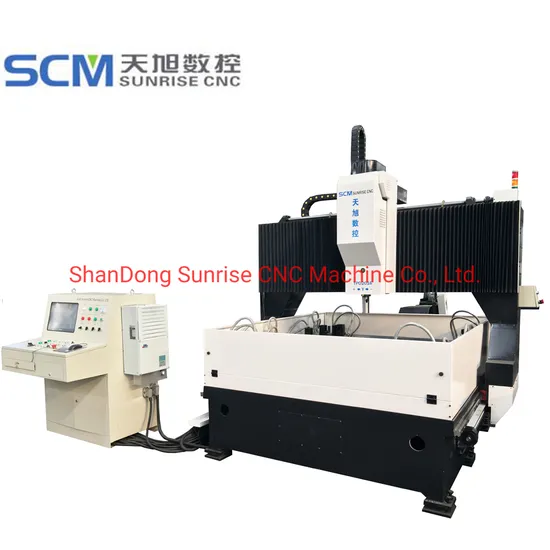

CNC Drilling Machine for Steel Plate (servo control)

Product Description

Applicable Industry:
This is special CNC machine for drilling plates and flanges, mainly used in steel structure, tower, bridge and other industries.
Product Feature
1. CNC slider and drilling unit head, can control depth of holes, with function of drilling blind hole, reaming, chamfering.
2. Machine is controlled by PLC & servo motor, ensure precision positioning .
3. The machine have 4 work area with individual reference, workpieces can be clamped by hydraulic clamps at any area for drilling.
4. Machine equips with computer for software, it can use Auto CAD drawing directly, it also can process NC file which generated by TEKLA.
5. Scrap cleaner can collect all iron scraps and cutting liquid which is recycling.
6. The key mechanical, hydraulic and electric parts are all famous brands.
7. Optimized integration design for complete machine, no foundation requirements.

Model	TPD2012		TPD2016		TPD3016
machine type	Gantry movable single spindle CNC drilling machine
Max work piece size (L×W)	2000×1200mm		2000×1600mm		3000×1600mm
Thickness of work piece	5~100m If work piece is small size, it can be overlapped and processed at the same time.
Drill unit type	sliding table, servo control
Clamp type	Hydraulic clamp with 12 clamps
Drill head quantity	1
Max drill diameter	Φ50mm
Spindle speed	120~560r/min (frequency control)
Clamping type	Attach Morse 4# quick chuck and 3#, 2# reducing sleeve
Electric control type	MISTUBISHI PLC
CNC axis quantity	3
With function of CAD/CAM automatic generation
with function of hole site memory (memory hole site if power off suddenly) and drill pause
Total power	≈12 kW
Total weight	About 5200	About 6200		About 7200
Overall dimension	4.5×2.21×2.85	4.5×2.61×2.85		5.5×2.61×2.85

Packing & Delivery
Packing Details : Packing, this model need 1*40HQ;
Delivery Details : 30-50 days after get the first payment.

1. Special logistics packaging
2. Suitable carton size
3. Fasten
4. Professional placement
5. Professional shock
6. Complete package
Our Workshop:
The company covers an area of more than 46000 square meters. , with built production workshop 33000 square meters.
Aftersale Service:
India and some other countries could provide to door service. For those we cannot go to factory at site, we will provide full details installation guidance and give remote support by internet (Wechat, whatsapp, zoom, telephone, email, teamviewer).
Our Certifications:
SUNRISE is focus on quality and has already passed ISO9001:2008 certification, CE certificate, also with more than ten own intellectual property rights and patent technology.
