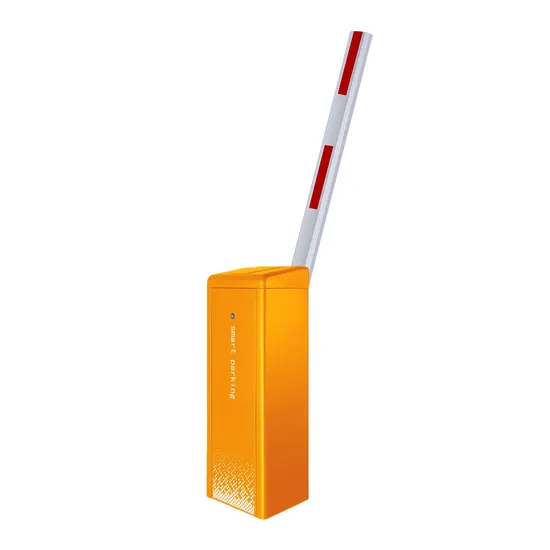

Orange Color DC Brushless Motor 6s 6m Telescopic Arm Barrier Gate

Product Description

Product Description DC Brushless Barrier Gate WJDZE-BL
It can be equipped with WJDZE-BL(1.5-6s) mechanism
Left-installation and right-installation can be exchanged
Alarm against abnormal lifting boom
Speed will reduce when the boom moves to the limited position
RS485 communication
Technical Data

Model	WJDZE-BL (speed 1.5-6s adjustable)
Running Speed	1.5s	3s	4s	5/6s	6s	6s	6s	6s
Boom Type	straight				90 ° folding	180 ° folding	2 fence	3 fence
Max Boom Length	3m	4.5m	5m	6m	5m	4m	4.5m	4m
Input Voltage	AC 220V±10%, AC110V±10%,50/60HZ
Frequency	50/60HZ
Motor Voltage	DC24V
Enclosure Rating	Ip54
MTBF	2500000 times
Traffic Flow Application	1500 times / 24hours
Working Motor Power	-35°C~+85°C
Max Motor Power	200W
Max Motor Speed	24r/min

Functions & Features
1. Driven by a DC brushless motor, equipped with a movable connecting rod transmission mechanism and balance spring, stable and reliable operation. Motor life cycle up to 2,500,000 times or more, and spring life cycle up to 500,000 times.
2. Built-in delay auto-closing and reverse on an obstacle in case of resistance.
3. Support infrared photocell, loop detector, external radar, and built-in DC12V power output.
4. Standard fitting with 433MHZ learning code remote control, convenient and quick to add configuration.
5. The barrier gate can still work when powered off by adding 2 external DC12V batteries. The battery charging module is optional, when power is on, the battery will automatically charge.
6. Holes are available to fix the articulated or fence boom, and multiple boom types on one machine can be easily changed.
Machine Core
