Pet Plastic Flakes/ Bottle Recycling Washing Line

Product Description

Pet Plastic Flakes/Bottle Recycling Washing Line

PET washing line/PET bottle washing line/PET flake washing line (including crushing, washing, drying)
Application for PET washing line:
This recycling line is composed of garbage separation (automatic & manual), bottle & flake crushing, cold & hot washing & cleaning, flake dewatering & drying, dust & label removal, packing, etc.
Basically the standard process for PET bottle recycling line design as below:
De-baling(bale opener)------ Label Scrapping(lable remover)-------- Persorting------Bottle Pre-washing ------ Manual Sorting and Metal Detecting-----Wet Grinding(crusher)-------Gravity Separation(floating washer)-------Chemical Washing for PET Flakes(Hot washer)-------High speed friction washer ------- Floating washing tank ------- Rinsing(clean water spraying)--------Drying--------Packing/storage hopper
Feature for PET washing line:
1. High automation level, try best to reduce your cost on labor (especially for three shifts) and ensure high processing capacity: 150-2000kg/hr
2. Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 or 316 stainless steel; Ensure no second pollution to flakes.
4. Ideal impurity removal effect. Here is from our customer's feedback.
Condition of final PET flake for PET washing line
Moisture: Not more than 1.0%
PVC Content: Not more than 200ppm
Metal Content: Not more than 20ppm
Label, ring and caps Content (i. e. PE, PP): Not more than 240ppm
Total amount: Not more than 560ppm
Nowadays, our PET washing line have been exported to many countries & regions, e. G. Latin-America, Mideast, Russia & MID-Asia, Africa, etc.

Product capacity	300kg /h	500kg /h	1000kg /h	1500kg /h
Workshop(L*W*H)	40m *7.5m*6m	42m *10m*6m	70m *12m*6m	75m *15m*6m
Needed worker	3-4 persons	5-6persons	7-8persons	10-12persons
Water supply (recycle use)	2-3ton/h	3-5ton/h	7-10ton/h	10-15ton/h
Final product quality	Moisture: Max 1% Bulk density: 0.3G/CM 3 Particle size: 10-18mm Metal content: Max. 20ppm Floatable contamination: Less than 200ppm Total impurity: 100-320ppm

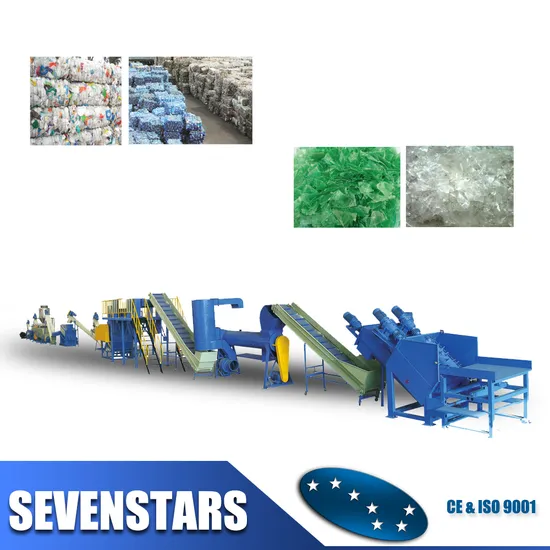

Some photos for reference:
Zhangjiagang sevenstars is located in Zhangjiagang city, China, a beautiful and famous city for all kinds of plastic machine.
We have 17000 square meters land and new modern workshop, we mainly development, design, manufacture and marketing plastic pelletizing machine, plastic recycling machine, pet bottle recycling machine, PVC pipe making machine, PE pipe making machine, PVC foam board production line, plastic granulator, plastic shredder, plastic pulverizer, Plastic agglomerator, single shaft shredder, double shaft shredder, plastic crusher and so on. By the several years developing, we grown up to a middle scale company in China plastic industry.
As one of the reliable supplier in China, We have keeping improved our management and technology level. Up to now, we have earned good reputation in domestic and abroad market. And our products have been exported to many countries, like mexico, America, Argentina, Chile, Brazil, Russia and so on.
Quality and honest is our foundation, customer satisfactory is our job, to get "Win-Win" is our main targe. We always focus on improving our quality. And we have buit up a professional after-sale services team with rich-experienced in machine commissioning and installation. We believe our quality and service will bring success to each customer.
Welcome final users and distributors from all the world contact with us and create success.
With your support and our effort, we deeply believe that the tomorrow of sevenstar will be much better.
