GM2216 5 Axis CNC Gantry Cutting Lathe Machine Center Advanced Milling Machines for High-Quality Production

Product Description

GM2216 Production Description

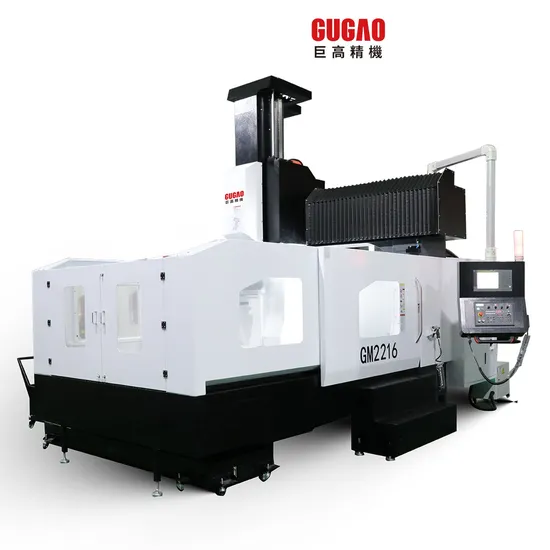

GM2216 is a fixed beam and fixed column gantry machining center machine tool. It is developed based on the most popular, advanced and flexible machine tool design concept in the world. It is suitable for machining various large workpieces in industries such as aerospace, shipbuilding, power generation, heavy machinery, locomotives, machine tools, textile machinery, printing machinery, and automobile cover molds.
The high-strength, high-rigidity design and large-flow chip removal channel structure of this machine tool have the characteristics of high precision, high efficiency, flexibility, and environmental protection. Its performance indicators and precision indicators meet relevant national standards.
The whole machine adopts a moving table gantry structure. The bed is fixed, and the workbench moves in the X direction on the bed; the ram moves in the Z direction on the slide; the slide together with the ram moves in the Y direction on the gantry beam; the X and Y axes use heavy-load linear rails, and the Z axis is a plastic-coated hard rail. The spindle assembly is placed at the lower end of the ram; the whole machine has a reasonable layout, beautiful appearance, and easy operation.
Spindle: It adopts a high-speed spindle unit, and the spindle adopts BT50 specifications.
Tool magazine: The tool magazine adopts a disc-type tool magazine with reliable quality and stable performance. (Optional)
Drive: The three-axis motor and high-precision ball screw adopt direct drive. The ball screw is pre-stretched and installed to improve the transmission rigidity and positioning accuracy.
The quality of the finished products of all machine tool parts and components is in line with the product drawings and relevant technical requirements. Its safety standards comply with the relevant provisions of GB15760-2004 "General Technical Conditions for Safety Protection of Metal Cutting Machine Tools", and its accuracy standards comply with the relevant provisions of GB/T17421-2000 "General Rules for Machine Tool Inspection" and GB/T19362.1-2003 "Gantry Milling Machine Inspection Conditions".
Main Paremeters

Name		Unit	Parameter	Note
Travel	Three axis travel	mm	2200/1800/900
	Distance from spindle end face to worktable center	mm	150~1050
	Distance between two columns	mm	1600
Worktable	Worktable Size(L*W)	mm	2300×1400
	Maximum load-bearing capacity	kg	7000
	T-shaped slot (quantity × width× spacing)	mm	9×22×160
Spindle	Spindle spec/tool holder spec		φ190/BT50
	Rivet Specifications		P50T-1(MAS403)
	Max spindle speed	rpm	8000
	Spindle Output Torque	N.m	143/236
	Motor power	kW	15/18.5
Feed	Three axis fast moving speed(X/Y/Z)	m/min	24/24/12
	(X/Y/Z)Three axis feed speed	m/min	10/10/10
Tool Magazine	Magazine capacity		24
	Max tool diameter/length/weight		φ112mm/350mm/15kg
	Maximum tool diameter (full tool/adjacent empty tool)	mm	112/200
	Tool selection method		Random/Sequential Selection
	Tool exchange time (T-T)	s	4.75
Accuracy	(X/Y/Z) Positioning accuracy	mm	0.025/0.020/0.015
	(X/Y/Z) repositioning accuracy	mm	0.012/0.009/0.008
Others	Linear guide rail specifications (X/Y)	mm	Roller 45/55
	Ball screw specifications (X/Y/Z)	mm	50/50/50
	Servo motor specifications (X/Y/Z)	Nm	36/36/36
	Air source/pressure		280L/min 6~8bar
	Total electrical capacity	KVA	45
	Tank volume	L	370
	Machine size (X×Y×Z)	mm	6050×5650×4500	With chip collector
	estimated weight	kg	16500
