Premium Medium Voltage Cold Shrink Outdoor Termination Solutions

Premium Medium Voltage Cold Shrink Outdoor Termination Solutions

US$200.00 10 Sets (MOQ)

Basic Info.

Model NO.
WLS
Application
Conduct Electricity
Character
Insulation
Species
Terminal
Production Process
Injection Molding
Shape
Mould
Interface Type
Lugs
Certification
BS, UL, VDE
Brand
Dongfeng
Packing Method
Boxes
Color
Grey or
Co
China
Transport Package
Carton
Specification
1.0*1.0*0.4
Trademark
4E
Origin
China
HS Code
4016999090
Production Capacity
50000sets/Year

Packaging & Delivery

Package Size
1100.00cm * 1100.00cm * 1100.00cm
Package Gross Weight
20.000kg

Product Description

6~35kv Cable Accessories Classification Introduction
Explore our range of cutting-edge cable solutions: 4E-NLS Cold Shrinkable Indoor Termination, 4E-WLS Cold Shrinkable Outdoor Termination, and 4E-JLS Cold Shrinkable Joint. These innovations ensure unmatched reliability and performance in all settings.
The 4E-NLS cold shrinkable technologyindoor termination, and the 4E-WLS cold shrinkable solutionoutdoor termination, along with the 4E-JLS cold shrinkablemiddle joint, form an integral part of our advanced electrical solutions. These components are mainly composed of a prefabricated body, terminations (catering to both indoor and outdoor needs) or connecting tube (middle joint) cold shrinkablemulti-core fingerstall (ideal for supporting multi-core cables), and cold shrinkableinsulation tubes along with relative colormetric tubes (suitable for both indoor and outdoor termination). The prefabricated body stress cone and insulating body leverage the precision of plastic injection molding using liquid silicone rubber, ensuring the long-term stability of the package's tight force and a uniform electric field capacity. It consistently maintains an optimal radial pressure to the cable body, with excellent interface characteristics that prevent respiration creepage breakdown during cable operation. The terminations or connecting tubes are meticulously designed to meet cable core material requirements as well as user specifications, ensuring comprehensive protection of cable insulation and waterproofing.
Main Structure Features:
Premium raw materials: Our prefabricated bodies are crafted from high-quality liquid silicone, delivering outstanding insulation, elongation, and breakdown properties, with minimal residual deformation post-expansion.
Cold shrinkablestructure: Utilizing the latest expansion equipment and support tubes, we ensure flawless product expansion without any damage.
Effortless installation: The cold shrinkableexpansion structure requires no specialized training, reducing labor costs with its straightforward, convenient installation.

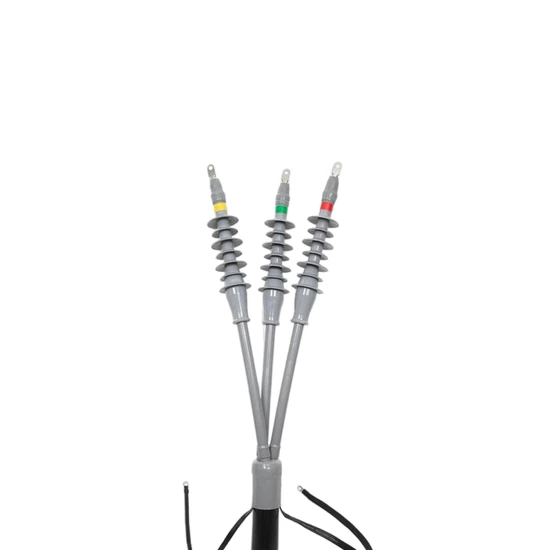

6~35kV Cold Shrinkable Outdoor Termination
Lug2. Marking tube3. Cable insulation 4. Cold shrinkable termination 5. Stress cone6. Insulation screen layer7. Copper screen8. Cold shrinkable protective tube 9. Three fingered tube 10. Copper braid wire
Size mm 8.7/15kV 12/20kV 18/30kV 26/35kV
L 252 370 370 450
A ≥800 ≥950 ≥950 ≥1300
Voltage
Section number
1 2 3 4
8.7/15 25-50 70-120 150-240 300-400
12/20,18/30,26/35 50-95 120-185 240-400 500-630

6~35kV Cold Shrinkable Indoor Termination
Lug2. Marking tube3. Cable insulation 4. Cold shrinkable termination 5. Stress cone6. Insulation screen layer7. Copper screen8. Cold shrinkable protective tube 9. Three fingered tube 10. Copper braid wire 11. Cable
Size mm 8.7/15kV 12/20kV 18/30kV 26/35kV
L 180 288 288 370
A ≥700 ≥850 ≥850 ≥1200
Voltage
Section number
1 2 3 4
8.7/15 25-50 70-120 150-240 300-400
12/20,18/30,26/35 50-95 120-185 240-400 500-630

6~35kV Cold Shrinkable Middle Joint
Copper screen2. Constant force spring3. Stress cone 4. Connecting tube 5. Prefabricated main body6. Copper net7. Braid wire8. Armour tape 9. Armour 10. Cable
Size mm 8.7/15kV 12/20kV 18/30kV 26/35kV
L 378 430 430 488
A 1300 1600 1600 1800
Voltage
Section number
1 2 3 4
8.7/15 25-50 70-120 150-240 300-400
12/20,18/30,26/35 50-95 120-185 240-400 500-630

6~35KV cold shrinkableindoor,outdoor termination, and joint electrical performance parameters.
Rated voltage UO/U (Um) kV 6/10(12.5) 8.7/15(17.5) 26/35(40.5) Railway Uo=27.5 Test result
5min frequency voltage test no flashover, without breakdown under 4.5Uo no flashover, without breakdown
1min frequency voltage under rain test
no flashover, without breakdown under 4Uo
no flashover, without breakdown
Partial discharge at room temperature test discharge volume under 1.73Uo ≤10PC ≤1.6pC
Constant voltage load cycle in the air test heated 2.5Uo and conductor to a temperature to 95-100°C three times, no flashover, without breakdown no flashover, without breakdown
Partial discharge at high temperature test heated cable conductor to 95-100°C,discharge volume under 1.73Uo ≤10PC ≤1.6pC
Partial discharge at room temperature test discharge volume under 1.73Uo ≤10PC ≤1.6pC
Impulse voltage at high temperature test 75kV 95kV 200kV 25kV no flashover, without breakdown
heated cable conductor to 95-100°C,both positive and negative polarity 10 times, no flashover, without breakdown
Constant voltage load cycle test heated 2.5Uo and conductor to a temperature to 95-100°C sixty times, no flashover, without breakdown no flashover, without breakdown
Partial discharge at high temperature test heated cable conductor to 95-100°C,discharge volume under 1.73Uo ≤10PC ≤1.6pC
Partial discharge at room temperature test discharge volume under 1.73Uo ≤10PC ≤1.6pC
Impulse voltage test 75kV 95kV 200kV 250kV no flashover, without breakdown
both positive and negative polarity 10 times, no flashover, without breakdown
15min frequency voltage test no flashover, without breakdown under 2.5Uo no flashover, without breakdown
Outdoor termination salt spray test 1.25Uo,1000h,no flashover, without breakdown, no significant electrical corrosion and mechanical damage no flashover, without breakdown
Indoor termination wet test 1.25Uo,300h,no flashover, without breakdown, no significant electrical corrosion and mechanical damage no flashover, without breakdown
