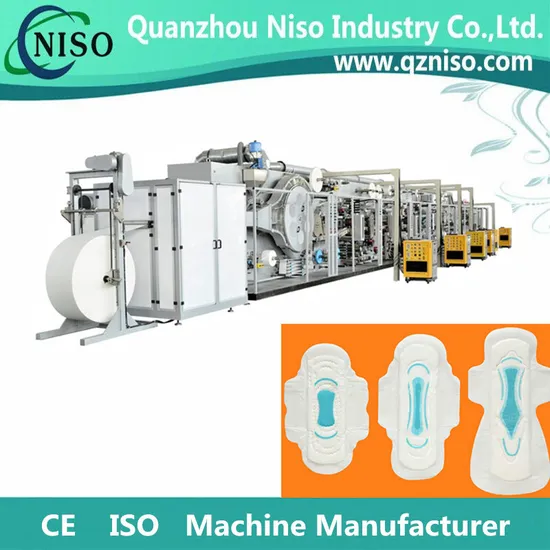

Half Servo High Speed Women Sanitary Pads Machine with Packing Machine

Product Description

Half Servo High Speed Women Sanitary Pads Machine with Packing Machine
Main Function Features of sanitary pads machine:
1.The machine can produce regular type,economic type and high grade type sanitary napkin.

2.The machine can do different size sanitary napkin for women and girl.

3. The machine can do two types, clsssic type and ultra thin type sanitary napkin

4.Materials of stereo-protection are complex and molding on machine
5.The quantity of SAP and fluff pulp can be adjusted freely

6. Raw materials automatic unwinding system,automatic tension control system,automatic splicing units,automatic rejection units,automatic web guard system.

7.The machine can attached with fully automatic packing machine(stacker),make packing simpler and save labor force

8.Women sanitary pads machine is equipped with production door

9.Touchable Screen:Machine switch on/off,running speed,time,counting pieces,parameter setting,alarm,error display,error enquiry(functions setting appear on screen are different according to different machine type)

Main Technical Parameter of women sanitary pads machine

Model	HY600-HSV Semi servo high speed with wings lady pad manufacturing machine
Type	Semi servo type
Capacity	600-800pcs/min
Machine size	L:30m*W:7m*H:3m.(According to customer's plant size)
Operation area	L:30m,W:7m,H:3m
Install power	200KW
Air compressor	3000-4000NL/min
Total weight	50T
Operator Qty	7-8
Efficient rate	>90%
Reject rate	<2%
Packing	Antirust oil & PE film cover & Seaworthy wooden box.
H.S Code	8441809000
Origin	Fujian,China
Delivery time	120days after receiving the deposit.
Payment	T/T, L/C
Standard	CE,ISO,SGC

Our service

Excellent After-sale Service
1. You can send technician to learn operate machine before the machine delivery for 1- 2 month. We can offer food and accommodation.
2. When machine arrives your workshop, we will send technician installing, testing the machine and training your workers.
3. If you need one Chinese technician work for you, we can help you find one work for you.
4. Life-long after service for Full-servo automatic baby diaper manufacturing machine.
5. We are Chinese Listed company since Nov.30th, 2012, 035007, we have ISO certificate, certificate of utility model patent, patent for invention for machine etc, you can trust we are your best supplier.

6.We can do full support for your complete project, from machine's manufacturing and installment, supplying raw materials, designing your factory layout, workers training to final production.
7.We have served customers from over 100 countries in the world untill now.
8.We can offer you very good machines and service at good price.
(we have our own parts processing workshop)
9.We are factory manufacturer, not trading company.

Raw Materials needs for Sanitary Napkin Machine.

1. Fluff type with quick easy package: pulp + Hydrophilic nonwoven (perforated nonwoven/film) + tissue paper + PE film + SAP + hot melt glue + release paper + PE packing film + Easy tape
2.Ultra-thin with quick easy package: Hydrophilic nonwoven (perforated nonwoven/film)
+ SAP paper + PE film + hot melt glue + air laid paper + PE packing film + Easy tape
3.Fluff type wings shape: pulp + Hydrophilic nonwoven (perforated nonwoven/film ) + tissue paper + PE film + SAP + hot melt glue + release paper
4.Ultrathin type wings shape: pulp + Hydrophilic nonwoven (perforated nonwoven/film) + SAP paper + PE film + SAP + hot melt glue + release paper
5.Without wings: pulp + Hydrophilic nonwoven (perforated nonwoven/film) + tissue paper + PE film + SAP + hot melt glue + release paper
