High Speed Computerized Eyelet Button Holing Sewing Machine

Product Description

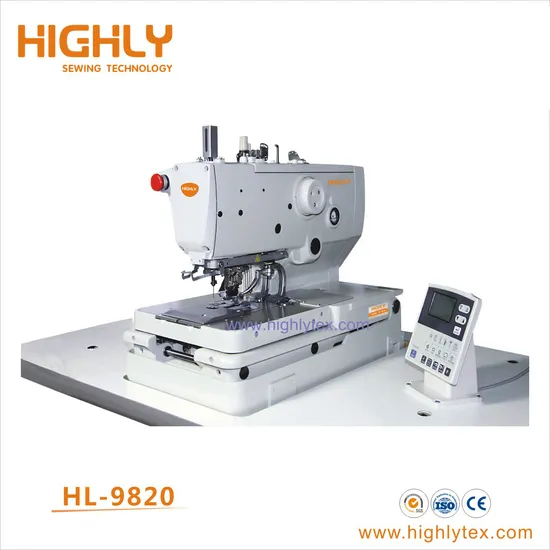

HL-9820 High Speed Computerized Eyelet Button Holing Sewing Machine
HL-9820 High Speed Computerized Eyelet Button Holing Sewing Machine
1.This machine is can sew two different types of stitches, whipping stitch and purl stitch.
2.The sewing seam is very beautiful and firmly.
3. High sewing speed and adjustable button hole length width and stitches number.
4. Automatic lubrication system and thread trimmer are equipped.

HL-9820 is applicable for thick material, thin material, leather, jeans, knitted fabric etc, what's more, the wrought buttonholes can be divided into three categories: straight buttonhole, and daisy buttonhole, and the first two includes buttonholes with round bar tack, with straight bar tack, with taper bar tack and without bar tacking.
Remarkably, 9820 absorbing the essences of other machines, can fully meet all the requirements of the production. All the factors-innovative cutter system, no cutter-changing required, automatic adjustment of cut length, programmed operation sequences, the default length of buttonholes and one-stage completion-contribute to the high efficiency and short process.
Application Stitching Shape / Patterns Stitch System Needle Distance Sewing Speed Sewing Length Presser Foot Length Knife Length Taper Bar Length Needle Number Needle Throwing Width Power

Jeans,Cotton Pants and Working Wear / HL-9820

Buttonhole without a bartack / Buttonhole with a round bartack / Buttonhole with a straight bartack / Buttonhole with a taper bar. 10 different stitching shape patterns of eyelet buttonhole / 89 different patterns can be stored in memory and selected.

1-needle, double chainstitch(with gimp)

0.5-2mm

1000~2,500sti/min

5-42mm / 8-50mm

30mm

22mm / 30mm

3-15mm

D0×558 Nm80~Nm120

Mechanical adjustment of the needle throwing width:2.0~4.0mm Compensation of the needle throwing width (by the lower feed dog):1.5~5.0mm

550w AC Servo Motor

HIGHLY brand sewing machine company is a reliable leading manufacturer and distributor for all kinds of sewing machines. The products scope include basic industrial sewing machine, such as single & double needle lockstitch sewing machine, heavy duty sewing machine, overlock sewing machine, interlock sewing machine, multi needle sewing machine, button attaching and button holing sewing machine, bar tacking sewing machine, zigzag sewing machine, handstitch sewing machine, chainstitch and blindstitch sewing machine, household sewing machine and cutting equipments. Also includes some special type and high precision technology sewing machine, such as leather sewing machine, shoes sewing machine, sofa sewing machine, jumbo & woven bag sewing machine, suitcase & handbag sewing machine, sail & tent sewing machine, labor & rope net sewing machine, seat & cushion sewing machine, programmable pattern sewing machine, mattress sewing machine, embroidery sewing machine, carpet overedging sewing machine, and so on.
We are very especially professional on super heavy thick material sewing machines and long arm sewing machines. Our sewing machines are widely used in clothes, shoes, sofa, jumbo bag, woven bag, suitcase, handbag, carpets, tent, umbrellas, luggage, leather and knitting industry. The reliable quality and good after sale service gained a positive comments and reputation from our customers. The sales network has covered more than 80 countries and regions in the world, such as South & North America, Europe, Middle East, Asia, Africa, etc. The Company has obtained in succession the certification of ISO9000, SGS, and CE certificates.
With the principle of "Highly products, Highly quality, Highly service", we would like to continue researching more advanced and functional garments machinery for different markets and requirements, so that we develop stable business cooperation with all clients from all over the world on the base of mutual benefit. "Highly Products, Highly Quality, Highly Service", you choose, you believe. You are always welcome to cooperate with HIGHLY brand sewing machine company, including OEM cooperation with your brand. You are warmly welcome to be our agency with our registered brands Highly, PARADA, WELMAC, Mastman.
