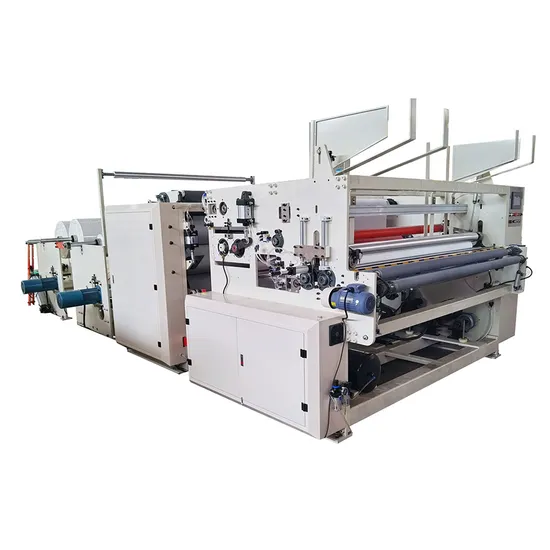

Automatic Color Glue Lamination Kitchen Towel Paper Roll Making Machine

Product Description

Product Description Full automatic Color Glue Lamination Toilet Paper Machine
Kitchen Towel Paper Roll Making Machine
CIL-SP-C
Video link:
https://qzxinda.en.made-in-china.com
Desciption of production
This equipment is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4 m². The highest production speed is 150-200m/min. This model is the ideal equipment for paper making factory and paper processing factory.
This equipment can process raw paper of 1.2m 1.75m 1.95m 2.15m 2.35m 2.55m 2.75m in width.
This machine is consist of stand of raw material, paper conveying unit, embossing unit, spraying unit, perforating unit, reeling unit, electricity control and cutting system. Product Parameters Technical data:
1.Production speed:100-250m/min (toilet paper roll) 2. Product specification:¢100-¢300mm(can be adjustable)
3. Punching line distance:85-135,170-270mm(can be adjustable)
4. Power:11Kw (380V 50Hz)
5. Overall size(LxWxHm):
7.5x2.25x1.9 6.Raw jumbo roll: 1.35-2.85m in width ,17-22gsm/layer,1500mm in diameter
7.Weight:About 4.8 M/T

Model	1800C	2000C	2400C	...	2800C
Jumbo roll width	1750-1800mm	1950-2000mm	2350-2400mm	...	2750-2800mm

Packaging & Shipping Packaging & Shipping
in standard export packing wooden case(machine surface cover PE film, then pack by seaworthy wooden packing)
After Sales Service After-sale services
1. The machine will guaranteed for one year. We will replace the damaged spare parts (except easy damageable parts)within one year. After one year, we will trace the technology and quality for long time.
2. We will equipment the easy damageable parts with the machine. Company Profile Company information
Quanzhou Xinda Machinery Co. Ltd is located in the Quanzhou City, Fujian Province, China. Our company was founded in 1997. Beginning in the 1980s, we engaged in machinery manufacturing, main production toilet paper machine, napkin paper machine, facial tissue machine, and paper cup coaster machine manufacturing machinery. And we can also design and manufacture machine according to the customer's requirements. Including non-standard machine. FAQ FAQ
How about your machine quality, we are worry about the quality?
Xinda is a mature brand in china,more than 20 years manufacturing experience of different kinds of paper machines.
We strictly manufacture and manage according to IOS9001:2000 System.
and can match all the CE standard or more strict standard.
our paper machine is running well in more
