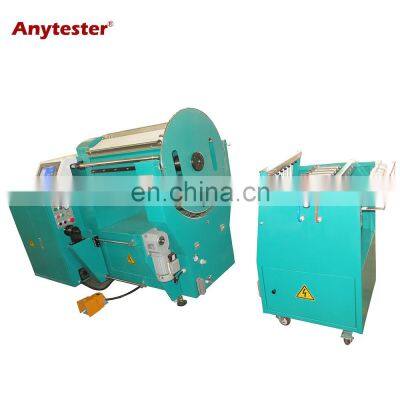

Automatic Single Yarn Warping Machine Special design for sample weaving in lab or research and development institute

Product Description

Product Description
Product Description
AT241C Automatic Single Yarn Warping Machine is used for automatic warping of production sample, weaving sample and small batch fabrics for lab. As the textile develops in the direction of small quantity, diverse kind and prompt delivery, so our company has developed AT241C Small Sample Warping Machine on the increasing requirements on product samples. It is widely used in the sampling in the industries including wool spinning, cotton spinning, colored woven and natural silk etc.
Specification

Model		AT241C
Warping width		200~700mm
Warping speed		0~3000m/min (frequency control)
Warping length		1.8~18m
Applicable yarn density		5~500tex
Number of bobbins		8pcs (automatically-changeable)
Yarn arrangement		Servo motor control with accuracy of 0.01mm reachable
Applicable warp beam diameter		¢60mm
Applicable warp beam length		300~700mm
Air pressure required		0.4~0.8Mpa
Air consumption		Max. 200L/h
Power supply		AC380V 50Hz, three-phase
Dimensions		4650×1100×1400mm(L×W×H)
Weight		Approx.1350kg

Detailed Images
★ Touch screen display and PLC control and software for arranging the laying of yarn;
★ Special design for sample weaving in lab or research and development institute;
★ Accuracy of warp displacement reaches 0.01mm;
★ SMC rotating cylinder used for color selection, accurate and reliable to change yarn;
★ AC frequency converter to control yarn winding, online detect winding speed;
★ Frequency converter control beaming mechanism, ensure constant winding speed while beaming;
★ Pneumatic pressuring and damping structure to acquire even yarn tension;
★ Bobbin creel adopts air pressure tension-relaxation-preventing structure; avoid tension relaxation while changing yarn;
★ Automatic warp break stop and yarn double winding stop;
★ Foot pedal for unwinding;
★ With inching and stop button for the safety of operator;
Packing & Delivery

Packaging
Size(cm)	465(L) * 110(W) * 140 (D)
Weight	1350Kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Item	T/T	EXW 30% T/T in advance, paid the balance before shipment FOB CFR(C&F) 30% T/T in advance,paid the balance against copy of B/L CIF	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance,paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 50,000usd
Delivery Time	7~10 days after receiving payment for one container
