High-Quality Silicon Carbide Graphite Crucible for Melting Metals

Product Description

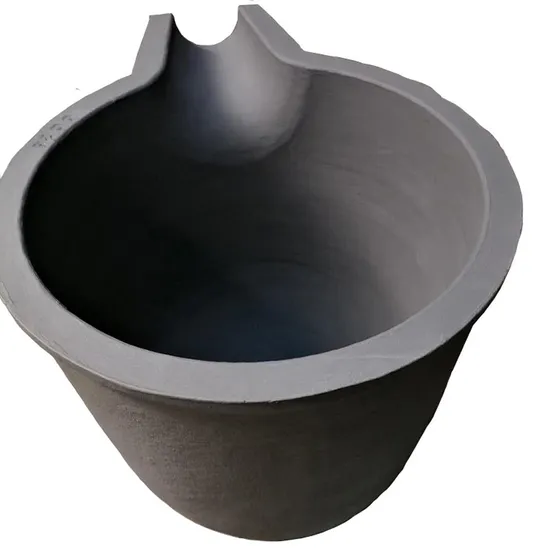

Product Description Silicon Carbide Graphite Crucible

Application	This silicon carbide graphite crucible is mainly used in the melting of non-ferrous metals, such as aluminum copper, brass, etc. With the advantages of fast heat conduction, high temperature resistance, good thermal stability and no reaction with melting.
Feature	Use high thermal conductivity of graphite and other raw materials, shorten the melting time. Heat shock resistance: high heat shock resistance, not easy to crack when cold or hot. High heat resistance: high temperature resistance, can withstand 1200~1650 high temperature.
Physical properties	Bulk Density: 2.21-2.25 g/cm3 Apparent porosity: 9-12% Modulus of Rupture: 8-12 Mpa Thermal Expansion Rate: 3.0-4.5 (10-6 K-1) Electrical Resistance: 3.5-4.5*10 -3Ω .CM (24ºC) 3.0-4.0*10 -3Ω .CM (800ºC) Thermal Conductivity: 140-150 W/(m*K) (25ºC) 40-50 W/(m*K) (800ºC)
Chemical analysis	C (free C) 38-49% SiC (silicon carbide) 39-53% SiO2 3-5% Si 2-4%
Working temperature	0-1700ºC
Guarrantee	6 months
Delivery time	Within 15-30 working days after receipt of the down payment
Overseas Market	Southeast Asia, Middle East, Eastern Europe, North Africa, South America, etc
Payment terms	T/T, LC, Western Union.
Certifications	ISO

Detailed Photos
Product Parameters
Please provide the following detail information when request for quotation.
1.What's the melting material? Is it aluminum, copper or others?
2.What's the loading capacity each batch?
3.What's the heating mode? Is it electric, nature gas, LPG or oil?
FAQ 1. Q: what is your MOQ?
A: 1 set, we would like to do business with every clients. No matter how many sets you order, we would try our best to meet the demands.
2. Q: What is your application?
A: It is mainly used in the melting of non-ferrous metals, such as aluminum copper, brass, etc.
3. Q: Does your company work on OEM?
A:Yes, we have a professional design and technical team to do the customization
4. Q: What's the delivery time after the order is placed?
A: Within 15-30 working days after receipt of the down payment.
5. Q: How about the warranty?
A: The warranty is 5-6 months.
