Tfa8s Y Axis CNC Center CNC Lathe Machine Slant Bed Turning Metal

Product Description

Product Description

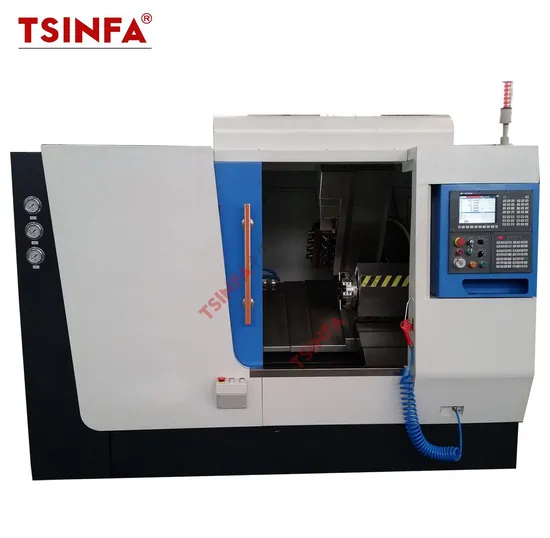

TFA8S CNC lathe is a semi-closed-loop inclined bed turning and milling machine with X, Y, Z, and C axis servo control. It has a compact and reasonable structure and dimensions, and the main axis (C axis) is driven by a servo motor. It can realize the turning of the outer circle, end face, and thread of various materials of shafts, disks and other parts, and various processes such as radial and axial curved surface milling and drilling, and is suitable for the efficient processing and manufacturing of small parts.

Product Parameters

Specifications	unit	TFA-8S
Max. swing over bed	mm	450
Max. swing over cross slide	mm	160
Max. processing length	mm	450
Cross slide length	mm	780
Bed structure	/	30° slant bed
Distance from cross slide to spindle center	mm	80
Spindle nose	/	A2-5
Spindle bore	mm	56
Max. spindle speed	rpm	50-4500
Main motor power (C axis)	kW	7.5
Power head specification	/	Side 4 + end 4
Power of power head	kw	2.3
Power head speed	r/min	3000
Center distance of power head	mm	60
X axis travel	mm	500
Z axis travel	mm	450
Y axis travel	mm	240
X axis Rapid traverse speed	mm/min	24000
Z axis Rapid traverse speed	mm/min	24000
Y axis Rapid traverse speed	mm/min	15000
Tool post type		8 station hydraulic turret 4 + 4 power head
X / Y / Z positioning accuracy	mm	0.006
X / Y / Z repeated positioning accuracy	mm	0.003
Spindle (c-axis) indexing and positioning accuracy	/	0.02"(70 arc-second)
Spindle (c-axis) indexing and repeated positioning accuracy	/	0.006"(20 arc-second)
weight	T	3
Dimension	mm	2500x1800x1800

Certifications
Company Profile
Shandong TSINFA CNC Equipment Co., Ltd. was founded in 2005, The registered capital is 20 million yuan. The company has independent import and export rights, and obtained the European quality management council CE certification. The company is located in the south of Shandong province Mozi hometown, Beijing-Shanghai high-speed railway, Beijing-Fuzhou expressway, 104 national highway through the north and south, to the south is Weishan lake, to the north lies mount tai, convenient transportation, industrial development. As a member of China machine tool industry association (CMTBA), passed the ISO 9001:2015 quality management system certification, the company is constantly innovating in the development, relying on the strong economic strength, advanced and sophisticated professional production equipment, strong technical force, to standardize the entire operation of the enterprise management system mode. Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, inclined bed CNC lathe, general lathe, vertical milling machine, horizontal milling machine, universal milling machine, turret milling machine, drilling and milling machine, slotting machine, gouging machine, turning milling complex machining center, etc. The equipment is exported to USA, Poland, Russia, Sri Lanka, Peru, Chile, Saudi Arabia, southeast Asia and Africa and other countries and regions. It is widely used in automobile, motorcycle, textile machinery, hardware products, 3C, construction machinery, home appliances, railway, ship, other industries. We adheres to the quality of integrity, ensures that every equipment is qualified to leave the factory, to ensure that they can do their best for employees and customers.
Packaging & Shipping
FAQ
Q1:How can l choose the most suitable machines ?Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .Q2: What's your main products of your company?Products cover metal cutting machine and metal forming machine two categories. Metal cuttinging machine tools are: CNC machining center, CNC lathe, manual lathe, manual milling, sawing machine, etc. Metal forming machine: hydraulic press machine.Q3: Where is our factory located? How can l visit there? Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.You are warmly welcomed to visit us.Q4. How do you transport it?Provide Transportation Solution DDP/CIF/FOB/FCAQ5: What's the Payment Terms ?T/T ,30% initial payment when order,70% balance payment before shipment .06: What's the MoQ?A: 1 set .(Only some low cost machines will be more than 1 set )We want to know:1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!2.lf need ClF Price, please kindly tell us the port of destination.
