China Rubber Cutting and Slitting Machine Pg-Hvg-600

Product Description

Technical Data of Rubber Strip Cutting & Slitting Machine
Model	PG-H-600	PG-H-800	PG-H-1000	PG-HVG-600
Size	1170*1300*1400	1170*1500*1400	1170*1700*1400	1170*1300*1400
Weight	900kg	1100kg	1300kg	900kg
Cutting Direction	Horizontal	Horizontal	Horizontal	Horizontal& Vertical
Cutting width	≤580mm	≤800mm	≤1000mm	≤580mm
Cutting Length	0.1-1000mm	0.1-1000mm	0.1-1000mm	0.1-1000mm
Cutting Thickness	≤30mm	≤30mm	≤30mm	≤30mm
Blade material	Tungsten Steel W18	Tungsten Steel W18	Tungsten Steel W18	Tungsten Steel W18
Feeding mode	Servo motor	Servo motor	Servo motor	Servo motor
Cut Speed	≤80/min	≤80/min	≤80/min	≤80/min
Power supply	4kw 3ph 380v	4kw 3ph 380v	4kw 3ph 380v	4kw 3ph 380v
Speed Control	PLC& Inverter	PLC& Inverter	PLC& Inverter	PLC& Inverter
Operation Mode	Touch Screen	Touch Screen	Touch Screen	Touch Screen

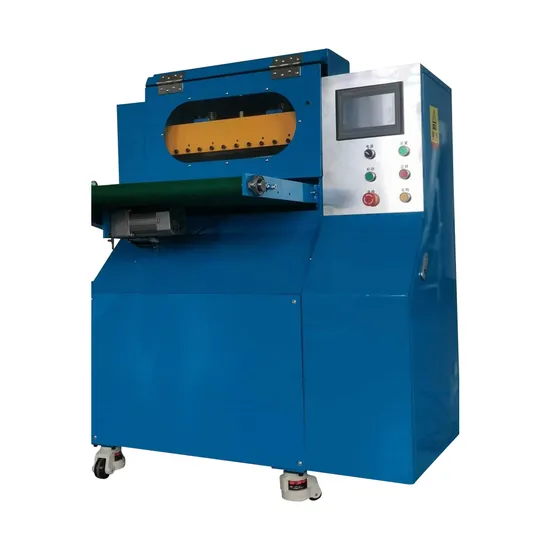

Machine Picture
Main Features Numerical Rubber Cutting Machine use well-know brand PLC running at high precision and quick response. Feeding system use brand servo motor with high accuracy, high stability and long-life features. Feeding precision can be+-0.1mm and if the cut length is less than 20mm, the weighing precision can be+-0.2g Main power uses 3phase slowdown brake motor, it is powerful and very safe. Use imported fiber sense position components, it is accurate and durable. Driven by chain belt system, can cut FKM sheet of hardness 90ºC easily. 7inch HMI touch screen has the function of automatic counting, monitoring and warning notice, it is convenient and more direct viewing Cutting speed is controlled by brand inverter, the cutting speed can be adjusted directly and then it leads to high efficiency. Strip outlet mouth apply safety door device, two steps protection method to ensure operation safety Automatic material press system allows lower burden on operator and more convenient operation Cutting blade use Tungsten steel W18 to ensure durability and long cutting life of blade Cutting blade apply bevel cut design, it can reduce the cutting resistance and improve cutting speed, upper blade and lower blade cooperate together precisely to ensure less abrasion on the cutting blades All mode can customize the slitting cutter to cut the rubber sheet in both horizontal and vertical direction. And the slitter cutter blades are easy to change or maintain. Oil lubricant system use automatic electromagnetic pump to reduce break and can filling the oil automatically Innovated and advance design and manufacturing of the CNC rubber cutting machine is very easy to operate By using touch screen, any length or cutting speed can be adjusted during the operation. Applications:
To cut the rubber sheet in precise strips with a quick and efficient process.
