New Wheel Excavator 7 Ton 8 Ton Wolf Excavator in Constructions
| US$22,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WE75L
Type
Crawler Excavator
Usage
Special Excavator, Wheeled Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
>1.5m³
Size
Large-Scale
Certification
CE
Condition
New
Certificate
CE
Colour
Yellow
Engine
Yuchai
Engine Power
62.5kw
Weight
8000kg
Digging Height
6245mm
Digging Depth
3820mm
Digging Radius
6360mm
Wheel Base
2400
Wheel Thread
2200
Mini Ground Clearance
260mm
Dozer Blade
1880*350mm
Mini Swing Radius
1940mm
Bucket Digging Force
45kN
Arm Digging Force
36kN
Transport Package
Roro/Container
Specification
5930*2205*2850mm
Trademark
WOLF
Origin
Shandong
HS Code
8429521200
Production Capacity
5000 Sets/Year
Packaging & Delivery
Package Size
593.00cm * 220.00cm * 285.00cm
Package Gross Weight
7000.000kg
Product Description

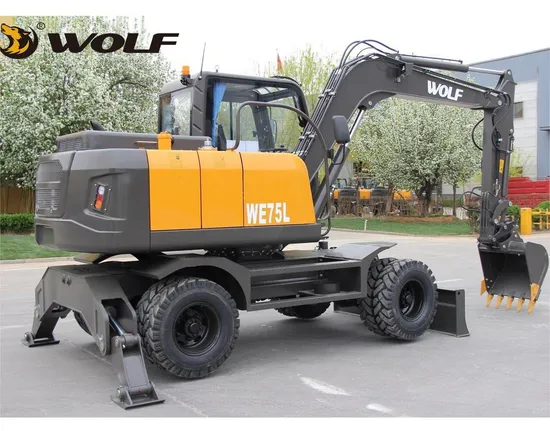

Wolf wheel excavator WE75L Product DescriptionStandard configuration:
Yuchai YC4DK85 engine 62.5kw
Enclosed cabin
Air conditioner
Mechanical walking
Automible axle
Gear wheel pump
5 gears shifts
Extra pipeline for hammer
Digging bucket
Optional configurations:
Hub reduction axle
Piston pump
A type legs
Cabin inside:
Product Parameters
Specification:
| Overall Length | mm | 5930 |
| Overall Width | mm | 2205 |
| Overall Height | mm | 2787 |
| Ground clearance | mm | 260 |
| Undercarriage width | mm | 2250 |
| Dozer Blade | mm | 1880×350 |
| Boom length | Mm | 3650 |
| Arm length | Mm | 2600 |
| Operation weight with legs | Kg | 8000 |
| Operation Weight | KG | 7000 |
| Bucket Capacity | m3 | 0.21 |
| Max. reach Radius | mm | 7550 |
| Max. Dumping Height | mm | 7200 |
| Max.loading capacity | Kg | 400 |
| Max. Dozer Cutting | mm | 130 |
| Max. Dozer Lifting | mm | 310 |
| Tail Swing Radius | mm | 1940 |
Packaging & Shipping
2 sets WE75L wheel excavator can be loaded into 40ft container.
After Sales Service
The warranty is 18 months, starting from you receiving the wheel excavators. Within the warranty, any part breaks owing to quality issue, new part will be sent to you soon. And you will get one exclusive service staff helping you solve any problem.
Related other productions
Wolf equipment also provide clawler excavator, wheel loader, backhoe loader and skid steer loader. Let me know please when you have any requirements. I would like to recommend suitable machine for you.
Wolf machines in abroad
Now, you can find wolf loader, wolf excavator and wolf backhoe are in different countries, helping people to solve many works easily.
I am Nessa from wolf equipment, contact me please if you need any machines.
Welcome to visit WOLF~~
