High Voltage 15kv Adjustable Digital Megohmmeter for Insulation Testing

Product Description

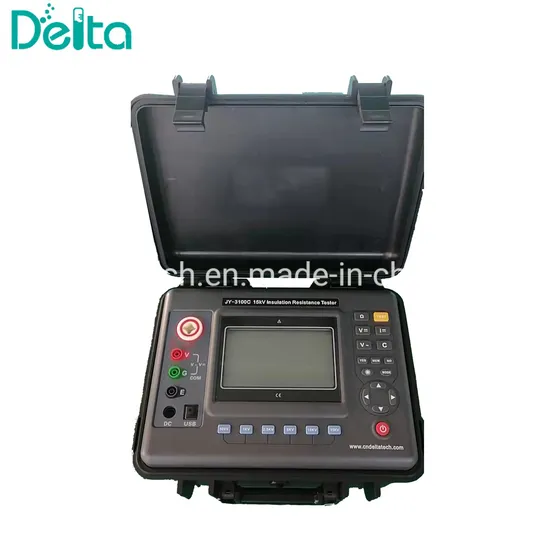

JY-15kV Adjustable Digital Megohmmeter 15kV Insulation Resistance Tester Product DescriptionThe 15kV insulation resistance tester also named megohmmeter, high-voltage insulation resistance tester, etc.
It is suitable for measuring the resistance value of various insulating materials and the insulation resistance of transformers, motors, cables and electrical equipment. At the same time, it can output a variety of different voltage levels with the step-by-step voltage adjustment function (for example, the 15KV model can generate 12KV level, which is more widely used).
It also has the functions of measuring DC voltage, AC voltage, absorption ratio and polarization index.
It is a common and indispensable instrument for telecommunications, electricity, meteorology, computer rooms, oil fields, electromechanical installation and maintenance, and industrial enterprises that use electricity as industrial power or energy.
Product Parameters

JY-3100A	Rated voltage	100V, 250V, 500V, 1000V, 2500V, 5000V
	Insulation resistance range	0.01MΩ~10TΩ	resolution: 0.01MΩ
JY-3100B	Rated voltage	250V, 500V, 1000V, 2500V, 5000V, 10KV
	Insulation resistance range	0.01MΩ~35TΩ	resolution: 0.01MΩ
JY-3100C	Rated voltage	500V, 1000V, 2500V, 5000V, 10KV, 15KV
	Insulation resistance range	0.01MΩ~50TΩ	resolution: 0.01MΩ

DC voltage range	0~1000V	Resolution: 0.1V
AC voltage range	0~750V	Resolution: 0.1V
DC Current	0.1nF~6mA	Resolution: 0.1nA
Capacitance	10nF~50uF	Resolution: 10nF
Output short circuit current	≥6mA
Measurement of absorption ratio and polarization index	Yes
Power supply	12V chargable battery
Backlight	Controllable gray and white screen backlight, suitable for use in dark places
Display	4-digit large LCD display, gray and white screen backlight
LCD screen	108mm×65mm
Dimension	240mm(L)*188mm(W)*85mm(H)
Weight	2750g (with battery)
USB function	With USB interface, software monitoring, storage data can be uploaded to the computer, save and print
Test cable	High voltage rod 3 meters (red), high voltage cable black 1.5 meters, green 1.5 meters.
Data storage	500groups,when flashing "FULL" symbol, it indicates the storage is full
Data review function	"MR" symbol
Over-range display function	">" symbol
Alarming	It will alarm when the resistance is low and voltage is high. The alarm value needs to be set.
Power consumption	Standby: 30mA Max (backlight off); Turn on the backlight: 42mA Max,m; Measurement: 200mA Max (backlight off).
Automatic turn off	No operation in 15min
Insulation resistance	≥50MΩ (Between measurement line and enclosure)
Withstand voltage	AC3kV/50Hz 1min
Working environment	-10ºC~+50ºC<85%RH
Storage environment	-15ºC~+55ºC<90%RH
Safety regulations it comply with	IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529(IP54), etc.

Features
JY 15kV Insulation Resistance Tester has a large LCD screen with gray and white backlight display, data storage, data access, alarm, automatic shutdown and other functions.
The whole machine is beautiful, with high resolution, convenient operation, convenient carrying, accurate, reliable, stable performance and strong anti-interference ability.
And it has a shock-proof, dust-proof and moisture-proof structure.
It consists of medium and large scale integrated circuits. It has large output power and many output voltage levels (there are 6 voltage levels).Detailed Photos
