Digital Blue Hammer Test/Rebound Hammer Concrete

Product Description

Product Description

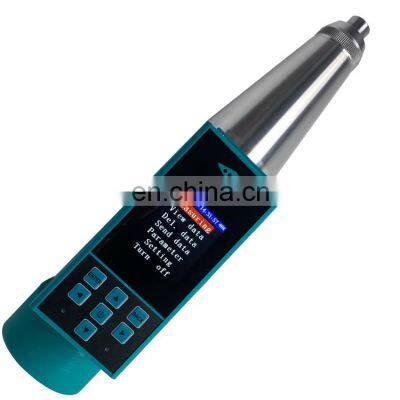

HT225 Digital Rebound HammerProduct DescriptionHT225 Integrated Schmidt hammer is a non-destructive testing and evaluation instrument for the compressive strength of hardened concrete in building structures.It can detect and record parameters such as rebound value, carbonization depth value angle, test surface and so on. The strength estimation results of the component can be given immediately after the detection is completed.ParametersData Acquisition TerminalMechanical Rebound TesterSensorMOS image sensorRange of strength measurement10-60MpaInput modeAutomatically record rebound valueNominal kinetic energy2.207JDisplay modeLCDStiffness of Spring Strike7.84N/cmSystem capacity200,000 measuring pointsHammer stroke75mmPowder modeRechargeable large capacity lithium batteryIndicative consistency error＜0.5Data processingAutomatic data revision. calculation and analysisCalibrated rebound value of steel anvil80±2Volume123x55x25mmVolume55x55x270mmWeight200gWeight1.0kgWorking environment temperature-10℃-45℃Humidity of working environment＜90%RHPacking specificationMaterial: Engineering Plastics Volume: 420x140x335mm Weight: 6kgMain Features1.Integral design, compact size; 2.The new MOS image sensor is used to subvert the traditional signal acquisition method, and the data is accurate and reliable. 3.Special color screen display, automatic recording of detection time and date; 4.The machine matches the national and local curves and can be set and selected by itself. 5.The parameters of angle, test surface, pumping and carbonization can be set on site. 6.Voice reading function, noisy environment can also be equipped with headphones to monitor; 7.Optional micro printer to print test results on site; 8.Ultra-low power design, continuous use of power supply for 8 to 10 hours; 9.Equipped with high-speed USB data transmission port, data can be transmitted to the computer. 10.The upper computer software saves the data in Excel format, and can directly generate word report format. The later software processing is simple and convenientApplicationContact USCangzhou Lovely Technology Co., Ltd is specialize in NDT Equipment and Material testing machine over 10 years,Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions,which winfavorable comments from customers worldwide.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.We have strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.Our Customers and patent certificatePacking & DeliveryWhy Choose us ?Q1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material. Besides, we could also purchase products as request.Q2: Where is the loading port?A: Tianjin port or Qingdao Port.Q3: What's the MOQ of the product?A: Different items have different MOQ. Welcome to contact our sales for getting more details.Q4: What certificates do you have?A: We have ISO 9001, CE, SGS.Q5: Do you have an OEM service?A: Yes. We can provide OEM services according to your requirements.Q6: What are the payment terms?A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
