Semi Auto Type Blow Moulding Machine for Plastic Bottle (BM-8Y)

Product Description

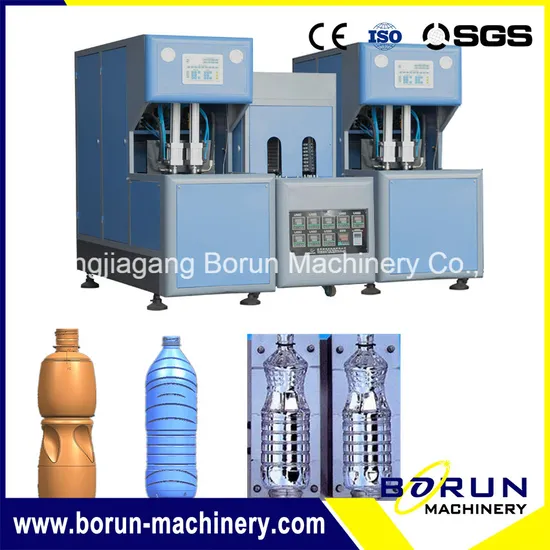

Semi Auto Type Blow Moulding Machine For Plastic Bottle (BM-8Y)

BM-8Y semi automatic PET bottle blow molding machine is suitable for producing PET plastic containers and bottles from 100-2000ml. It is widely used to produce the carbonated bottle, mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
Equipment list:

NO.	NAME	MODEL	QTY
1	Semi-automatic PET bottle blow molding machine (one oven+two blowers)	BM-8Y	1set
2	Blowing mold	100ml-2L	1set
3	HP Air Compressor	1.2m3/min 30Kg	1set
4	Air dryer	2.0 m3/min 30Kg	1set
5	Air filter	2.0m3/min 30kg	2sets
6	Water chiller	3HP	1pc

*Spare parts List :
Seal cushion(10pcs);Lamps(5pcs);Fuse(3pcs);Switch(1pcs);breaker(1pcs);Silicon controlled (1pcs)
pressure adjust (1pc)
Features:
· Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
· The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
· The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
· The machine can be operated in the step-by-step mode and the semi-auto mode.
· The machine is small with low investment, easy and safe to operate.
Technical Parameter of blow molding machine:

Model	BM-8Y
Container	Product material	PET
	Volume	0.1L-2L
	Theoretical output	1200-1500PCS/H
	Max. product diameter	180mm
	Max. product height	300mm
Molding	Max. mold plate Dimension(L x W)	390x345mm
	Die force	100KN
	Die stroke	270
	Max. pulling stroke	400
	Blow pressure	1.2-2.8Mpa
	Operation pressure	0.8Mpa
Machine size and weight	Machine size(LxWxH)(m)	1.46x0.58x1.8m
	Machine weight(KG)	650KG
	Heater (L x W x H)	1.35x0.55x1.15m
	Heater weight	350Kg
	Power	17.5kw

HP air compressor:

Air compressor	Unit	1.2M3/min 30KG
Volume	M3	1.2
Pressure	Kg	30
Speed	r/min	850
Power	KW	15
Overall Dimension	mm	2000*1100*1600
Weight	kg	620

Air Filter:

Refining-Filter	Unit	1.0M3/30Kg
Flow Capacity	M3/Min	1
Max. work pressure	Mpa	3.0
Inlet Temp.	ºC	≤50
Cold Medium	mm	650*250*250
Weight	Kg	15

Air dryer:

Refrigeration Air Dryer	Unit	2.0M3/min 3.0Mpa
Flow capacity	Nm3/min	2.0
W.P	Mpa	3.0
Inlet Temp.	ºC	≤80
Dew point	ºC	23
Ambient Temp.	ºC	≤38
Power supply	V/HZ	220/50
Compressor power	Kw	0.75
Cold Medium	mm	1050×650×1100
Weight	Kg	120

water chiller:

Model		03WCI
4.4/38ºC Cooling capacity(Kcal/h)		7188
Compressor		All-closed vorticity
Compressor power (KW)		2.5
Refrigerant		R22
Chilled water pump power(KW)		0.75
10ºC Max. flow rate of chilled water(L/min)		55
Flow water inlet and outlet pipe		1''
Condensing water rate L/min		≥36
Chilled water inlet and outlet pipe		1''
Exterior dimension	Length(mm)	1000
	Width(mm)	600
	Height(mm)	1180
Water tank capacity	L	50
Weight	Kg	150
