Cjx2 AC Contactor with Good Material IEC60947-4-1
| US$1.96 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
KNC1
Phase
3
Main Circuit Rating Voltage
690V
Main Circuit Rating Current
150A
Type
Ac Contactors
Rated Operation Current
10-400A
Rated Operation Voltage(V)
220V, 230V, 380V, 400V
Ambient Temperature
-5~+40
Action Principle
Electronic Type
Frequency
50/60Hz
IEC
IEC 60947-4
Load
High Power Relay
ISO
ISO9001 ISO14001
Coil Voltage
24, 48, 110, 220, 230, 240, 380, 415, 440V
Transport Package
Carton
Specification
CE
Trademark
korlen
Origin
Wenzhou
HS Code
8537209000
Production Capacity
1000000PCS/Month
Product Description

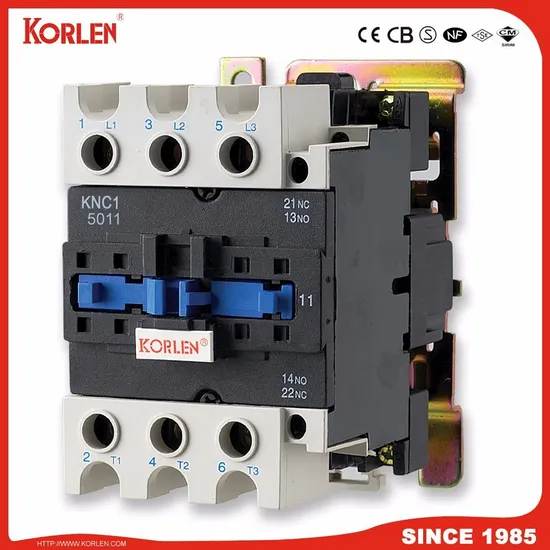

The series KNC1 AC contactor is applicable at the line of AC 50/60 Hz, rated voltage up to 660V and rated current up to 95A for remote switch, breaking and frequent starting, controlling the AC motor. Moreover, the contactor can act as the time-delay contactor, reve-rsible contactor, star-delta starter by the accessories addition such as addition of modular auxiliary contact set. Air timedelay head, mechanical interlock mechanism, etc. Moreover, it could act as the electromagnetic starter by the direct plug of the thermal relay.This product conforms to the requirement of IEC60947-4-1& GB14048.4 standards.
| Type | Rated insulation voltage(V) | Conventional thermal current(A) | Rated operation current(A) | Control power(kw) | No .of contacts | Remark | ||||
| 220V | 380V | 415V | 440V | 660V | ||||||
| KNC1-0910 0901 | 660 | 20 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 3P+NO 3P+NC | Installation method 1.with two screws 2.35mm din rail |
| KNC1-1200 1201 | 20 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 3P+NO 3P+NC | ||
| KNC1-1810 1801 | 32 | 18 | 4 | 7.5 | 9 | 9 | 9 | 3P+NO 3P+NC | ||
| KNC1-2510 2501 | 40 | 25 | 5.5 | 11 | 11 | 11 | 15 | 3P+NO 3P+NC | ||
| KNC1-3210 3201 | 50 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 3P+NO 3P+NC | ||
| KNC1-4011 | 60 | 40 | 11 | 18.5 | 22 | 22 | 30 | 3P+NO+NC | Installation method 1.with three screws 2.75mm or 35mm din rail | |
| KNC1-5011 | 80 | 50 | 15 | 22 | 25 | 30 | 33 | |||
| KNC1-6511 | 80 | 65 | 18.5 | 30 | 37 | 37 | 37 | |||
| KNC1-8011 | 125 | 80 | 22 | 37 | 45 | 45 | 45 | |||
| KNC1-9511 | 125 | 95 | 25 | 45 | 45 | 45 | 45 | |||
| Type | KNC1-09 | KNC1-12 | KNC1-18 | KNC1-25 | KNC1-32 | KNC1-40 | KNC1-50 | KNC1-65 | KNC1-80 | KNC1-95 | ||
| Pick-up voltage 50/60Hz(V) | (0.85~ 1.1)Us | (0.85~ 1.1) Us | (0.85~ 1.1)Us | (0.85~ 1.1)Us | (0.85~ 1.1)Us | (0.85~ 1.1)Us | (0.85~ 1.1)Us | (0.85 ~1.1)Us | (0.85~ 1.1)Us | (0.85~ 1.1)Us | ||
| Release voltage 50/60Hz(v) | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | ||
| Coil power | 50Hz 60Hz | Pick-up(VA) | 70 | 70 | 110 | 110 | 110 | 200 | 200 | 200 | 200 | 200 |
| Holding(VA) | 8 | 8 | 11 | 11 | 11 | 20 | 20 | 20 | 20 | 20 | ||
| Pick-up(VA) | 80 | 80 | 115 | 115 | 115 | 200 | 200 | 200 | 200 | 200 | ||
| Holding(VA) | 8 | 8 | 11 | 11 | 11 | 20 | 20 | 20 | 20 | 20 | ||
| Power consumption (W) | 1.8~2.7 | 1.8~2.7 | 3~4 | 3~4 | 3~4 | 6~10 | 6~10 | 6~10 | 6~10 | 6~10 | ||
