Advanced Copper Winding 3 Phase Oil-Immersed Transformer for Reliable Energy

Product Description

Product Description

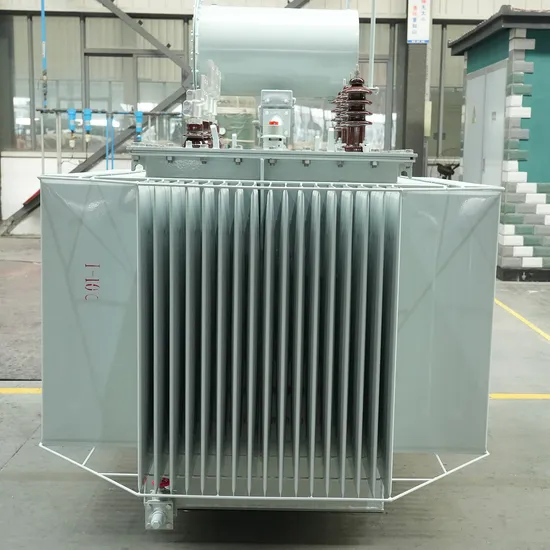

Introducing our high-efficiency oil-immersed transformer, a marvel of energy-saving and environmental stewardship. This cutting-edge transformer harnesses the power of oil as both an insulating and cooling medium, delivering outstanding power conversion capabilities coupled with superior heat dissipation performance. Ideally suited for power transmission and distribution networks, it is expertly engineered to slash energy consumption, bolster grid efficiency, and significantly curb environmental impact. Key Features 1. Energy Efficient: With its optimized design, our transformer profoundly reduces core and coil losses, significantly elevating energy conversion efficiency and dramatically cutting operating energy consumption, making it a pillar of cost-effective power solutions. 2. Low Loss: Forged from high-quality silicon steel sheets and employing state-of-the-art manufacturing techniques, it substantially cuts no-load and load losses. This leads to a major reduction in the overall operating costs of the power system, ensuring economic efficiency and savings. 3. Excellent Heat Dissipation: Through the use of oil as a cooling agent, it proficiently dissipates heat via natural convection or forced oil circulation, ensuring stable operation even under heavy load conditions, thereby prolonging the equipment's lifespan. 4. Environmentally Friendly Design: Fully aligned with both national and international energy-saving and eco-friendly protection standards, it contributes to reducing carbon emissions and environmental pollution, making it the perfect choice for green energy initiatives and modern eco-conscious power grids, advancing a sustainable future. 5. Safe and Reliable: Built with robust insulation materials and precision manufacturing, the transformer guarantees safe and stable operation even in the most challenging grid environments, providing peace of mind and reliability.
Product Parameters

Product Model	Rated Capacity(kVA)	Connection Group	No-Load Loss	Load loss(W)(120°)
S11-M-50/35	50	Yyn0 Dyn11	160	1200/1140
S11-M-100/35	100		230	2010/1910
S11-M-125/35	125		270	2370/2260
S11-M-160/35	160		280	2820/2680
S11-M-200/35	200		340	3320/3160
S11-M-250/35	250		400	3950/3760
S11-M-315/35	315		480	4750/4530
S11-M-400/35	400		580	5740/5470
S11-M-500/35	500		680	6910/6580
S11-M-630/35	630		830	7860
S11-M-800/35	800		980	9400
S11-M-1000/35	1000		1150	11500
S11-M-1250/35	1250		1400	13900
S11-M-1600/35	1600		1690	16600
S11-M-2000/35	2000		1990	19700
S11-M-2500/35	2500		2360	23200

Product Advantages: Our oil-immersed transformer is distinguished by its exceptional attributes.
We offer bespoke customization services to fulfill your unique requirements.
Experience unparalleled insulation and superior heat dissipation performance.
Enjoy the benefits of low no-load losses, diminished noise levels, and an impressively long service life, ensuring enduring performance. Certifications
Company Profile
FAQ 1. What about the lead time?
Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, we arrange the production.
2. Can you do OEM?
Yes, we are 61 years factory,we can provide OEM (Original Equipment Manufacturer) services. We can customize the transformers according to your specifications, including branding, design, and packaging to meet your specific needs. Let us know your requirements, and we'll work with you to deliver a product that aligns with your request. 3. What is your payment terms?
T/T, L/C,Visa Paypal for different circumstances. 4. Do you have inspection procedure before shipping?
Yes,we do 100% QC inspection. 5. Do you offer guarantee for the products?
Yes. We offer at least two years warranty for all of our transformer.
