Hgstar CE FDA 1000W 2000W 3000W 4000W Plates and Pipes Fiber Laser Cutting Machine for Metal Stainless Steel/Carbon Steel/ Aluminum/Copper Sheet Plate Pipe Tube

Product Description

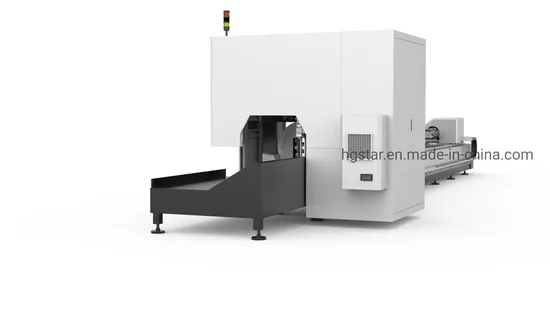

SMART TUBE6015 Laser Tube Cutting Machine
Product Description
SMART TUBE 6015 laser tube cutting machine is manufactured by HGSTAR according to international export standard. This series of equipment is the preferred model for the metal tube processing industry. It has strong cutting capacity, "flying" cutting speed, ultra-high stability, high-quality processing, extremely low operating costs, and super high adaptability.
The SMART TUBE 6015 laser tube cutting machine can perform high-speed, high-quality laser cutting on round tubes, square tubes, rectangular tubes, and oval tubes. The cutting section has no burrs or slag. The cutting shape can be diversified for any shape requirement.
The SMART TUBE 6015 laser tube cutting machine adopts World's highest efficiency and advanced structure, motor gear rack drive, transmission components such as gearbox, guide rails and rack and pinion, which are all well-known foreign brands. It is featured by stable structure, good rigidity, light weight, and high dynamic response. It is a high-performance laser tube cutting machine. Product Parameters

Equipment Model	SMART TUBE6015
Chuck diameter	Φ20mm~Φ230mm
Material type	Carbon steel or round tube, square tube, rectangular tube, oval tube, etc ofstainless steel
Tube feeding length	6000 mm
Maximum blanking length of the tube	1500 mm,3500m(Optional)
Maximum single tube weight	30Kg/m
Laser cutting thickness	Carbon steel 1-10mm (thickness and material are related to laser generator)
Feeding method	Manual
XY Positioning accuracy	±0.05mm
XY repeat positioningaccuracy	±0.03mm
A,W axis	Infinite rotation

Product main configuration list

Item	Specifications and Models
Bed, beam, Z axis box.	Linear Guides: Taiwan TSC, Taiwan Silver Rack: Taiwan APEX
Loading system	Artificial feeding
Loading rack	HGSTAR supporting models
Chuck max size	Φ230mm
Number of chucks	Standard 2 chuck
Laser head	Raytools standard cutting head
Height tracking sensor	BCS100E Height adjuster
CNC system	Cyptube
Servo motor	Yaskawa
Operationsystem	WINDOWS
Monitor	19-inch screen
Control system	Laser tube cutting control system
Control cabinets, consoles, handheld operating units,etc.	HGSTAR supporting models
Laser source	Raycus 1000W
Cooling system	HGSTAR supporting model
Ventilation system	HGSTAR supporting models(No dust removal function)
Gas distribution syste	SMC

laser cutting special function
CNC Control System (Tube Pro FSCUT3000)
>The control system consists of numerical control systems, PLC and control cabinet.etc.
>HGSTAR adopt the control system develop based on TubePro FSCUT3000, dedicated for laser cutting, FSCUT3000, have modular, openness and unity structure, easy to operate, programming, it's a kind of visualization and provide a function for all technology innovation platform.
Handheld Operating Unit
>Integrated digital input, digital output, digital potentiometer signal, MPG, etc.
>Very convenience during worker debugging and operation.
Software generated processing code
>CAD/CAM software can read 3D graphics that transformed from SolidWorks drawings, and can also draw standard tube cutting graphics in CAD/CAM software.
Artificial feeding system
>Manually transport a single tube to the machine bed.
>The sensor on the bed automatically senses the tube and execute the mounting program.
Security Protection Function
>Digital interlocks and safety devices are installed in the laser to ensure that the laser is not turned on for safe operation and maintenance.
>The perimeter of the cutting area is protected to protect the operator from motion system and laser reflections. Feature
Space Leapfrog and Flying Cutting The technology helps to minimize the moving path of cutting head by omitting repeated lift and fall, therefore, cutting speed is improved beyond doubt
Feeding and Guiding Function System can automatically hold and guide the single tube by the main chuck. During the cutting process, the support frame can lift the Chucks are suitable for different tube The chuck canself-center. The tube end does not need to be polished, tube end with burrs is automatically cut after feeding
Cut Conventional Tubes,Profiles and
Special-shaped Tubes TUBE6015 can not only cut conventional tubes like round, square and rectangular tubes, and profiles like channel, angle and H-shaped steels, but also cut special-shaped tubes easily like triangular, concave, L and C-shaped tubes, etc.

Sample
Applicable to cutting carbon steel, stainless steel, aluminum, brass , alloy metals, etc.
After Sales Service

1. Warranty period: From the acceptance qualified date, the warranty period will be 1 (one) year, but in any case, not more than 13 months after B/L date. Seller is responsible to offer free fittings in these years (except consumable part.) Buyer has to send the damaged fitting to sellers. After the warranty, we will also provide favorable service of long term technical supports and spares supply to ensure machine's stable and continuous running.
2. The artificial damage in the warranty period and damage after warranty period, Seller offers paid service.
3. The Seller will give 24 hours service support during warranty time, and giving technical guide by email, telephone, Fax for daily maintenance, if need local support, Buyer has to pay for the travel and
accommodation & meal cost for the people from seller's side, no labor charge require. If products are out of warranty and require on site service, Buyer have to pay for the travel and accommodation & meal cost for the people from seller's side, labor charge is require, USD200/day per people.
4. About the transportation expanses of spare parts will be supported by both parties in the warranty period, like Buyer support the cost of transportation for damage spare part back to supplier; Seller support the new spare part deliver to Buyer.
Service Process
Packaging and shipping
Company Profile
About Us


Certifications



Business Partners:

Exihibition

FAQ:
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact -China HG STAR!
