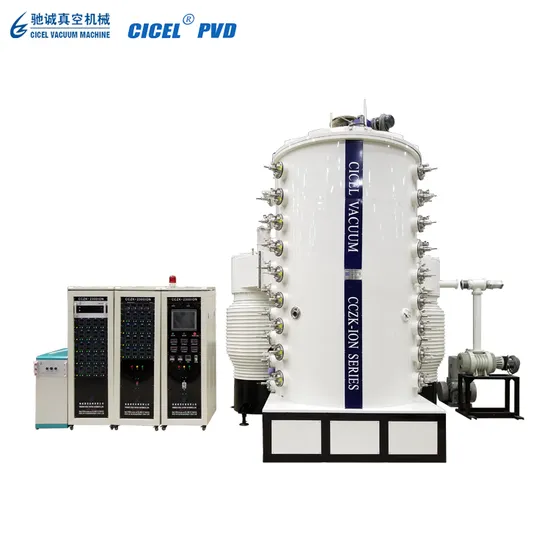

Cicel High Quality PVD Coating Machine for Stainless Steel Sheets
| US$45,000.00-150,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CCZK-ION
Substrate
Steel
Certification
CE, ISO
Condition
New
Machine Type
Stainless Steel Multi-Arc Ion PVD Coating Machine
Chamber Size
Can Be Customized According to Details Requirement
Application
Sanitary Ware,Stainless Steel Plate,Hard Ware,etc
Coating Color
Golden, Rose Gold,Black,Blue,Rainbow Color,etc
Coating Film
Tin, Tic, Ticn, Tialn, Crn, Cu, etc
Sputtering Target
Titanium, Chrome,Zirconium,Titanium Aluminium ,etc
Gas
Nitrogen,Argon,Oxygen,Acetylene
Voltage
380 V or as Request
Package
Wooden Package or as Request
After Sales
Free Training & Oversease After Sales Available
Transport Package
as Request
Specification
CCZK-ION-L
Trademark
CICEL
Origin
Wenzhou China
HS Code
8479899990
Production Capacity
100set/Month
Product Description
CCZK high quality PVD Chrome Coating Machine for stainless steel sheetsPRODUCT DESCRIPTION
| configuration Model | CCZK-2000-ION | CCZK-2200-ION | CCZK-2400-ION | Customized Size is available |
| Chamber size | D2000*H3000mm | D2200*H4000mm | D2400*H5000mm | Customized |
| Vacuum system | Diffusion pump/ + Roots pump + Double stage direct driver Rotary pump + Holding pump + Cryogenic pump(optional) | Customized | ||
| Arc power supply | 7th generation 32sets | 7th generation 40sets | 7th generation 48sets | Customized |
| Arc source | 7th generation 32sets | 7th generation 40sets | 7th generation 48sets | Customized |
| Bias power supply | 50KW | 80KW | 100KW | Customized |
| Gas MFC system | 4-way intake sys | 4-way intake sys | 4-way intake sys | Customized |
| Baking system | Up to 350C | Up to 350C | Up to 350C | Customized |
| Control system | IPC + PLC+HMI Full automatic + Remote control system ( optional) | Customized | ||
| Ultimate vacuum | 5.0*10-4pa | 5.0*10-4pa | 5.0*10-4pa | Customized |
| Total power | 360KW | 455KW | 567KW | Customized |
| Coating Cycle time | Around 15 to 50 mins one cycle ( Depending on the coating film layer of different coating products) | Customized | ||
| Delivery container size | 1set 20FR 1set 40HQ | 1set 20FR 2sets 40HQ | 1set 20FR 3sets 40HQ | Customized |
| Machine installing time | 15days(2engineers) | 20days(2engineers) | 20days(2engineers) | Customized |
