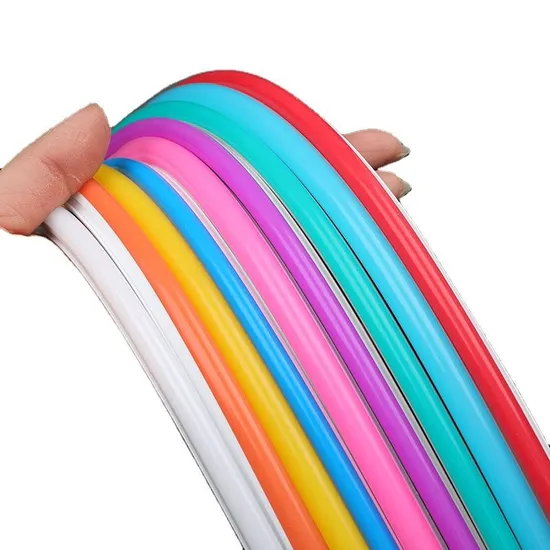

High Quality Neon Light LED Strip 12V 6X12mm Silicone Flex Strip Light Neon LED with CE RoHS Certification

Product Description

High quality Neon light led strip 12V 6x12mm Silicone Flex Strip Light Neon Led With CE ROHS Certification
PRODUCT PARAMETER

Model No.	SC2835B120X3
PCB Width	8MM
LED Quantity	120Leds/M
PCB materials	Double-sided pure copper board
Voltage(V)	12V DC
Rated Power(W)	10W/M
Luminous(lm/m)	2200lm/m
LED Chip Brand	Epistar
LEDs material	99.99% pure gold wire
LEDs Supplier	Honglitronic (For optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	Red/Green/Blue/Pink/Purple/Color Changes
Color Tempertature	6000k
IP Rate	IP67 (IP65/IP20/IP68 optional)
View Angle	120°
Product Size(mm)	8*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	3Leds
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL, CE, RoHS, FCC.
Warranty	1 Year

Explore our extensive LED STRIP LIGHT product list and discover the future of LED lighting:

Item	2835 series	3528 series	COB series	LED Neon	5730 series	High Volt	5050 series	RGB series	RGBW series	Digital LED Strip
						LED Strip
LED Quantity	30/60/120/240	60/ 120	320/ 528	120	30/60	70/120	30/ 60	30/60	60	60
(leds/m)
Power (Watt/m)	6/ 12/ 17/ 23	4.8/ 9.6	2008/10/12	8/ 10/ 12/ 15	7.5/ 15	2011/12/15	7.2/ 14.4	7.2/ 14.4	19	15
Lumen Flux	24-26/26-28	24-26	700-2200	24-26/26-28	50-55/55-60	24-26/ 60-65	24-26	2000-2400Mcd	3000-3500Mcd	1500-1900Mcd
(lm/led)
Size(L*W)mm	5m/reel	5m/reel	5m/reel	0606/0808/1010/	5m/reel	5/10/20/50m/reel	5m/reel	5m/reel	5m/reel	5m/reel
	4/5/8/10/12/15mm width	8/10mm width	8/10mm width	1212/1616/0612/	10mm width	8/10/12mm width	8/10/15mm width	8/10/15mm width	10/12mm width	10mm width
				0613/1018/0410/
Color Temp	2000k, 2500k, 2700k, 3000k, 4000k, 5000k, 5700k, 6500k, 8000k, 12000k
Color	Warm White, Nature White, Cool White, Red, Green, Blue, Yellow, Orange and other option							RGB	RGB+ White	RGB
Working Voltage	DC 12V/24V AC 110V/220V
Protect Grade	IP20,IP65,IP67,IP68
Working Lifespan	>50000Hours
Package	5mts/Reel , 10mts/Reel , 20mts/Reel , 50mts/Reel ,anti-static bag/inner box+outer carton
Packing Qty	20Reel/50Reel/100Reel/200Reel Each Carton
Warranty	3-5years
Certificate	FCC, CE, RoHS, IEC/EN62471, LM-80

FEATURE 1. LED source: 24-26lm/LED high brightness and low decline (less than 3%) after 3000hours working.
2. Modular design: every 1led or 3LEDs or 6LEDs as a module and work independently.
3. Voltage: 5V/12V/24VDC input Voltages can support longer LED strip connection.
4. Working current: 90-95% to keep the lumen efficiency safely
5. FPC size: 8mm/10mm/12mm width FPC and smaller components, LED stripe light is more flexible.
6. Support customized size: you can cut the LED strips into the size you want (support customized length).
7. Dimming support: by manual or IR, be able to adjust the LED stripes brightness.
8. Lifespan: our LED strip 5050 have more than 50000hours working life with 3 years warranty.
9. Easy Installation: 3M tape on the back of strip light and maintenance free.
10. IP rating: our flexible led strip light have different IP level be able to install in any indoor/outdoor environments
(non-waterproof, waterproof)
11. ≤ 15º C temperature rise.
12. 100% aging line test before packing minimizes the possibility of defective products out of the factory.
13. TUV CE, FCC, RoHS, LM-80 and IEC/EN62471 photobiological safety compliant.
LED STRIP APPLICATION
1. Can be used for home lighting,commecial lighting,etc...
2. Architectural lights for canopy, corridor, window, archway.
3. Backlight or edge lighting for signage.
4. DIY lights for home using.
5. Path and contour marking.
6. Decorative lights for holiday, event, show, exhibition.
7. Special light effect for art gallery and glass-made items.
PACKING AND SHIPPING
1. Packaging: 5 meters/roll, box packing (132x132x15mm), 100 rolls per carton
2. Delivery time: Normally about 3-5 working days if less than 2000 meters.
3. Shipping by DHL, FedEx, UPSExpress, or Air Freight and Sea shipment.
AFTER-SALE SERVICE
1.We will send the technical material English version user manual, installation manual and maintenance manual Service
2. Provide free technology support by phone and e-mail
3. We provide training to replace the broken part
4. Two years guarantee: In guarantee period, we provide the free new part for replacing.
