300m Width Web Aligner System for Mask Making Machine

300m Width Web Aligner System for Mask Making Machine

US$800.00-950.00 1 Piece (MOQ)

Basic Info.

Model NO.
PG-300A
Material
Metal
Processing Level
Precision Finishing
Condition
New
After-sales Service
Online Operation Video, Replacement Parts
Working Method
Servo Deviation Rectification
Roller Length
300mm(Different Models Different Roller Length)
Web Width Range
100mm-270mm
Maximum Tension
300n.M
Power Input
AC220V/80W
Maximum Drive Speed
40mm/S
Cirmustance Temperature
-10~60ºC, Below Rh90%
Delivery Time
8-12 Days Based on Different Dimension
Transport Package
Carton Box
Origin
China
HS Code
9032899090
Production Capacity
5000pieces/Year

Product Description

Product Description

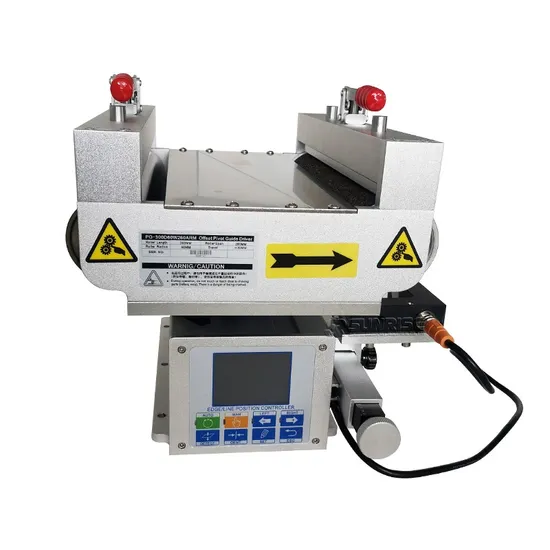

PG-300A Offset Pivot Guide System
All-in-one web guide control system PG Series :
Our Newly developed all-in-one web guide controller is applied to accurate correct the narrow range of materials. Especially for label printing, packaging and non-woven industries. All-in-one web guiding controller is with compact design, easy installation and saving space. Controller, driver and detector are integrated which help user to increase high efficiency during installation and debugging.
Web guide system Product Features:
1. Brushless DC servo motor driving, maintenance free;
2. Accuracy ball screw bar and accuracy positioning;
3. With large guiding travel;
4. Roller length and width can be custom made;
5. Roller surface treatment can be anodized, rubber and cork leather;
6. Manual or air fixture of the cutting station is optional.
PG-300A
Web guide system Specification:
Power supply DC24V~45V, stand 36V
CPU Processor 32-bit CPU main Frequency>72M
Rectification Algorithm No Overshot Integral Variable PI Algorithm
Analog input 3 channel 0~6V, impedance 20K
Sensor voltage DC12V ,350mA Max
Response time 0.5ms
Analog input resolution 12 bit ADC
Switch contacts input 3 channel NPN
Web control mode EPC, LPC, CPC, SPC
Support the sensor type Ultrasonic sensors, photo sensor, CCD sensor
Actuator speed 14mm/s~40mm/s can adjust
Actuator thrust 100Kgf/200Kgf/400Kgf/800Kgf
ESD protective IEC1000-4-2,±15KV(Air),±8KV(Contact)
Screen display 2.8″,260K colors TFT
Motor drive Brushless DC servo motor to drive
Levels of protection Ip53

Drawing
Model No. Roller Length L (mm) Roller Dia. D(mm) Roller Width C (mm) Slide Block Height B (mm) Base Length Y (mm) Web Guide range (degree°) Max. Tension (N)
PG-200A 200 50 230 25 260 ±17 300
PG-250A 250 50 230 25 260 ±17 300
PG-300A 300 60 260 25 310 ±17 300
PG-350A 350 60 260 25 360 ±17 300
PG-400A 400 60 320 35 410 ±17 500
PG-450A 450 60 320 35 460 ±17 500
PG-500A 500 60 320 35 510 ±17 500
PG-600A 600 60 320 35 610 ±17 500

Features
1. Brushless servo motor drive, maintenance-free
2. Precision ball screw, accurate positioning
3. The guiding stroke is large
4. Can be customized guide roller length and span
5. The guide roller can be optionally equipped with a hard anodized coating, rubber layer, wrap cork.
6. Can add the splicing table & clip based on customers' needs,see below picture.

The web guiding system refers to the technical operation adopted by the manufacturer to keep the sides of the coil neat and consistent during spraying, printing, punching, laminating, slitting or other coil winding processes. It is widely used. It has brought great benefits to the industry. Correction control has led to the emergence of industries such as steel, corrugated paper, textile, printing, labeling, labeling, paper, plastic film, building materials, cables, rubber, tires, and non-woven corrugated paper processing. Automatic control.
Application

Order Details
Item Name
PG-300A Offset Pivot Guide
MOQ(Minimum Order Quantity)
1pc
Lead time
3-5 days after receiving the deposit
Calculated Packing Size
50cm*45cm*36cm
Package
Wooden Box
Price Term
EXW,FOB, CIF, etc
Payment term
TT, L/C,Western Union
Country of Origin
China
