Sj60/38 PPR/PE Pipe Machinery Equipment/Plastic Tube Extrusion Machine Production Line

Product Description

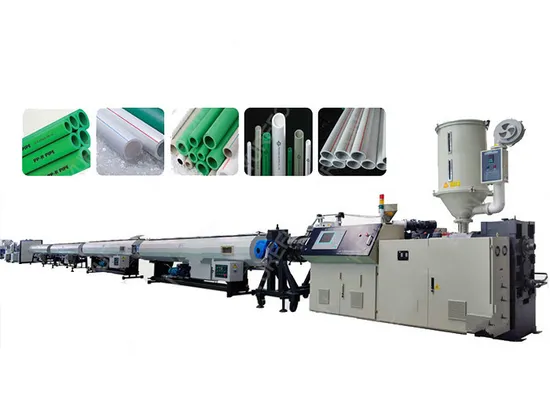

SJ60/38 PPR/PE Pipe Machinery Equipment/Plastic Tube Extrusion Machine Production Line
Introduction:
Multi-Layer pipes are produced by co-extrusion pipe line. The production line is a kind of special craft processes which can save the cost of raw material and make a series of pipes with functional features.
For Example, in order to save the cost of raw material, we can use the recycled material which is to be the middle layer to produce the PE thick wall pipes. For hot water supply pipes, the production line could not only have the PP-R Layer but also increase some other structure Layer including glass fiber, which attach the pipe to some excellent application features.
Extrusion line details:
Single screw extruder machine
The extruder are crafted with top brand components to ensure production stability, efficiency and machine durability.
Mould
The mould design is different from the normal ppr pipe. It has adapter for the co-extrusion for the two single extruders. With long cooling calibrator, the produced product has much better performance.
Vacuum calibration & cooling tank
The vacuum calibration tank adopt two chamber structure: the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless 304 steel. The excellent vacuum system ensures precise sizing for pipes. We lengthen the vacuum and cooling tank to 8m. With much longer cooling process, the CPVC pipe can be well cooled and have better surface.
Haul-off Unit
We adopt three caterpillar on the haul-off machine ensures produced pipe running stably and steady. The haul-off units can make tailored hauling model based on certain production requirement by adjusting the general control.
Cutting Unit
The high accuracy encoder ensures a precise and stable cutting length. With PLC control system, it can be cut by manual operation according to the specific application. Due to the high corrosive feature of the CPVC material, all the surfaces of the cutting unit adopts stainless steel 304. It ensures the working lifetime of the cutting machine.
Parameter:

Model	PPR-63	PPR-110	PP-160
Pipe range (mm)	16-63	16-110	16-160
Extruder model	SJ65/33	SJ60/38	SJ60/38
Output Capacity (kg/h)	200	400	450

CONTACT US:
The UPVC silent pipe is a new and popular product among the pipes. We are much experienced in the UPVC silent pipe production field, if you are interested, pls contact me. I can make tailed solution and send you much working videos of the pipe production. Look forward to your inquiry.

FAQ
Are you a trading company or factory?
We are a factory that produces machines for customers directly. Yes, our production plant can be visited at any time. We are in Zhangjiagang, Jiangsu Province close to Shanghai and Wuxi. If you are near to us, the pick-up service is available.
How to build trust with Langbo We can send working videos showing the machine running perfectly in several countries for online communication. We will provide customer-focused and tailored technical suggestions.

For offline contact, you can visit our factory and talk about the machine face to face, you can find our competence in the field of plastic extrusion and tell our ability in machine building.
Is the shipping cost included in the quotation? Usually, our quotation contains FOB Shanghai as a shipment condition. This means the shipping cost between the delivery and destination ports will not be included in the quotation. The shipping cost fluctuates according to the delivery company and shipping date. Langbo can help customers to get the latest shipping price. Customers decide if we add the shipping cost to the quotation or choose a shipping agent by themselves.

What will happen after order confirmation confirmation of Configuration
Sign of Proforma invoice
30% of total price pre-payment for production starting
Test running in the house, customers on-site or video connecting
Confirmation of machine condition
70% of the total price for delivery preparation
Confirmation of Delivery date
Shipping to customer
On-site commissioning
Training in machine operation and maintenance
Confirmation of handover
One year guarantee
Whole lifecycle service and technical support
What is the Payment Method? T/T, D/P, Letter of credit, Cash transaction
How to guarantee the machine quality made by Langbo We provide one year guarantee and whole-lifecycle technical support for our product. During in-house test running, customers can check the machine on-site. Any point for optimization will be done immediately.
How can customers get the exact machine as they wish? Factory visiting before order
Product sample posting to Langbo for a better understanding of customer's expectations and configuration communication
On-site checking during test running
Do you have CE Certification? Yes. Both our extrusion machine and plastic recycling machine have CE Certification.
What is the delivery time between order confirmation and delivery? Usually 45 days. Depended on the certain project, the exact delivery time will be wrote on contract.
What are services for after-sale One-year quality guarantee.
Quick response for technical support
Problem analysis for production problems
What means one-year quality guarantee After the handover of the machine, Langbo provides free new parts for every non-man-made damage.
How to get the required area of the machine?
For a new plant, you can contact me. (whatsapp) After knowing your demand, I can make the detailed solution and layout of the machine line. Meanwhile, I will provide technical guidance of your installation and specification.
