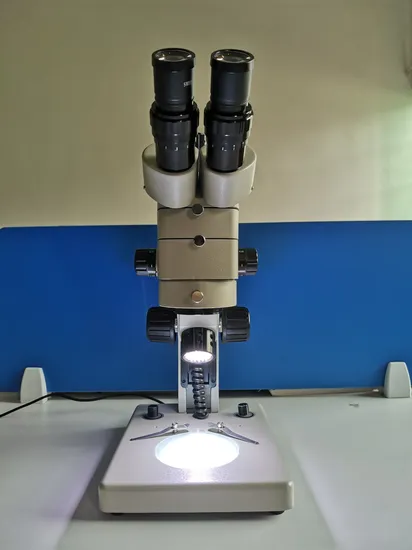

Binocular Zoom Stereo Microscope (XTF-2021)
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
XTF-2021
Magnification
5.5-55X
Type
Stereomicroscope
Number of Cylinder
Binoculars
Mobility
Desktop
Stereoscopic Effect
Stereoscopic Effect
Kind of Light Source
Ordinary Light
Shape
Cylindrical Shaped Lens
Usage
Research
Principle
Optics
Principle of Optics
Polarizing Microscope
Name
Binocular Zoom Stereo Microscope
Model
(Xtf-2021)
Lens Zoom Range
0.55X, 1X, 1.75X, 3X, 5.5X
Eyepiece
Wf10X/23mm
Working Distance
95mm
Total Magnification
5.5X, 10X, 17.5X, 30X, 55X
Field of View
41.8mm, 23mm, 13.1mm, 7.7mm, 4.2mm
Interpupillary Distance
48mm-75mm
Binocular Tube
Inclined 45o
Diopter Adjustment
5 Diopter
Transport Package
Standard Exporting Packing
Specification
SGS
Trademark
Leader
Origin
China
HS Code
9011100000
Production Capacity
10, 000PCS/Year
Product Description
Binocular Zoom Stereo Microscope (XTF-2021)Usage:
This stereo microscope is widely used in medical and health, electronics, precision machinery industry and so on, specially suitable to inspect the naked IC, LCD printing paste, PC
Feature:
1) Zoom lens microscope
2) Parallel Beam Path Design
3) Can connect CCD camera
Standard delivery:
Main unit: 1PCS
Eyepiece patch: 2PCS
Anti-dust cover: 1PCS
Optional accessories for this microscope:
Eyepiece: WF5X, WF15X, WF20X, WF25X, WF30X
Auxiliary lens: 0.5x, 0.75x, 1.5x, 2x
| Technical data | |
| Lens zoom range | 0.55X, 1X, 1.75X, 3X, 5.5X |
| Eyepiece | WF10X/23mm |
| Working distance | 95mm |
| Total magnification | 5.5X, 10X, 17.5X, 30X, 55X |
| Field of view | ¢ 41.8mm, ¢ 23mm, ¢ 13.1mm, ¢ 7.7mm, ¢ 4.2mm |
| Interpupillary distance | 48mm-75mm |
| Binocular tube | inclined 45º |
| Diopter adjustment | ± 5 diopter |
| Binocular body Rotation | 360º |
| Eyepiece | WF10X | WF15X | WF20X | WF25X | |||||
| Auxiliary lens | Magnification | Field of view | Magnification | Field of view | Magnification | Field of view | Magnification | Field of view | Working distance(mm) |
| 0.5X | 2.8X 5X 8.8X 15X 27.5X | ¢ 93.6 ¢ 46 ¢ 26.3 ¢ 15.3 ¢ 8.4 | 4.1X 7.5X 13.1X 22.5X 41.3X | ¢ 58.2 ¢ 32 ¢ 18.3 ¢ 10.7 ¢ 5.8 | 55X 10X 17.5X 30X 55X | ¢ 47.3 ¢ 26 ¢ 14.9 ¢ 8.7 ¢ 4.7 | 6.9X 12.5X 21.9X 37.5X 68.8X | ¢ 43.6 ¢ 24 ¢ 13.7 ¢ 8 ¢ 4.4 | 200 |
| 0.75X | 4.1X 7.5X 13.1X 22.5X 41.3X | ¢ 55.8 ¢ 30.7 ¢ 17.5 ¢ 10.2 ¢ 5.6 | 6.2X 11.3X 19.7X 33.8X 61.9X | ¢ 38.9 ¢ 21.3 ¢ 12.2 ¢ 7.1 ¢ 3.9 | 8.3X 15X 26.3X 45X 82.5X | ¢ 31.5 ¢ 17.3 ¢ 9.9 ¢ 5.8 ¢ 3.2 | 10.3X 18.8X 32.8X 56.3X 103.1X | ¢ 29.1 ¢ 16 ¢ 9.1 ¢ 5.3 ¢ 2.9 | 125 |
| 1X | 5.5X 10X 17.5X 30X 55X | ¢ 41.8 ¢ 23 ¢ 13.1 ¢ 7.7 ¢ 4.2 | 8.3X 15X 26.3X 45X 82.5X | ¢ 29.1 ¢ 16 ¢ 9.1 ¢ 5.3 ¢ 2.9 | 11X 20X 35X 60X 110X | ¢ 23.6 ¢ 13 ¢ 7.4 ¢ 4.3 ¢ 2.4 | 13.8X 25X 43.8X 75X 137.5X | ¢ 21.8 ¢ 12 ¢ 6.9 ¢ 4 ¢ 2.2 | 95 |
| 1.5X | 8.3X 15X 26.3X 45X 82.5X | ¢ 27.9 ¢ 15.3 ¢ 8.8 ¢ 5.1 ¢ 2.9 | 12.4X 22.5X 39.4X 67.5X 123.8X | ¢ 19.4 ¢ 10.7 ¢ 6.1 ¢ 3.6 ¢ 1.9 | 16.5X 30X 52.5X 90X 165X | ¢ 15.8 ¢ 8.7 ¢ 5 ¢ 2.9 ¢ 1.8 | 20.6X 37.5X 65.6X 112.5X 206.3X | ¢ 14.5 ¢ 8 ¢ 4.6 ¢ 2.7 ¢ 1.5 | 55 |
| 2X | 11X 20X 35X 60X 110X | ¢ 20.9 ¢ 11.5 ¢ 6.6 ¢ 3.8 ¢ 2.1 | 16.5X 30X 52.5X 90X 165X | ¢ 14.5 ¢ 8 ¢ 4.6 ¢ 2.7 ¢ 1.5 | 22X 40X 70X 120X 220X | ¢ 11.8 ¢ 6.5 ¢ 3.7 ¢ 2.2 ¢ 1.2 | 27.5X 50X 87.5X 150X 275X | ¢ 10.9 ¢ 6 ¢ 3.4 ¢ 2 ¢ 1.1 | 35 |
