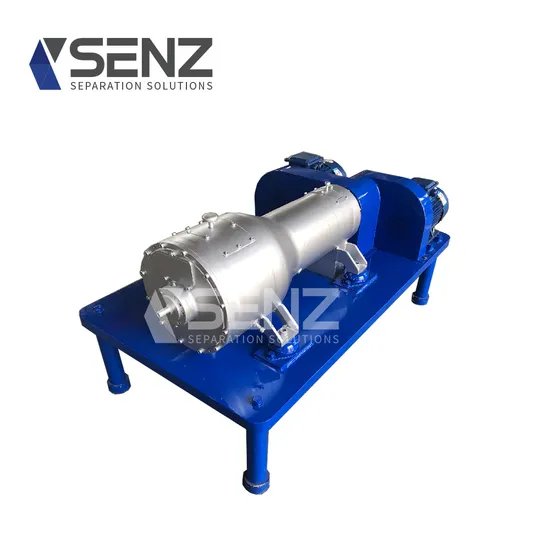

Industrial Scale Lab Use Decanter Centrifuge

Product Description

Product Introduction
This lab decanter centrifuge is specially designed for laboratory two-phase separation process , widely reduce human work .
They are mainly used for small batch continuous processing operations from 1L/H to 200L/H.
Application:
Food and fermentation industry.
Chemical and pharmaceutical industries.
Biotechnology.
Bio energy
Working principle:
The working principle of horizontal screw centrifuge is very simple. The drum and screw are supported by separate suspension, the material is entered by the inlet tube, and the core drum is accelerated by the drum.
Separation process:
The core part consists of a cylinder and a conical rotary drum. The centrifuge forces deposit solid material on the drum wall.
Solid discharge:
The helix and the drum have the same shape and angle, and the rotating speed is slightly faster than the drum, so that the separated solid is pushed to the narrow cone and discharged from the drum. Dehydration degree of solid depends on many factors, besides the reason of material itself, it also depends on the separation time of solid in centrifuge and the helical cone angle of conveying solid. In addition, the difference between helix and drum is also an important factor.
Screw and drum are driven by two independent pulleys, which means that there is no need for mechanical gear differential device, HY-S series centrifuges can be used to determine the maximum separation process parameters and optimize product process.

Structure:
All HY-S series centrifuges are based on compact design and simple operation to ensure that the machine functions and fully meet user requirements. The number of components, including the equipment required for assembly, is maintained.
Keep it to a minimum, so as to ensure that the product assembly time is greatly reduced, in-depth disassembly and assembly can only take 30 minutes, because the HY-S series centrifuge is simple to operate.
The training time for the use of centrifuges is also greatly reduced, only the daily maintenance of centrifuges is needed.

Model	HY60
Bowl Dia	60mm
Cone angle :	5º
Inner diameter of the feeding pipeline :	8mm
Rotation speed	10000r/min
Capacity :	5-200 L/H
Ratio (L:D)	3.75
Motor power	1.5KW 380V
Max separation force :	3300
Weight	120kg
Outline size :	800*500*550mm

Packaging and transportation
Company Profile
FAQ
Q1: Where can I get product & price information?
A1: Send us inquiry or email directly, then we will contact you.
Q2: How can I make sure your machinery is suitable for me?
A2: Please tell all the separation information you know, such as your raw liquid,
two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.
Q3: What should I do if I want to see the separation effect?
A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.
Q4: How to enjoy the OEM services?
A4: As the manufacturer of the machine, we will try our best to satisfy you if you have any specific requirement, such as the cover device, drum size, motor voltage, etc.
