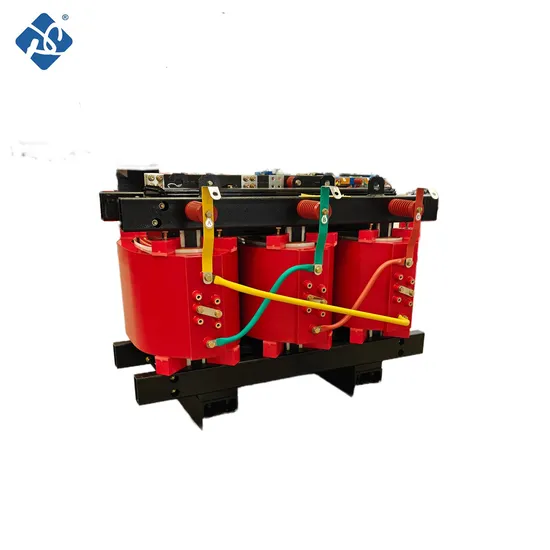

11kv 800kVA/ 500kVA /1500kVA/ 1250 kVA /2500kVA Cast Resin Aluminum Power Distribution Electrical Transformer Dry Type Transformer Price

Product Description

Product Description
11kv 800kVA/ 500kVA /1500kVA/ 1250 kVA /2500kVA Cast Resin Aluminum Power Distribution Electrical Transformer Dry Type Transformer Price Product Description Product Parameters

Transformer Type	Resin Cast Dry Type
Model	SCB10-30
Number of Phase	Three Phase
Winding Type	Two Winding
Winding Material	Aluminum/Copper
Rated Capacity	30kVA
High Voltage	11/10/10/6.6/6.3/6kV
Low Voltage	0.4kV
Tapping Range	±2×2.5%
Impedance Voltage	4%
Load Loss (120°C)	0.71kW
No-load Loss	0.19kW
No-load Current	4.0
Frequency	50Hz
Connection Group	Yyn0/Dyn11
Cooling Method	ANAF
Insulation Class	F
Thermal Class	F1
Protection Level	IP00/IP20/IP23
Climatic Class	C2
Environmental Class	E2
Temperature Rise	100K
Operation Altitude	≤1000m

SC (B) 10 Series Encapsulated Dry-type Power Transformers The dry type power transformer adopts the special technology of European dry type transformers to ensure that the product fully meets the requirements of fireproof, waterproof and environmental protection.
The SC(B) 10 Series optimizes the high-voltage coil structure and improves the voltage and capacitance distribution between layers, enhancing the product's ability to withstand atmospheric overvoltage, working overvoltage, and electric field distribution. This series boasts advantages such as low performance loss, good energy-saving effects, economical operation, and maintenance-free features.
The SC(B) 10 Series is the ideal solution for power distribution systems due to its advanced process structure and high resistance to short-circuits and lightning impacts. It is also flame retardant, moisture-proof, dust-proof, and low-noise, making it suitable for a wide range of applications, including subways, shipbuilding, mines, chemical industries, electric power enterprises, personnel-intensive buildings, and other safety-critical environments.
For customers requiring protection levels of IP20 or IP23, we offer a range of materials including ordinary steel plate, stainless steel plate, and aluminium alloy. Our treatments include pickling, phosphating, spraying, and more, tailored to their specific needs. F-Grade InsulationSC(B) 10 Series power transformers use great materials and new technology to achieve F-grade insulation. It is reliably used in ambient temperatures up to 180ºCand the main part of the transformer can sustain up to 220ºC.SafetySC(B) 10 Series power transformers use insulated materials which is flame retardant and moisture-proof, the combustible material is only 10% of the epoxy resin transformer. There's no poisonous fumes during a long time burning at 800ºC.ReliabilitySC(B) 10 Series power transformers use special coil design and technology to achieve moisture-proof, mould proof and fame proof. It can sustain high thermal shock without partial discharge.Strong Over-load AbilitySC(B) 10 Series power transformer can sustain 120% rated capacity. It can run for a long time under IP23 without forcing air cooling.
Product Parameters
Company Profile
Established in 2013, Xuzhou Pengcheng Electric Co., Ltd. is an innoviative enterprise that specializes in producing, manufacturing, researching and selling power transformers and related products. With a registered capital of RMB80.2 million, Pengcheng covers an area of nearly 80 acres, employs over 300 people, and has more than 100 sets of various manufacturing equipment.Pengcheng has strong technical force, advanced manufacturing technology and complete testing equipment. Xuzhou Pengcheng Electric Co. Mainly produces 6-35KV oil immersed power transformer, 6-35KV resin cast dry type transformer, 10KV non-encapsulated dry type transformer, photovoltaic substation, high overload transformer, amorphous alloy transformer, combined substation.The products have passed the test of the National Energy Saving Product Quality Supervision and Inspection Centre. Pengcheng has obtained IS09001 certification of quality management system and PCCC certification of power certification centre. Pengcheng's sales and service network covers the whole of China and exports to many countries. The company's products are backed by a two-year repair, replacement and refund guarantee for defective products and a lifetime warranty. Pengcheng has always adhered to the principle of "Honesty breeds trust, trust breeds prosperity".With our reliable product quality, competitive pricing, and outstanding after-sales service, we eagerly await your inquiries and the opportunity to collaborate.
Faq Q: What's your MOQ (minimum order quantity)?A: Our MOQ is one set.
Q: What are your packing methods?A: We cover the product with a plastic bag and pack it in a wooden Case.
Q: What's your payment terms?A: Payment terms are T/T 30% in advance & T/T 70% upon sending the copy of Bill of Loading. We also accpet 100% payment via L/C, or can negotiate based on the order status.
Q: What's your delivery time?A: 45-90 days after received the advance payment or L/C.
Q: Are you a manufacturer or trader?A: We have been a manufacturer of Transformers for many years. And our factory has the right to export devices.
Q: Where's your factory?A: Our factory is located in Xuzhou city, which is near Shanghai and Qingdao port, ensuring timely delivery.
Q: Can we visit your factory?A: Welcome. Once we have your schedule, we will arrange for professional staff to follow up on your case.
