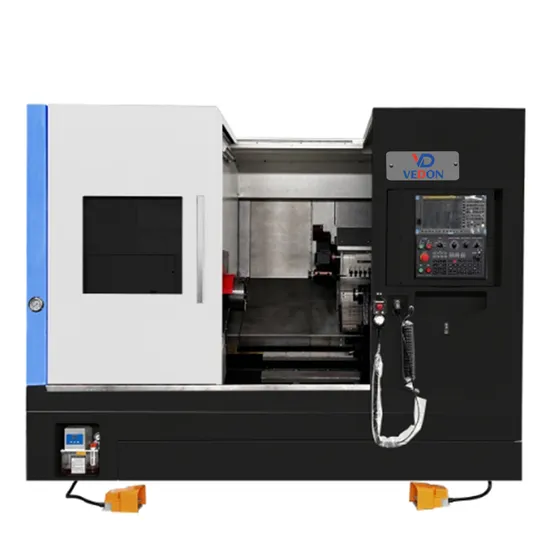

Vedon Tck600dy Turning Machine Slant Bed Lathe for Mechanical Processing Metal Lathe Machine

Product Description

Overview
TCK600 series:
The TCK600 series is a medium to large horizontal turning center with a maximum machining length of 1.5 meters. It is designed for machining large pipes and shafts for a wide range of applications in the oil and gas, aerospace and construction machinery industries.
High Steel Construction
The 45° inclined bed structure and the full-axis 45 mm roller guideway ensure high rigidity and stability.
Efficient
The turret is driven by a high-efficiency servo motor, which is suitable for heavy-duty cutting, effectively shortening non-cutting time and improving machining efficiency.
Main spindle
The spindle housing is made of high-density cast iron with reinforcement cast on the outer side to enhance robustness, and double-row roller bearings ensure high steel and high efficiency in transmitting power to the spindle.
Chuck Power turret with Y axis
Standard: A2-8 Spindle unit,10 inch hydraulic chuck 12 station power turret Optional: A2-11 spindle, 105mm bore ,12inch hydraulic chuck with 90° ,0° living tools
Tailstock Magnetic ring encoder
Standard hydraulic Tailstock High precision magnetic ring encoder
Distance center Air-conditioning
Taiwan HlWIN linear rail Electrical cabinet air conditioner Optional Configuration
Renishaw HAMA Tool set Hydraulic center frame
/Servo center frame
Servo hydraulic programmable tailstock Servo bar feeder cabinet
Specifications

Basic parameter configuration
Processing range
Max. swing over bed	mm	Φ670
Max.swing over slide	mm	Φ450
Max.turning diameter	mm	Φ400
Center distance	mm	1100/1600
Spindle
Spindle head type	/	A2-8/A2-11
Spindle through-hole diameter	mm	Φ88/Φ105/Φ132
Bar capacity	mm	Φ74/Φ91/Φ115
Max.spindle speed	rpm/min	3000/2500/1800
Rated output of the main motor	kw	15
Max.spindle output torque	NM	300
Spindle transmission form	/	Timing belt
Chuck
Hydraulic chuck	inch	10/12/15
Tailstock
Tailstock sleeve	/	MT5 internal rotation
Tailstock movement form	/	Hydraulically programmable tailstock
Lathe bed
Tilt angle	DEG	45°
X-axis travel	mm	315
Z-axis travel	mm	1100/1600
X/Z fast moving speed	m/min	16/24
Turret
Servo hydraulic	/	BMT55
Adjacent tool change times	s	0.5
Number of station	/	12
Tool size(turning/boring)	mm	32x32/Φ40(50)
Spring chuck	/	ER40
Driven power	kw	2.3
Y-axis travel	mm	±50
Out size
1.0m	7500kg	5100*2300*2550mm
1.5m	9500kg	5600*2300*2550mm
