16 Paddles Wheel Aerator 5HP

Product Description

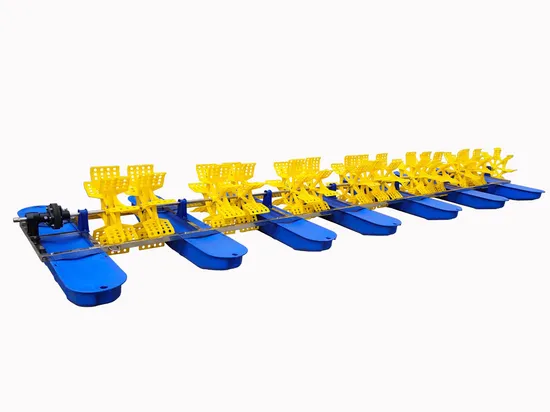

Paddle Wheel Aerator (16 Impellers, 7 floating boats,5HP)

Working Principle

High-speed-working impellers splash the water into the air → these splashing

water mix the oxygen in the air and be brought into the water → the dissolvedoxygen in the water increase.


The working impellers produce waves and currents → make the saturated ammounia, CO2, methane, sulfureted hydrogen, etc. go out of the water → the water quality improved.
Function
Shrimp, fish, eel and other aqua animals can grow up quickly and healthly and can

be avoided to die because of lack of enough disssolved oxygen in the water, meantime, can be farmed in high density with steady output.


Advantages
A: High efficiency of oxygen transfering

B: Low use cost as for the advantages of energy-saving, long durability and easy

maintenance

C: Suitable for various farming of aquaculture products such as fish, shrimp, crab, etc.

D: Motor: Good paint cast iron body motor, high efficiency, steady performance,
Reducer: High efficiency and compact strcture
Impeller: 100% new PP material made
Floating Boat: 100% new HDPE material made
Transmission Shaft: 304# Stainless steel
Frame: 304# Stainless steel

Model No.	S-5HP
Horse Power	5HP
Voltage	220V/380V
Electric Phase	5PH
Frequency	50HZ/60HZ
Number of Impeller	12
External Dimension	175*325*90(cm)
Loading Volume	2M³
Motor	Cast Iron Body With Auto Cooling
Reducer	Gear Style Reducer
Impeller	HDPE Integrated Copper Sleeve
Movable Joint	Half Assemble
Transmission Shaft	SUS 304 SS Sleeve With Steel Core
Supporting Bearing	2 in 1
Float	Virgin HDPE(3pc.)
Shaft Frame	SUS 304 Frame
PE Cover	Virgin HDPE
